9YF8 | pdb_00009yf8

N4 Full Virion Portal

  • Classification: VIRAL PROTEIN
  • Organism(s): Escherichia phage N4
  • Mutation(s): No

  • Deposited: 2025-09-25 Released: 2025-12-24
  • Deposition Author(s): Bellis, N.F., Cingolani, G.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structure of the giant RNA polymerase ejected from coliphage N4.

Bellis, N.F.Lokareddy, R.K.Pavlenok, M.Horton, S.L.C.Kizziah, J.L.Forti, F.Schneider, D.A.Niederweis, M.Briani, F.Cingolani, G.

(2025) Res Sq

  • DOI: https://doi.org/10.21203/rs.3.rs-7746245/v1
  • Primary Citation of Related Structures:
    9PNQ, 9PNR, 9PNT, 9PNV, 9PNW, 9YF5, 9YF8

  • PubMed Abstract:

    Schitoviruses are widespread prokaryotic viruses that encapsidate a giant (~3,500-residue) virion-associated RNA polymerase (vRNAP). During infection, vRNAP is expelled into Gram-negative bacteria, along with two additional ejection proteins, to assemble a transient DNA-ejectosome that becomes transcriptionally active, initiating viral replication. Here, we present an integrative structural analysis of the coliphage N4 vRNAP (gp50). We find that this 383 kDa enzyme is a multi-domain, single-chain RNA polymerase, structurally distinct from both compact single-chain RNAPs and large multi-subunit holoenzymes. vRNAP is composed of loosely connected domains and exhibits an intramolecular mode of allosteric regulation through its C-terminal domain. Comparative analysis of intact and genome-released virions identified gp51, which forms an outer-membrane complex, and gp52, which assembles a periplasmic tunnel. These proteins generate heterogeneous pores that facilitate the release of vRNAP. We further uncover a signaling hub in the phage tail, composed of the receptor-binding protein, tail tube, and tail plug, that detects receptor engagement and orchestrates the release of ejection proteins. We propose that the beads-on-a-string architecture of vRNAP enables the translocation of megadalton-scale protein complexes through the ~35 Å channel formed by the tail and ejection proteins. These findings establish N4 as a distinctive model for protein translocation through biological channels.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

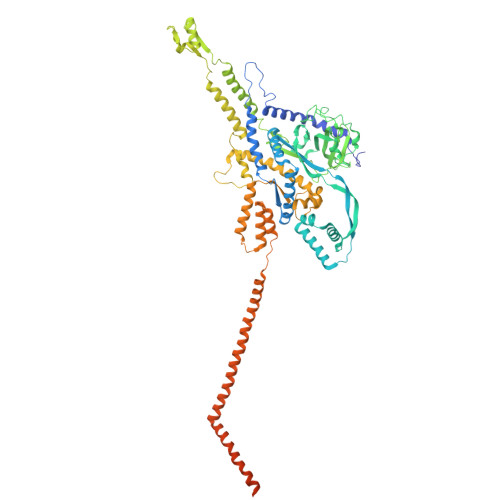

Probable portal protein763Escherichia phage N4Mutation(s): 0
UniProt
Find proteins for A0MZE1 (Enterobacteria phage N4)
Explore A0MZE1
Go to UniProtKB:  A0MZE1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0MZE1
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.1_5286:
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM140733

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
