9V2L | pdb_00009v2l

Complex structure of 2014-422 spike RBD bound to human DPP4

PDB DOI: https://doi.org/10.2210/pdb9V2L/pdb
EM Map EMD-64732: EMDB EMDataResource

Classification: VIRAL PROTEIN/HYDROLASE
Organism(s): Middle East respiratory syndrome-related coronavirus, Homo sapiens
Expression System: Trichoplusia ni, Homo sapiens
Mutation(s): No

Deposited: 2025-05-20 Released: 2025-12-24
Deposition Author(s): Wang, X., Lin, Z.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9V2L

This is version 1.0 of the entry. See complete history.

Literature

Complex structure of 2014-422 spike RBD bound to human DPP4

Wang, X., Lin, Z.

To be published.

Macromolecule Content

Total Structure Weight: 196.09 kDa
Atom Count: 13,652
Modeled Residue Count: 1,657
Deposited Residue Count: 1,677
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

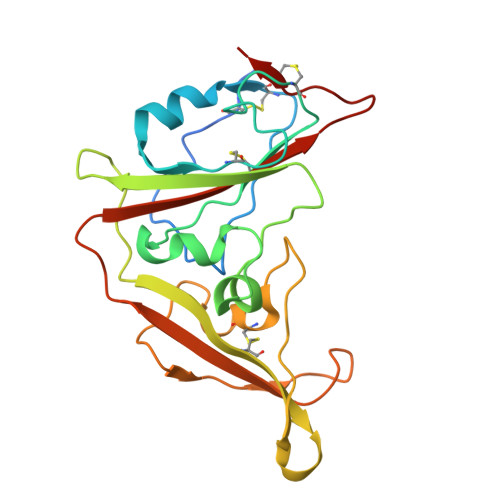

Spike glycoprotein	A	223	Middle East respiratory syndrome-related coronavirus	Mutation(s): 0
UniProt
Find proteins for A0A2R4KP93 (Middle East respiratory syndrome-related coronavirus) Explore A0A2R4KP93 Go to UniProtKB: A0A2R4KP93
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A2R4KP93
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Dipeptidyl peptidase 4 soluble form	B, C	727	Homo sapiens	Mutation(s): 0 Gene Names: DPP4, ADCP2, CD26 EC: 3.4.14.5
UniProt & NIH Common Fund Data Resources
Find proteins for P27487 (Homo sapiens) Explore P27487 Go to UniProtKB: P27487
PHAROS: P27487 GTEx: ENSG00000197635
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P27487
Glycosylation
Glycosylation Sites: 7	Glycosylation Focus chain B Focus chain C	Go to GlyGen: P27487-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, E, F	2		N-Glycosylation	Interactions Focus chain D Focus chain E Focus chain F Interactions & Density Focus chain D Focus chain E Focus chain F
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain G [auth B] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth C] SDF format, chain L [auth C] SDF format, chain M [auth C] MOL2 format, chain G [auth B] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth C] MOL2 format, chain L [auth C] MOL2 format, chain M [auth C] mmCIF format, chain G [auth B] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth C] mmCIF format, chain L [auth C] mmCIF format, chain M [auth C]	G [auth B] H [auth B] I [auth B] J [auth B] K [auth C] G [auth B], H [auth B], I [auth B], J [auth B], K [auth C], L [auth C], M [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain G [auth B] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth C] Focus chain M [auth C] Interactions & Density Focus chain G [auth B] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth C] Focus chain M [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.18.2_3874:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-24

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-12-24
Type: Initial release
