9SH9 | pdb_00009sh9

Thermus thermophilus asparaginyl-tRNA synthetase dimer with bound ATP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.95 Å
  • R-Value Free:
    0.228 (Depositor), 0.234 (DCC)
  • R-Value Work:
    0.204 (Depositor), 0.208 (DCC)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

The crystal structure of asparaginyl-tRNA synthetase from Thermus thermophilus and its complexes with ATP and asparaginyl-adenylate: the mechanism of discrimination between asparagine and aspartic acid.

Berthet-Colominas, C.Seignovert, L.Haertlein, M.Grotli, M.Cusack, S.Leberman, R.

(1998) EMBO J 17: 2947-2960

  • DOI: https://doi.org/10.1093/emboj/17.10.2947
  • Primary Citation of Related Structures:
    9SH8, 9SH9

  • PubMed Abstract:

    The crystal structure of Thermus thermophilus asparaginyl-tRNA synthetase has been solved by multiple isomorphous replacement and refined at 2.6 A resolution. This is the last of the three class IIb aminoacyl-tRNA synthetase structures to be determined. As expected from primary sequence comparisons, there are remarkable similarities between the tertiary structures of asparaginyl-tRNA synthetase and aspartyl-tRNA synthetase, and most of the active site residues are identical except for three key differences. The structure at 2.65 A of asparaginyl-tRNA synthetase complexed with a non-hydrolysable analogue of asparaginyl-adenylate permits a detailed explanation of how these three differences allow each enzyme to discriminate between their respective and very similar amino acid substrates, asparagine and aspartic acid. In addition, a structure of the complex of asparaginyl-tRNA synthetase with ATP shows exactly the same configuration of three divalent cations as previously observed in the seryl-tRNA synthetase-ATP complex, showing that this a general feature of class II synthetases. The structural similarity of asparaginyl- and aspartyl-tRNA synthetases as well as that of both enzymes to the ammonia-dependent asparagine synthetase suggests that these three enzymes have evolved relatively recently from a common ancestor.


  • Organizational Affiliation
    • European Molecular Biology Laboratory, Grenoble Outstation, Grenoble, France.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

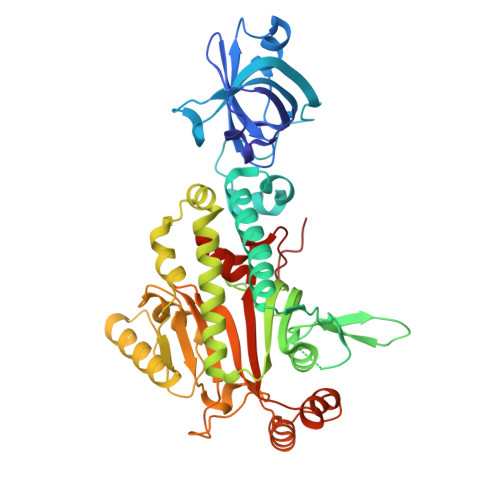

Asparagine--tRNA ligase
A, B
438Thermus thermophilus HB8Mutation(s): 0
Gene Names: asnSTTHA0708
EC: 6.1.1.22
UniProt
Find proteins for P54263 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore P54263
Go to UniProtKB:  P54263
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP54263
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP (Subject of Investigation/LOI)
Query on ATP

Download Ideal Coordinates CCD File
F [auth A],
J [auth B]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
C [auth A]
D [auth A]
E [auth A]
G [auth B]
H [auth B]
C [auth A],
D [auth A],
E [auth A],
G [auth B],
H [auth B],
I [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.95 Å
  • R-Value Free:  0.228 (Depositor), 0.234 (DCC)
  • R-Value Work:  0.204 (Depositor), 0.208 (DCC)
Space Group: P 65 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 124.954α = 90
b = 124.954β = 90
c = 246.821γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
SCALAdata scaling
AMoREphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentFrance--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-17
    Type: Initial release
