9Q7W | pdb_00009q7w

One of a series of engineered variants of I-OnuI meganuclease targeting altered DNA target sequence

• PDB DOI: https://doi.org/10.2210/pdb9Q7W/pdb
• NAKB: 9Q7W

• Classification: DNA BINDING PROTEIN
• Organism(s): synthetic construct
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-08-25 Released: 2025-09-10
• Deposition Author(s): Werther, R., Stoddard, B.L.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.54 Å
• R-Value Free:
  0.266 (Depositor), 0.266 (DCC)
• R-Value Work:
  0.213 (Depositor), 0.214 (DCC)
• R-Value Observed:
  0.218 (Depositor)

Starting Model: experimental

Literature

Prediction, modeling and design of protein-DNA recognition via computational and machine learning approaches: accomplishments and remaining challenges

Esler, M.A., Werther, R., Bradley, P., Stoddard, B.L.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 50.74 kDa
• Atom Count: 3,336
• Modeled Residue Count: 345
• Deposited Residue Count: 352
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

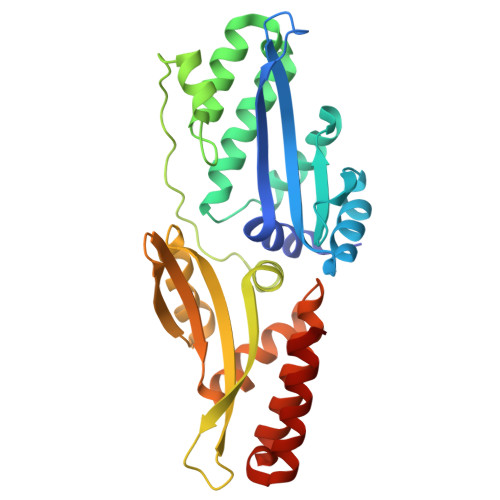

Ribosomal protein 3/homing endonuclease-like protein fusion	A	300	synthetic construct	Mutation(s): 0  Gene Names: HEG fusion, rps3
UniProt
Find proteins for Q4VWW5 (Ophiostoma novo-ulmi subsp. americana) Explore Q4VWW5  Go to UniProtKB:  Q4VWW5

Entity ID: 2
Molecule	Chains	Length	Organism	Image

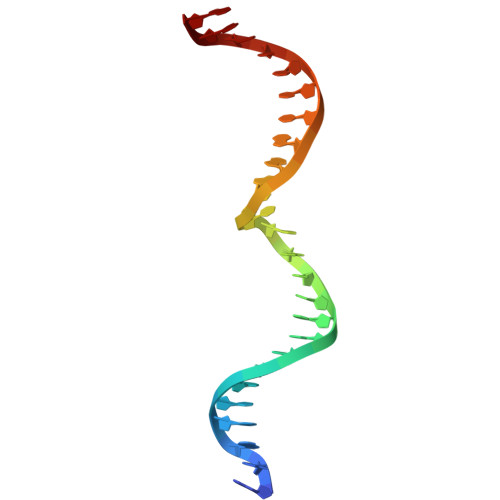

DNA (26-MER)	B	26	synthetic construct

Entity ID: 3
Molecule	Chains	Length	Organism	Image

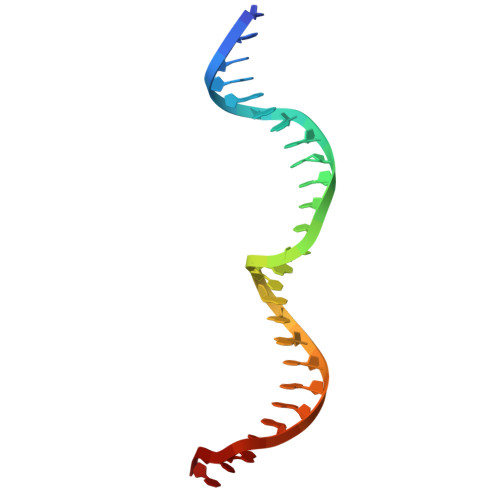

DNA (26-MER)	C	26	synthetic construct

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
GOL	H [auth B], I [auth B]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
EDO	F [auth A], G [auth B]	1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N
CA	D [auth A], E [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.54 Å
• R-Value Free:  0.266 (Depositor), 0.266 (DCC)
• R-Value Work:  0.213 (Depositor), 0.214 (DCC)
• R-Value Observed: 0.218 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 39.224	α = 90
b = 70.489	β = 90
c = 166.859	γ = 90

Software Package:

Software Name	Purpose
HKL-2000	data scaling
PHASER	phasing
PHENIX	refinement
PDB_EXTRACT	data extraction
HKL-2000	data reduction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-09-10
Deposition Author(s): Werther, R., Stoddard, B.L.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01 GM139752
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01 GM105691
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35 GM148166

Revision History

• Version 1.0: 2025-09-10
  Type: Initial release
