9PY7 | pdb_00009py7

Hamster Scap L1-L7 domain/Fab4G10 focused map

• PDB DOI: https://doi.org/10.2210/pdb9PY7/pdb
• EM Map EMD-72012: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Mus musculus, Cricetulus griseus
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2025-08-07 Released: 2025-12-24
• Deposition Author(s): Williams, B.C., Kober, D.L., Bai, X., Radhakrishnan, A., Rosenbaum, D.M.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.80 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Hamster Scap L1-L7 domain/Fab4G10 focused map

Williams, B.C., Kober, D.L., Bai, X., Radhakrishnan, A., Rosenbaum, D.M.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 3-mer - A2B1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 197.26 kDa
• Atom Count: 4,348
• Modeled Residue Count: 537
• Deposited Residue Count: 1,793
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

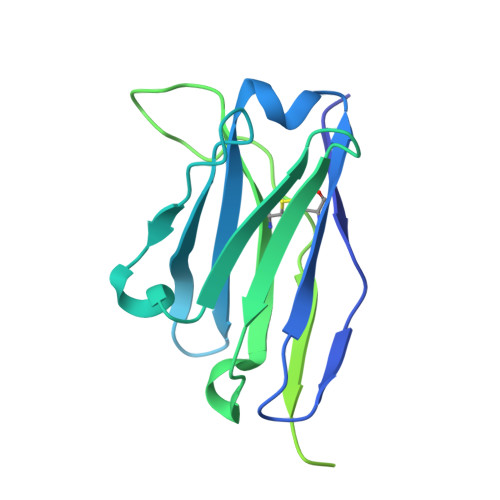

Fab4G10 heavy chain	A [auth H]	252	Mus musculus	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

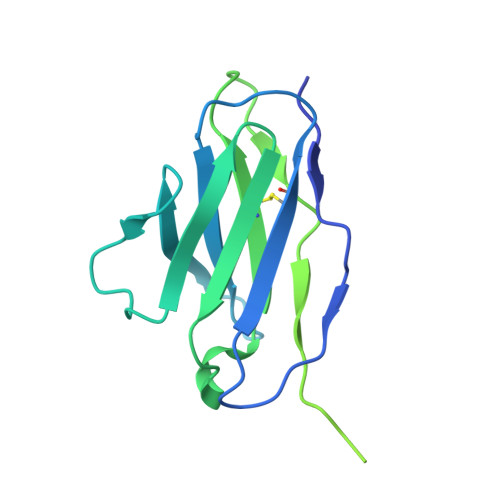

Fab4G10 light chain	B [auth L]	229	Mus musculus	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

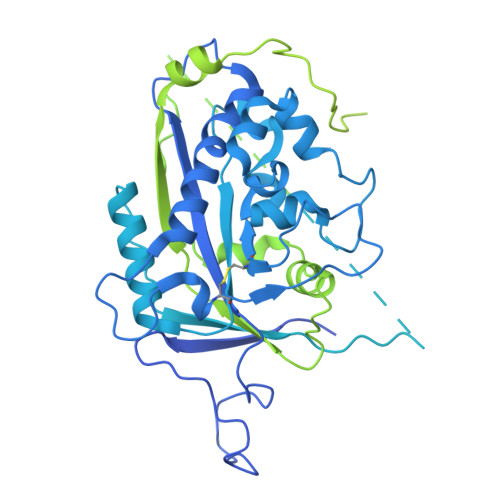

Sterol regulatory element-binding protein cleavage-activating protein	C [auth A]	1,312	Cricetulus griseus	Mutation(s): 8  Gene Names: SCAP
UniProt
Find proteins for P97260 (Cricetulus griseus) Explore P97260  Go to UniProtKB:  P97260
Glycosylation
Glycosylation Sites: 2

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D [auth B]	2		N-Glycosylation
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG (Subject of Investigation/LOI)	E [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.80 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-12-24
Deposition Author(s): Williams, B.C., Kober, D.L., Bai, X., Radhakrishnan, A., Rosenbaum, D.M.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM116387
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	P01HL160487
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	R01AI158357

Revision History

• Version 1.0: 2025-12-24
  Type: Initial release
