9PV5 | pdb_00009pv5

10E8-GT10.2 immunogen in complex with Rhesus macaque Fab W3-05 and mouse Fab W6-03

• PDB DOI: https://doi.org/10.2210/pdb9PV5/pdb
• EM Map EMD-71883: EMDB EMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): synthetic construct, Mus musculus, Macaca mulatta
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2025-08-01 Released: 2025-12-10
• Deposition Author(s): Huang, J., Ward, A.B.
• Funding Organization(s): Bill & Melinda Gates Foundation, National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.90 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Decipher antibody responses primed with scaffolds harboring the germline-targeting HIV Env MPER epitope by cryoEM

Huang, J.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 5-mer - A4B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 70.93 kDa
• Atom Count: 4,963
• Modeled Residue Count: 630
• Deposited Residue Count: 635
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

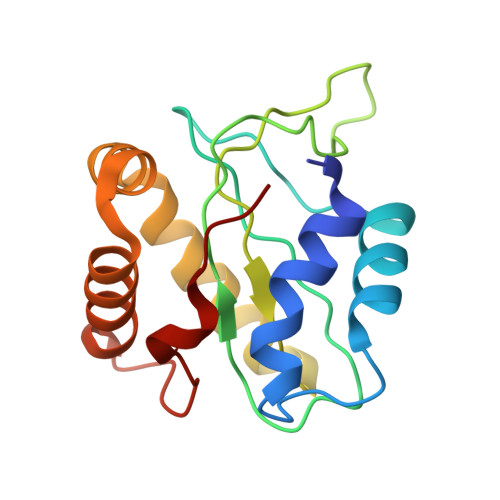

10E8-GT10.2 immunogen	A [auth C]	157	synthetic construct	Mutation(s): 0
Glycosylation
Glycosylation Sites: 1

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

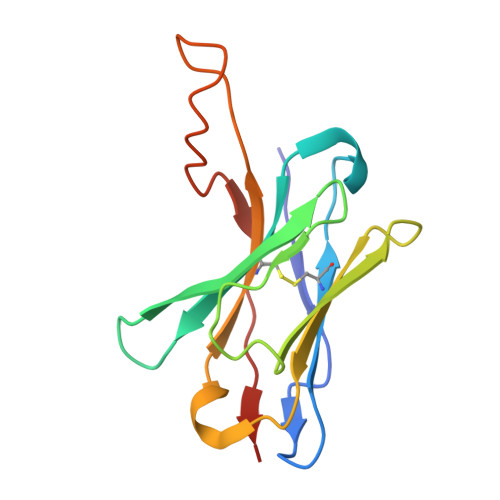

W6-03 mouse Fab heavy chain	B [auth H]	127	Mus musculus	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

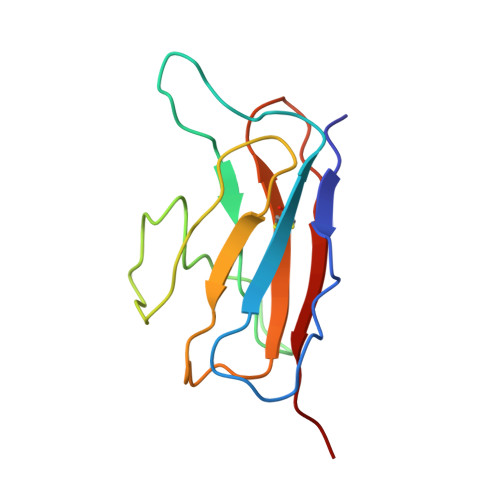

W6-03 mouse Fab light chain	C [auth L]	113	Mus musculus	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

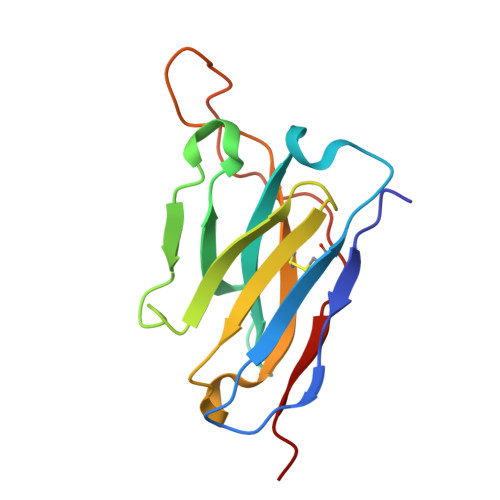

W3-05 rhesus macaque Fab heavy chain	D [auth A]	130	Macaca mulatta	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

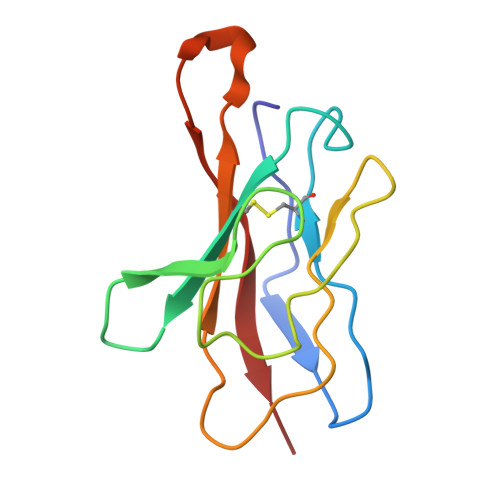

W3-05 rhesus macaque Fab light chain	E [auth B]	108	Macaca mulatta	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	F [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.90 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-10
Deposition Author(s): Huang, J., Ward, A.B.

---

Funding Organization	Location	Grant Number
Bill & Melinda Gates Foundation	United States	INV-002916
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	UM1 AI144462

Revision History

• Version 1.0: 2025-12-10
  Type: Initial release
