9NLE | pdb_00009nle

E. coli initiation complex with EQ2-EttA in Hydrolytic 1 conformation

• PDB DOI: https://doi.org/10.2210/pdb9NLE/pdb
• NAKB: 9NLE
• EM Map EMD-29398: EMDB EMDataResource

• Classification: RIBOSOME
• Organism(s): Escherichia coli
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-03-03 Released: 2025-04-02
• Deposition Author(s): Singh, S., Hunt, J.F.
• Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.20 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

ABCF PtIM positioning affects tRNA dynamics

Hunt, J.F., Singh, S.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 51-mer - A1B1C1D1E1F1G1H1I1J1K1L1M1N1O1P1Q1R1S1T1U1V1W1X1Y1Z1a1b1c1d1e1f1g1h1i1j1k1l1m1n1o1p1q1r1s1t1u1v1w1x1y1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 51-mer - A2B1C1D1E1F1G1H1I1J1K1L1M1N1O1P1Q1R1S1T1U1V1W1X1Y1Z1a1b1c1d1e1f1g1h1i1j1k1l1m1n1o1p1q1r1s1t1u1v1w1x1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 2,231.58 kDa
• Atom Count: 150,106
• Modeled Residue Count: 11,093
• Deposited Residue Count: 11,093
• Unique protein chains: 51
• Unique nucleic acid chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

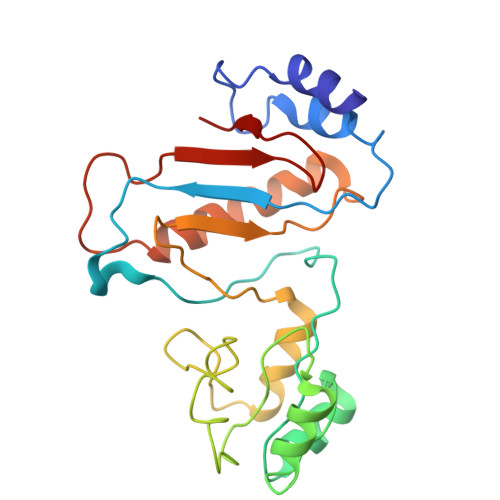

Large ribosomal subunit protein uL1	A [auth 1]	220	Escherichia coli	Mutation(s): 0  Gene Names: rplA, b3984, JW3947
UniProt
Find proteins for P0A7L0 (Escherichia coli (strain K12)) Explore P0A7L0  Go to UniProtKB:  P0A7L0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

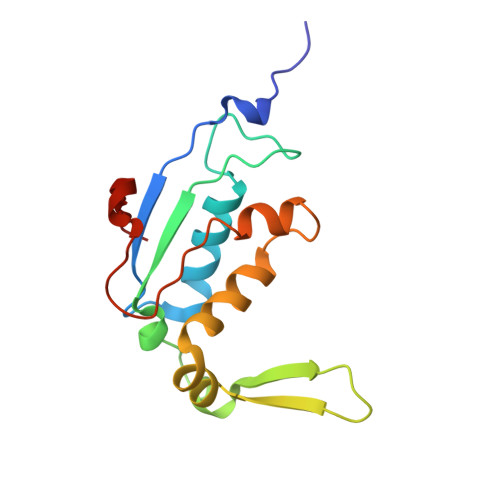

Large ribosomal subunit protein uL13	B [auth 13]	142	Escherichia coli	Mutation(s): 0  Gene Names: rplM, b3231, JW3200
UniProt
Find proteins for P0AA10 (Escherichia coli (strain K12)) Explore P0AA10  Go to UniProtKB:  P0AA10

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L14	C [auth 14]	122	Escherichia coli	Mutation(s): 0  Gene Names: rplN, A13A_03633
UniProt
Find proteins for P0ADY3 (Escherichia coli (strain K12)) Explore P0ADY3  Go to UniProtKB:  P0ADY3

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L15	D [auth 15]	143	Escherichia coli	Mutation(s): 0  Gene Names:  rplO, A8C65_19395, A9R57_24660, ACU57_21045, AM464_09135, AUQ13_22145, BHS87_18545, BJJ90_02210, BUE81_25610, BW690_10710, BZL31_22885, C5N07_23575, C9E25_20065, CA593_09735, CG692_20270, D0X26_24495, DNQ41_22370, DTL43_21000, EC1094V2_354, EC3234A_55c00230, EL75_0396, EL79_0415, EL80_0407, ERS085365_03907, ERS085416_03881, ERS139211_03685, ERS150873_04051, NCTC11022_03475, NCTC11126_02772, NCTC13462_04101, NCTC9010_00498, NCTC9037_00664, NCTC9045_00567, NCTC9062_02686, NCTC9117_00757, NCTC9706_02738, RK56_021420, SAMEA3472047_03862, SAMEA3472067_03530, SAMEA3472080_04748, SAMEA3484427_04887, SAMEA3484429_04875, SAMEA3484433_04924, SAMEA3752559_00346, SAMEA3753106_04635, SAMEA3753300_02227, SAMEA3753391_02957, SAMEA3753397_02423
UniProt
Find proteins for P02413 (Escherichia coli (strain K12)) Explore P02413  Go to UniProtKB:  P02413

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

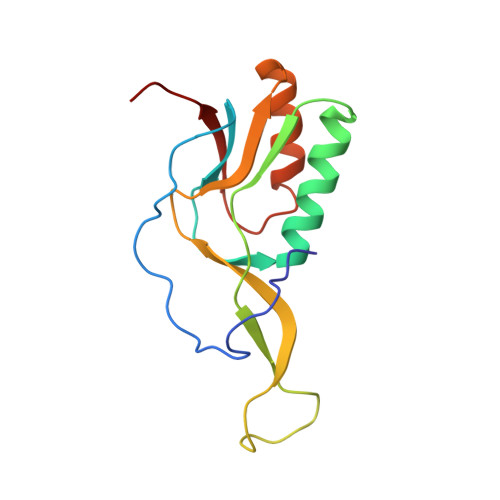

50S ribosomal protein L16	E [auth 16]	136	Escherichia coli	Mutation(s): 0  Gene Names: rplP, b3313, JW3275
UniProt
Find proteins for P0ADY7 (Escherichia coli (strain K12)) Explore P0ADY7  Go to UniProtKB:  P0ADY7

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

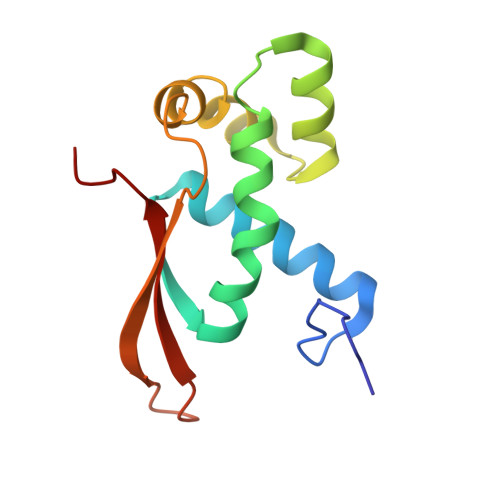

Large ribosomal subunit protein bL17	F [auth 17]	120	Escherichia coli	Mutation(s): 0  Gene Names: rplQ, b3294, JW3256
UniProt
Find proteins for P0AG44 (Escherichia coli (strain K12)) Explore P0AG44  Go to UniProtKB:  P0AG44

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

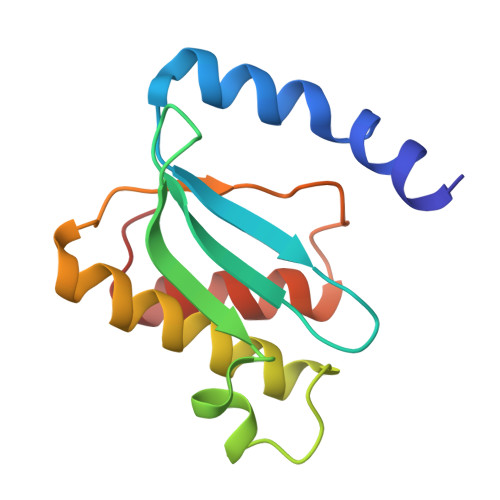

Large ribosomal subunit protein uL18	G [auth 18]	116	Escherichia coli	Mutation(s): 0  Gene Names: rplR, b3304, JW3266
UniProt
Find proteins for P0C018 (Escherichia coli (strain K12)) Explore P0C018  Go to UniProtKB:  P0C018

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

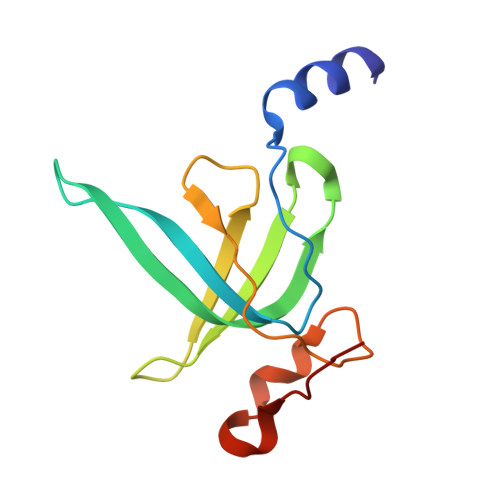

50S ribosomal protein L19	H [auth 19]	114	Escherichia coli	Mutation(s): 0  Gene Names: rplS, A13A_02795
UniProt
Find proteins for P0A7K6 (Escherichia coli (strain K12)) Explore P0A7K6  Go to UniProtKB:  P0A7K6

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

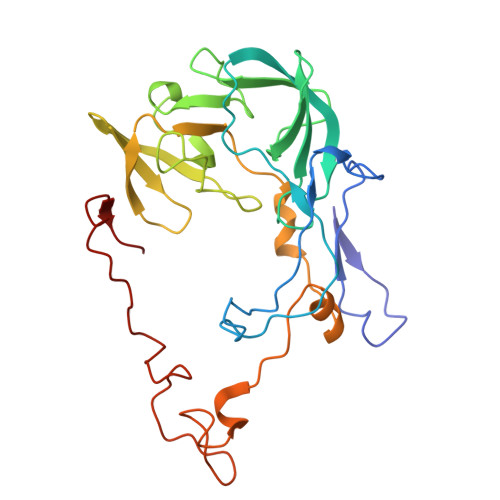

50S ribosomal protein L2	I [auth 2]	271	Escherichia coli	Mutation(s): 0  Gene Names: rplB, b3317, JW3279
UniProt
Find proteins for P60422 (Escherichia coli (strain K12)) Explore P60422  Go to UniProtKB:  P60422

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

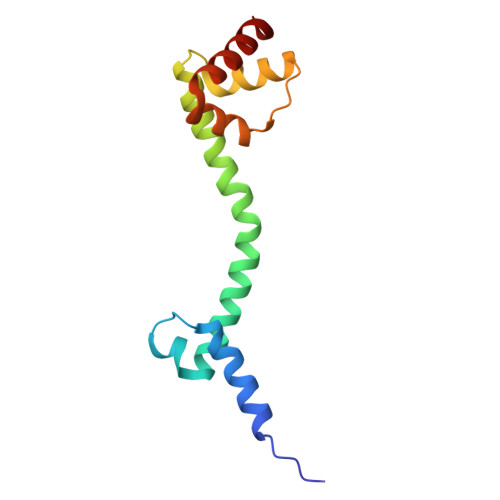

Large ribosomal subunit protein bL20	J [auth 20]	117	Escherichia coli	Mutation(s): 0  Gene Names:  rplT, A5U30_001023, A6592_07370, A8499_000975, A8502_003610, A9X72_11350, AC065_06085, ACN81_10675, ACU57_21960, AM464_26495, APX88_07100, AW118_00790, AWP47_09585, B6R12_002312, B6R15_001937, B6R17_001491, B6R31_000298, B6R48_000298, B6R87_000298, BANRA_02351, BB540_20375, BER14_00780, BF481_000135, BG944_000167, BGM66_002498, BHS81_10545, BJI68_18110, BJJ90_13770, BK292_18200, BK383_05685, BKL28_002575, BMT50_22865, BMT91_02185, BR158_000326, BTB68_001580, BTQ06_20625, BUO55_002955, BvCmsKKP061_04250, BvCmsSIP010_01690, BXT93_24050, BZL69_29875, C0P57_002915, C1Q91_000517, C2121_000652, C2M16_14710, C3F40_02130, C5N07_01020, C9E67_12700, C9Z68_00810, CA593_19370, CCS08_14300, CCU84_003202, CDL36_03410, CF22_000723, CG692_15900, CG704_14180, CG831_001961, CIG67_20515, CQ986_001826, CQB02_07760, CR538_11760, CR539_13275, CR628_002960, CRM83_04905, CTR35_003952, CV83915_04673, CWS33_05105, CX938_004748, CY655_10990, D3C88_17255, D3G36_00495, D4M65_05405, D4N09_09295, D6T60_18525, D9D43_00210, D9E34_07220, D9E49_08585, D9H94_15545, D9J03_05630, D9J61_01960, DD762_27005, DIV22_02130, DNQ45_12940, DNX30_01360, DS732_14295, DTL43_16710, DTL90_19865, DTM45_01040, DU321_09100, E0I52_05665, E4K51_04345, E5H86_01660, E6D34_01850, EA239_04565, EAI46_22605, EB534_RS01565, EC95NR1_00624, ECs2423, EIA08_08055, EIZ93_02190, EN85_001572, EPS76_06665, EPS97_03980, ERS085406_02842, ERS139208_01405, EWK56_01335, ExPECSC038_01688, F3P10_21680, F7F11_07945, F7N46_05270, F9413_02050, F9461_08600, F9B07_05790, FA868_13395, FEJ01_02055, FFF58_01600, FGG80_00560, FHD44_07015, FHQ97_22460, FIJ20_00905, FJQ40_22245, FKO60_09995, FN993_000317, FOI11_004470, FOI11_15575, FPS11_12915, FV293_05160, FVB16_15630, FWK02_19195, FZN31_11325, FZU14_13195, G3V95_02010, G3W53_07390, G4A38_00725, G4A47_06100, G5603_11490, G9448_02045, GAI89_08025, GAJ12_14830, GAJ26_04095, GIB53_13785, GJ11_11980, GKF52_01200, GKF66_01305, GKF89_05005, GNW61_13610, GOP14_000776, GOP25_01010, GP711_11860, GP965_16275, GP975_05595, GQA06_10400, GQM04_13815, GQM13_04985, GQM17_06915, GQM21_17640, GQN34_01520, GQW07_05870, GRC73_09610, GRO95_04055, GRW05_00680, GRW24_08130, GRW56_13865, GRW57_14345, GSM54_19445, GSY44_08285, GUC01_03620, GUI33_21760, H0O53_16535, H0O72_06340, H0P11_07785, H5Z35_004654, H6Y26_001428, HCQ42_000554, HEP30_001095, HEP34_002142, HHH44_000859, HI055_000499, HIE29_000941, HJQ60_004738, HJY54_004216, HKA49_000252, HLQ92_08765, HLV18_04110, HLX92_05380, HLZ50_03365, HMV95_01070, HMW38_05045, HV109_10375, HV146_12265, HV209_08095, HVV39_26020, HVW04_02095, HVW43_02410, HVY77_11845, HVZ29_11240, HVZ30_09475, HVZ71_11215, HX136_13750, I6H00_05350, I6H02_02030, IFB95_001612, IUD45_000799, J0541_000499, J4S20_000624, J5U05_000739, J7T50_000107, JFD_03712, JFD_04026, JNP96_15160, KQ660_02425, NCTC10082_04810, NCTC10089_02213, NCTC10090_01309, NCTC10429_03464, NCTC10487_02666, NCTC10764_01824, NCTC10767_05613, NCTC10865_02858, NCTC10974_02607, NCTC11127_01323, NCTC11181_05204, NCTC11341_05763, NCTC12950_02527, NCTC13127_03040, NCTC13148_01145, NCTC4450_06155, NCTC7922_02399, NCTC7927_02510, NCTC7928_06452, NCTC8009_04602, NCTC8179_03845, NCTC8333_02776, NCTC8500_02570, NCTC8621_02469, NCTC8959_01571, NCTC8960_05064, NCTC9001_02820, NCTC9044_05029, NCTC9045_02731, NCTC9050_00334, NCTC9071_02178, NCTC9073_05704, NCTC9075_03160, NCTC9081_04443, NCTC9111_02396, NCTC9117_02958, NCTC9702_02703, NCTC9706_03979, NCTC9775_00952, NCTC9777_04368, NEP60_10460, OS110_02675, RG28_13510, SAMEA3472044_01208, SAMEA3472056_01518, SAMEA3752557_04262, SAMEA3753106_04477, TUM18780_19820, WR15_13845
UniProt
Find proteins for P0A7L3 (Escherichia coli (strain K12)) Explore P0A7L3  Go to UniProtKB:  P0A7L3

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

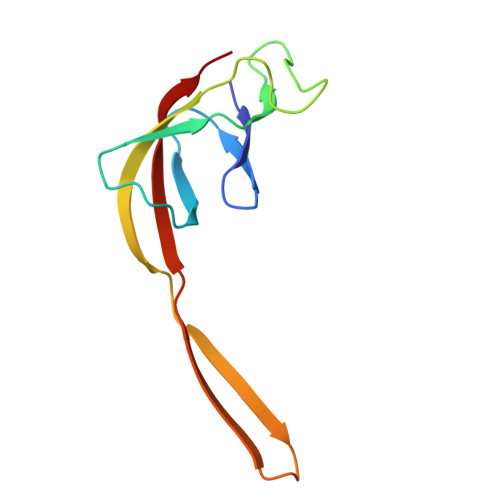

Large ribosomal subunit protein bL21	K [auth 21]	103	Escherichia coli	Mutation(s): 0  Gene Names: rplU, UTI89_C3620
UniProt
Find proteins for P0AG48 (Escherichia coli (strain K12)) Explore P0AG48  Go to UniProtKB:  P0AG48

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

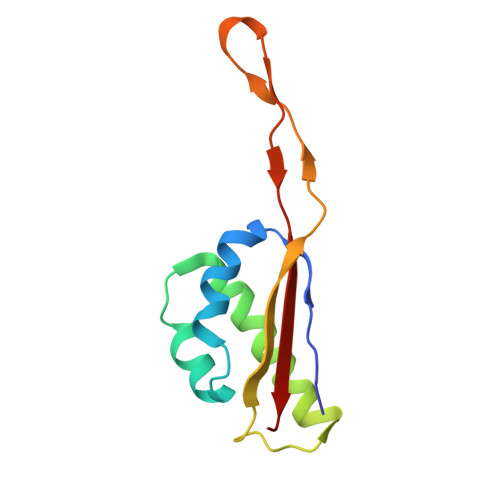

Large ribosomal subunit protein uL22	L [auth 22]	110	Escherichia coli	Mutation(s): 0  Gene Names: rplV, UTI89_C3767
UniProt
Find proteins for P61175 (Escherichia coli (strain K12)) Explore P61175  Go to UniProtKB:  P61175

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

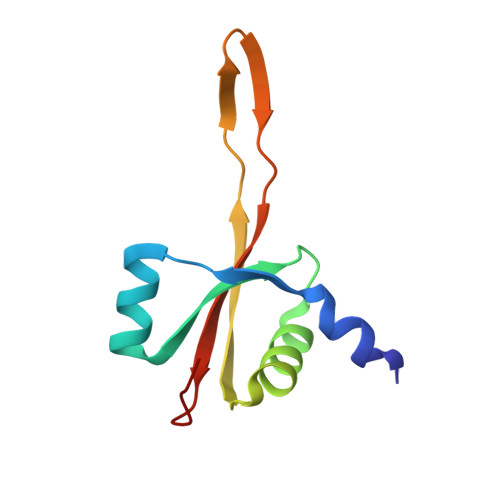

Large ribosomal subunit protein uL23	M [auth 23]	93	Escherichia coli	Mutation(s): 0  Gene Names:  rplW, rplW_1, A5U30_004552, A6592_25795, A8499_003332, A8502_004023, A9X72_02185, AC065_16005, ACN81_25520, ACU57_20960, AM464_09220, APX88_16075, AW118_24900, AWP47_12645, B6R12_002807, B6R15_004069, B6R17_004942, B6R31_004968, B6R48_005035, B6R87_004945, BANRA_04328, BB540_01740, BER14_25190, BF481_004930, BG944_001133, BGM66_003593, BHS81_19835, BJI68_08675, BJJ90_02125, BK292_20505, BK383_24645, BKL28_004543, BMT50_12215, BMT91_20070, BR158_003790, BTB68_004356, BTQ06_10690, BUO55_004697, BvCmsKKP061_03030, BvCmsSIP010_02685, BXT93_05475, BZL69_26030, C0P57_002668, C1Q91_004904, C2121_004162, C2M16_25405, C2R31_004633, C3F40_19720, C5N07_23490, C9E67_02725, C9Z68_22635, CA593_09650, CCS08_00215, CCU84_002902, CDL36_25510, CF22_004849, CG692_20185, CG704_20870, CG831_003649, CIG67_10675, CQ986_004881, CQB02_00710, CR538_02420, CR539_21900, CR628_001366, CRM83_22845, CTR35_003630, CV83915_02780, CWS33_24940, CX938_003831, CY655_21320, D1912_09370, D3C88_31150, D3G36_23050, D4M65_20655, D4N09_20255, D6T60_05775, D9D43_22550, D9E34_23525, D9E49_05240, D9H94_20750, D9J03_20135, D9J61_16735, DD762_23630, DIV22_15175, DNQ45_03840, DNX30_25395, DS732_24345, DTL43_20915, DTL90_24775, DTM45_24470, DU321_12085, E0I52_20225, E4K51_21575, E5H86_24440, E6D34_21675, EA239_22875, EAI46_07560, EB534_RS01785, EC95NR1_02709, ECs4183, EIA08_24040, EIZ93_12385, EN85_004349, EPS76_07130, EPS97_20010, ERS085406_04390, ERS139208_04338, EWK56_25080, ExPECSC038_03640, F3P10_05485, F7F11_22640, F7N46_23925, F9413_21150, F9461_25570, F9B07_24600, FA868_22830, FEJ01_22430, FFF58_25370, FGG80_25050, FHD44_21350, FHQ97_20035, FIJ20_21110, FJQ40_18390, FKO60_25720, FN993_004695, FOI11_019175, FOI11_04005, FPI65_20390, FPS11_25345, FTV92_20630, FV293_22380, FVB16_04955, FWK02_12650, FZN31_02550, FZU14_21905, G3V95_19930, G3W53_21040, G4A38_21595, G4A47_20865, G5603_24670, G9448_16990, GAI89_24745, GAJ12_24635, GAJ26_22095, GGB84_004451, GIB53_19315, GJ11_21470, GKF52_21325, GKF66_21630, GKF89_18555, GNW61_16715, GOP14_004289, GOP25_22790, GP711_23390, GP954_00860, GP965_04380, GP975_01270, GP979_01920, GQA06_03865, GQM04_10650, GQM13_25285, GQM17_20000, GQM21_11315, GQN34_23350, GQW07_21465, GRO95_20730, GRW05_09145, GRW24_04670, GRW56_00380, GRW57_03455, GSM54_23245, GSY44_20085, GUC01_21265, GUI33_20130, H0O53_20745, H0O72_19500, H0P11_20840, H5Z35_004773, H6Y26_003180, HCQ42_003932, HEP30_018720, HEP34_004754, HHH44_004519, HI055_004156, HIE29_005203, HJQ60_004995, HJY54_004737, HKA49_005019, HLQ92_22515, HLV18_23255, HLX92_09990, HLZ50_22095, HMV95_19690, HMW38_23190, HV109_02105, HV146_21755, HV209_14630, HVW04_17450, HVW43_18585, HVY77_02090, HVZ29_19180, HVZ30_01970, HVZ71_02275, HX136_02110, I6H00_20840, I6H02_12075, IFB95_004822, IUD45_003556, J0541_004413, J4S20_004786, J5U05_004071, J7T50_001469, JFD_01900, JFD_03729, JNP96_25390, KQ660_11855, NCTC10082_02823, NCTC10089_00486, NCTC10090_03511, NCTC10418_00674, NCTC10429_01077, NCTC10487_00429, NCTC10764_03847, NCTC10767_01500, NCTC10865_00642, NCTC10974_00533, NCTC11112_01052, NCTC11126_02754, NCTC11127_03239, NCTC11181_02722, NCTC11341_01905, NCTC12950_00463, NCTC13148_03456, NCTC4450_02459, NCTC7927_00535, NCTC7928_02533, NCTC8009_01493, NCTC8179_05925, NCTC8333_00473, NCTC8450_04921, NCTC8500_00318, NCTC8621_00492, NCTC8622_00522, NCTC8959_03277, NCTC8960_03054, NCTC8985_04965, NCTC9001_04236, NCTC9044_01376, NCTC9045_00549, NCTC9050_03595, NCTC9071_00467, NCTC9073_00398, NCTC9075_00708, NCTC9081_00901, NCTC9111_00851, NCTC9117_00740, NCTC9702_00521, NCTC9706_02721, NCTC9775_03987, NCTC9777_01875, NCTC9962_06781, NEP60_26375, OS110_25200, RG28_21695, SAMEA3472044_01146, SAMEA3472056_05427, SAMEA3752557_01968, SAMEA3753106_04618, TUM18780_04200
UniProt
Find proteins for P0ADZ0 (Escherichia coli (strain K12)) Explore P0ADZ0  Go to UniProtKB:  P0ADZ0

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

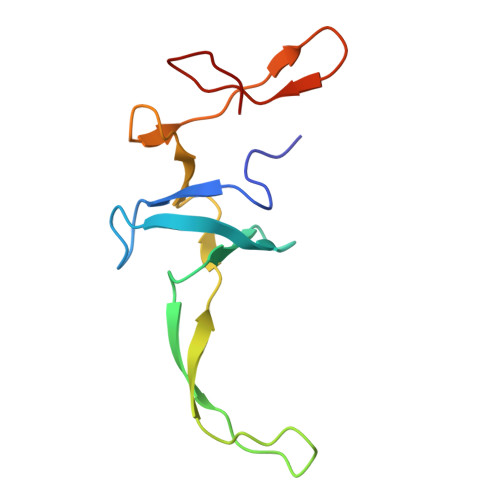

Large ribosomal subunit protein uL24	N [auth 24]	102	Escherichia coli	Mutation(s): 0  Gene Names: rplX
UniProt
Find proteins for P60624 (Escherichia coli (strain K12)) Explore P60624  Go to UniProtKB:  P60624

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL25	O [auth 25]	94	Escherichia coli	Mutation(s): 0  Gene Names: rplY
UniProt
Find proteins for P68919 (Escherichia coli (strain K12)) Explore P68919  Go to UniProtKB:  P68919

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

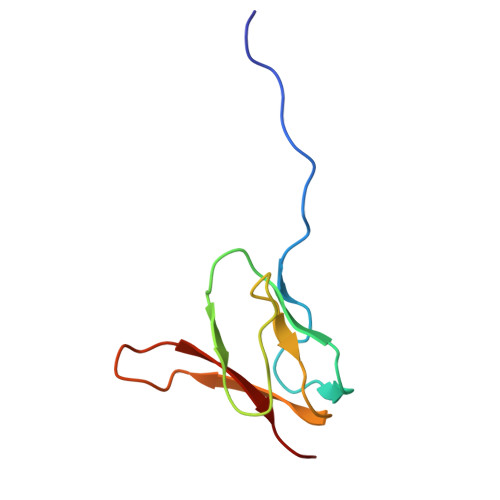

Large ribosomal subunit protein bL27	P [auth 27]	76	Escherichia coli	Mutation(s): 0  Gene Names: rpmA, b3185, JW3152
UniProt
Find proteins for P0A7L8 (Escherichia coli (strain K12)) Explore P0A7L8  Go to UniProtKB:  P0A7L8

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

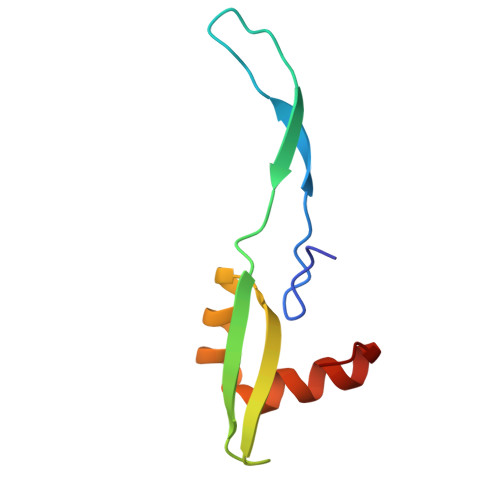

50S ribosomal protein L28	Q [auth 28]	77	Escherichia coli	Mutation(s): 0  Gene Names: rpmB, G925_03874
UniProt
Find proteins for P0A7M2 (Escherichia coli (strain K12)) Explore P0A7M2  Go to UniProtKB:  P0A7M2

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL29	R [auth 29]	63	Escherichia coli	Mutation(s): 0  Gene Names:  rpmC, A5U30_004546, A8502_004029, ACN81_25490, ACU57_20990, AW118_24870, AWP47_12675, B6R15_004075, B6R31_004974, BANRA_01943, BANRA_04322, BE932_15505, BER14_25160, BG944_001127, BGM66_003599, BGZ_02596, BGZ_04119, BJI68_08705, BK292_20475, BK383_24675, BKL28_004549, BTB68_004362, BTQ06_10660, BvCmsKKP061_03024, BvCmsSIP010_02679, BXT93_05505, C0P57_002662, C1Q91_004910, C2121_004168, C2M16_25435, C2R31_004627, C3F40_19750, C9Z68_22605, CF22_004855, CG704_20900, CG831_003643, CIG67_10705, CTR35_003624, CV83915_02786, D3G36_23080, D4M65_20625, D4N09_20225, D9D43_22580, D9E49_05210, D9J61_16705, DD762_23600, DIV22_15205, DNQ45_03810, DNX30_25425, DS732_24315, DTL43_20945, DU321_12055, E4K51_21545, E5H86_24470, E6D34_21705, EAI46_07530, ECs4177, EIA08_24010, EIMP300_17750, EIZ93_12415, EN85_004355, EPS76_07160, EPS97_20040, EWK56_25050, ExPECSC038_03646, F7F11_22670, F7N46_23955, F9413_21180, F9461_25600, F9B07_24630, FGAF848_25910, FIJ20_21140, FJQ40_18360, FKO60_25690, FOI11_019205, FOI11_03975, FORC44_0486, FPI65_20360, FPS11_25375, FTV93_20845, FVB16_04925, FWK02_06325, FZU14_21875, G3V95_19900, G3W53_21010, G4A38_21565, G4A47_20835, G5603_24640, GAI89_24775, GAJ12_24665, GKF66_21600, GNW61_16685, GOP25_22760, GP711_23360, GP954_00890, GP965_04350, GP975_01240, GP979_01950, GQA06_03895, GQE86_20135, GQM04_10620, GQM13_25255, GQM21_11285, GQN34_23320, GQW07_21495, GRC73_21695, GRO95_20760, GRW05_09115, GRW24_04700, GRW56_00350, GRW57_03485, GUC01_21235, H0O72_19470, HEP30_018690, HEP34_004760, HHH44_004525, HI055_004150, HIE29_005197, HJQ60_005001, HLX92_10020, HLZ50_22125, HMV95_19660, HV109_02135, HV209_14660, HVV39_09320, HVW04_17480, HVW43_18615, HVY77_02120, I6H00_20870, I6H02_12045, IFB95_004816, J0541_004407, J5U05_004077, JNP96_25360, KV499_004411, NCTC10082_02829, NCTC10089_00492, NCTC10418_00681, NCTC10429_01084, NCTC10764_03853, NCTC10767_01506, NCTC10865_00649, NCTC10974_00539, NCTC11126_02760, NCTC11181_02728, NCTC11341_01899, NCTC7922_04052, NCTC7927_00541, NCTC7928_02527, NCTC8009_01501, NCTC8179_05932, NCTC8333_00479, NCTC8500_00324, NCTC8621_00498, NCTC8622_00516, NCTC8959_03271, NCTC8960_03060, NCTC8985_04972, NCTC9001_04244, NCTC9044_01368, NCTC9045_00555, NCTC9075_00714, NCTC9077_00594, NCTC9081_00907, NCTC9117_00746, NCTC9702_00527, NCTC9706_02727, NCTC9962_06787, NEP60_26345, OGM49_22385, QDW62_02140, RZR61_12945, SAMEA3472112_00683, SAMEA3752557_01962, WR15_19660
UniProt
Find proteins for P0A7M6 (Escherichia coli (strain K12)) Explore P0A7M6  Go to UniProtKB:  P0A7M6

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image

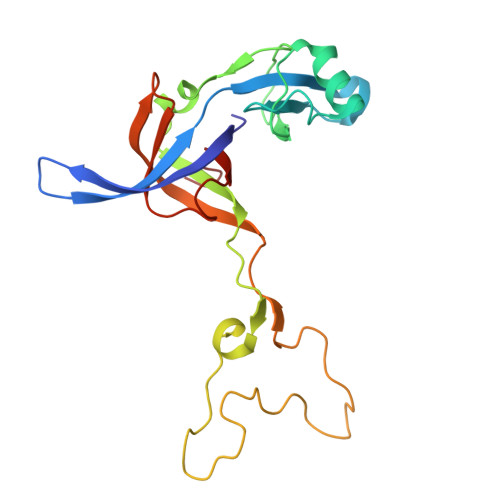

50S ribosomal protein L3	S [auth 3]	209	Escherichia coli	Mutation(s): 0  Gene Names: rplC, b3320, JW3282
UniProt
Find proteins for P60438 (Escherichia coli (strain K12)) Explore P60438  Go to UniProtKB:  P60438

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image

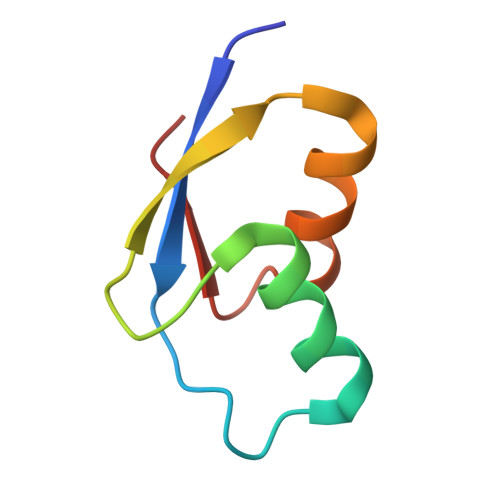

50S ribosomal protein L30	T [auth 30]	58	Escherichia coli	Mutation(s): 0  Gene Names: rpmD, b3302, JW3264
UniProt
Find proteins for P0AG51 (Escherichia coli (strain K12)) Explore P0AG51  Go to UniProtKB:  P0AG51

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL31	U [auth 31]	66	Escherichia coli	Mutation(s): 0  Gene Names: rpmE, b3936, JW3907
UniProt
Find proteins for P0A7M9 (Escherichia coli (strain K12)) Explore P0A7M9  Go to UniProtKB:  P0A7M9

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L32	V [auth 32]	56	Escherichia coli	Mutation(s): 0  Gene Names: rpmF, ECDEC2D_1303
UniProt
Find proteins for P0A7N4 (Escherichia coli (strain K12)) Explore P0A7N4  Go to UniProtKB:  P0A7N4

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image

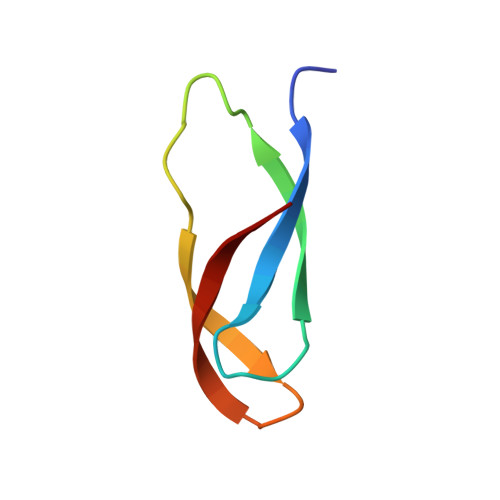

Large ribosomal subunit protein bL33	W [auth 33]	50	Escherichia coli	Mutation(s): 0  Gene Names: rpmG, b3636, JW3611
UniProt
Find proteins for P0A7N9 (Escherichia coli (strain K12)) Explore P0A7N9  Go to UniProtKB:  P0A7N9

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image

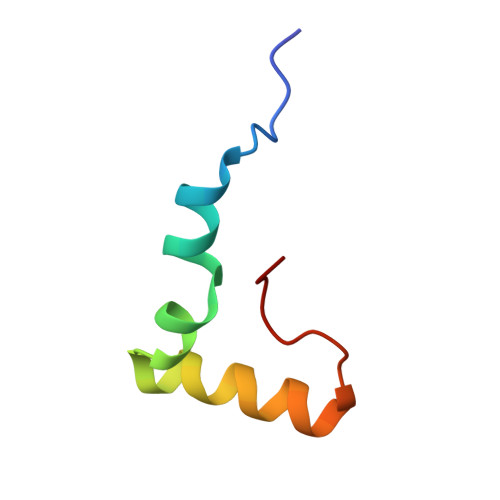

50S ribosomal protein L34	X [auth 34]	46	Escherichia coli	Mutation(s): 0  Gene Names: rpmH
UniProt
Find proteins for P0A7P5 (Escherichia coli (strain K12)) Explore P0A7P5  Go to UniProtKB:  P0A7P5

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL35	Y [auth 35]	64	Escherichia coli	Mutation(s): 0  Gene Names: rpmI
UniProt
Find proteins for P0A7Q1 (Escherichia coli (strain K12)) Explore P0A7Q1  Go to UniProtKB:  P0A7Q1

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image

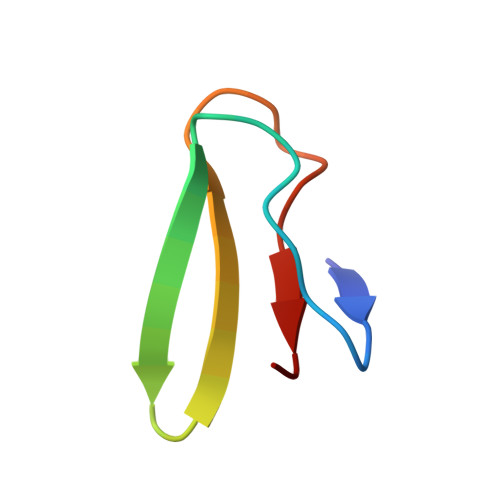

50S ribosomal protein L36	Z [auth 36]	38	Escherichia coli	Mutation(s): 0  Gene Names: rpmJ
UniProt
Find proteins for P0A7Q6 (Escherichia coli (strain K12)) Explore P0A7Q6  Go to UniProtKB:  P0A7Q6

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL4	AA [auth 4]	201	Escherichia coli	Mutation(s): 0  Gene Names: rplD, eryA, b3319, JW3281
UniProt
Find proteins for P60723 (Escherichia coli (strain K12)) Explore P60723  Go to UniProtKB:  P60723

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L5	BA [auth 5]	177	Escherichia coli	Mutation(s): 0  Gene Names: rplE, CCU01_002520
UniProt
Find proteins for P62399 (Escherichia coli (strain K12)) Explore P62399  Go to UniProtKB:  P62399

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image

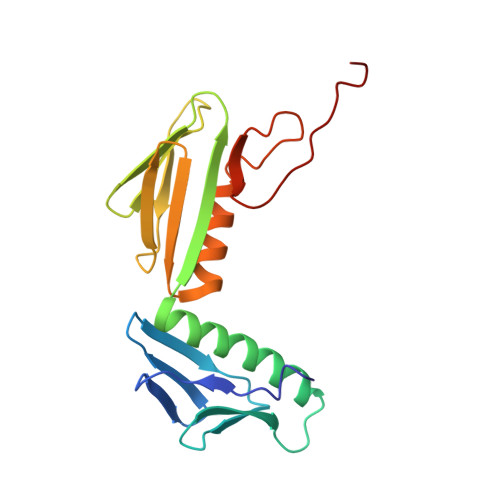

Large ribosomal subunit protein uL6	CA [auth 6]	176	Escherichia coli	Mutation(s): 0  Gene Names:  rplF, A5U30_004539, A8499_003319, A8502_004036, A9X72_02250, AC065_15940, ACN81_25455, ACU57_21025, AM464_09155, APX88_16140, AW118_24835, AWP47_12710, B6R12_002820, B6R15_004082, B6R17_004955, B6R31_004981, B6R48_005048, B6R87_004958, BANRA_04315, BB540_01675, BER14_25125, BF481_004943, BG944_001120, BGM66_003606, BHS81_19770, BJI68_08740, BJJ90_02190, BK292_20440, BK383_24710, BKL28_004556, BMT50_12280, BR158_003777, BTB68_004369, BTQ06_10625, BUO55_004710, BvCmsKKP061_03017, BvCmsSIP010_02672, BXT93_05540, BZL69_25965, C0P57_002655, C1Q91_004917, C2121_004175, C2M16_25470, C2R31_004620, C3F40_19785, C5N07_23555, C9E67_02790, C9Z68_22570, CA593_09715, CCS08_00150, CCU84_002915, CDL36_25575, CF22_004862, CG692_20250, CG704_20935, CG831_003636, CIG67_10740, CQ986_004894, CR538_02485, CR539_21835, CR628_001353, CRM83_22910, CTR35_003617, CWS33_24875, CX938_003818, CY655_21255, D3G36_23115, D4M65_20590, D4N09_20190, D6T60_05710, D9D43_22615, D9E34_23590, D9E49_05175, D9H94_20815, D9J03_20070, D9J61_16670, DD762_23565, DIV22_15240, DNQ45_03775, DNX30_25460, DS732_24280, DTL43_20980, DTL90_24710, DTM45_24535, DU321_12020, E0I52_20160, E4K51_21510, E5H86_24505, E6D34_21740, EA239_22810, EAI46_07495, EB534_RS01720, EC95NR1_02696, ECs4170, EIZ93_12450, EN85_004362, EPS76_07195, EPS97_20075, ERS085406_04403, ERS139208_04351, EWK56_25015, ExPECSC038_03653, F3P10_05550, F7F11_22705, F7N46_23990, F9413_21215, F9461_25635, F9B07_24665, FA868_22765, FEJ01_22495, FFF58_25435, FGG80_25115, FHD44_21285, FHQ97_20100, FIJ20_21175, FJQ40_18325, FKO60_25655, FN993_004708, FOI11_019240, FOI11_03940, FPI65_20325, FPS11_25410, FTV93_20880, FV293_22445, FVB16_04890, FWK02_06290, FZN31_02615, FZU14_21840, G3V95_19865, G3W53_20975, G4A38_21530, G4A47_20800, G9448_17055, GAI89_24810, GAJ12_24700, GAJ26_22030, GIB53_19380, GJ11_21405, GKF52_21260, GKF66_21565, GKF89_18490, GNW61_16650, GOP14_004276, GOP25_22725, GP711_23325, GP954_00925, GP965_04315, GP975_01205, GP979_01985, GQA06_03930, GQM04_10585, GQM13_25220, GQM17_19935, GQM21_11250, GQN34_23285, GQW07_21530, GRC73_21730, GRO95_20795, GRW05_09080, GRW24_04735, GRW56_00315, GRW57_03520, GSM54_23310, GSY44_20020, GUC01_21200, GUI33_20065, H0O53_20810, H0O72_19435, H5Z35_004786, H6Y26_003167, HCQ42_003945, HEP30_018655, HEP34_004767, HHH44_004532, HI055_004143, HIE29_005190, HJQ60_005008, HJY54_004750, HKA49_005032, HLQ92_22580, HLV18_23320, HLX92_10055, HLZ50_22160, HMV95_19625, HV109_02170, HV209_14695, HVV39_09285, HVW43_18650, HVY77_02155, HVZ30_02035, HVZ71_02340, HX136_02175, I6H00_20905, I6H02_12010, IFB95_004809, IUD45_003543, J0541_004400, J4S20_004799, J5U05_004084, J7T50_001456, JFD_01887, JFD_03716, JNP96_25325, KQ660_11790, NCTC10082_02836, NCTC10089_00499, NCTC10090_03524, NCTC10418_00687, NCTC10487_00442, NCTC10764_03860, NCTC10767_01513, NCTC11112_01039, NCTC11126_02768, NCTC11127_03226, NCTC11181_02735, NCTC11341_01892, NCTC12950_00476, NCTC13127_00783, NCTC13148_03444, NCTC4450_02472, NCTC7927_00548, NCTC7928_02519, NCTC8009_01508, NCTC8333_00486, NCTC8450_04934, NCTC8621_00505, NCTC8959_03264, NCTC8960_03067, NCTC8985_04979, NCTC9001_04251, NCTC9044_01360, NCTC9050_03608, NCTC9071_00480, NCTC9077_00601, NCTC9081_00914, NCTC9111_00864, NCTC9117_00753, NCTC9702_00534, NCTC9706_02734, NCTC9775_04000, NCTC9777_01888, NEP60_26310, OS110_25135, RG28_21630, SAMEA3472044_01159, SAMEA3472056_05414, SAMEA3752557_01955, SAMEA3753106_04631, TUM18780_04330, WR15_19625
UniProt
Find proteins for P0AG55 (Escherichia coli (strain K12)) Explore P0AG55  Go to UniProtKB:  P0AG55

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL9	DA [auth 9]	149	Escherichia coli	Mutation(s): 0  Gene Names: rplI, b4203, JW4161
UniProt
Find proteins for P0A7R1 (Escherichia coli (strain K12)) Explore P0A7R1  Go to UniProtKB:  P0A7R1

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image

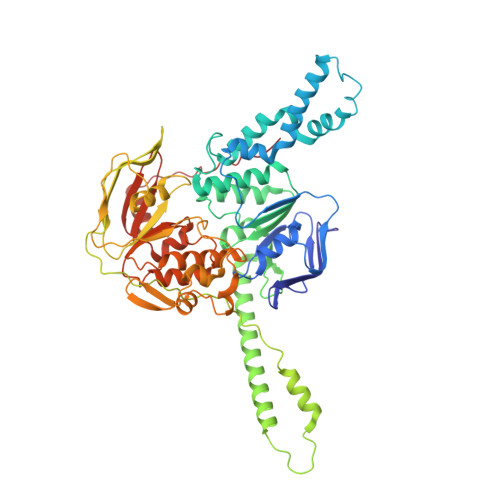

Energy-dependent translational throttle protein EttA	EA [auth E]	552	Escherichia coli	Mutation(s): 0  Gene Names: ettA, yjjK, b4391, JW4354 EC: 3.6.1
UniProt
Find proteins for P0A9W3 (Escherichia coli (strain K12)) Explore P0A9W3  Go to UniProtKB:  P0A9W3

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image

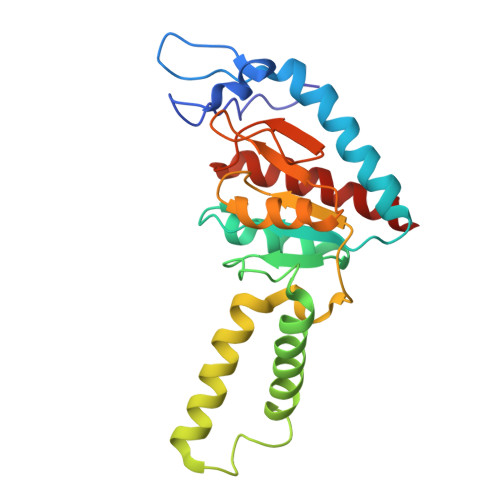

Small ribosomal subunit protein uS2	KA [auth sb]	218	Escherichia coli	Mutation(s): 0  Gene Names: rpsB, b0169, JW0164
UniProt
Find proteins for P0A7V0 (Escherichia coli (strain K12)) Explore P0A7V0  Go to UniProtKB:  P0A7V0

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image

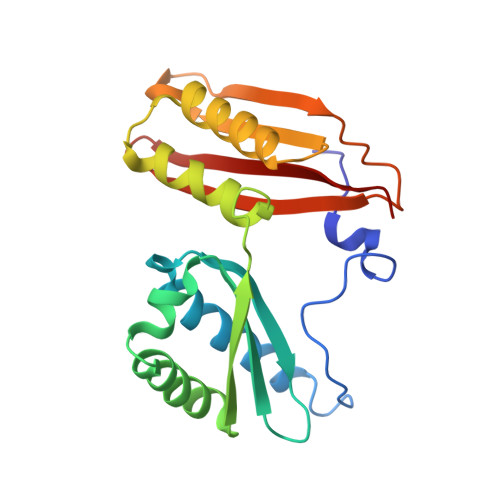

Small ribosomal subunit protein uS3	LA [auth sc]	206	Escherichia coli	Mutation(s): 0  Gene Names: rpsC, Z4685, ECs4179
UniProt
Find proteins for P0A7V3 (Escherichia coli (strain K12)) Explore P0A7V3  Go to UniProtKB:  P0A7V3

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image

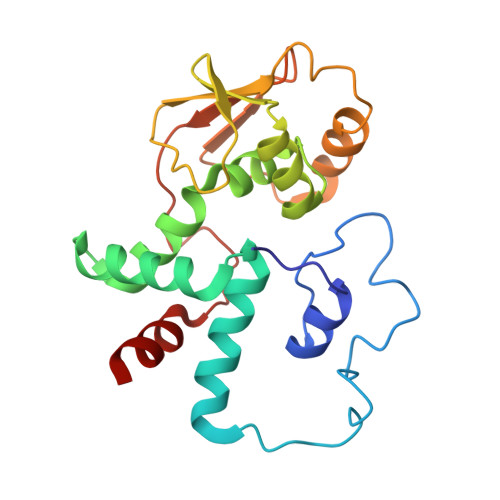

30S ribosomal protein S4	MA [auth sd]	205	Escherichia coli	Mutation(s): 0  Gene Names:  rpsD, rpsD_2, A2F99_003133, A5U30_004530, A6592_25685, A8499_003310, A8502_004045, A8X14_004364, A9X72_02295, AAG43_004468, AAG80_001471, AAG81_002934, AAS29_002184, ACN68_01785, ACN81_25410, ACU57_21070, AM464_09110, APX88_16185, AT845_004400, AW118_24790, AW119_26600, AWP47_12755, B6R12_002829, B6R15_004091, B6R31_004990, B6R48_005057, B6R87_004967, BANRA_04306, BANRA_04454, BEA19_23315, BER14_25080, BF481_004952, BG944_001111, BGM66_003615, BHS81_19725, BJI68_08785, BJJ90_02235, BK292_20395, BK383_24755, BKL28_004565, BLM69_000018, BMC79_004441, BMO21_000808, BMT50_12325, BMT91_19960, BO178_004290, BON92_01160, BR158_003768, BRV02_004619, BRV34_003992, BRV41_004380, BSR05_22680, BTB68_004378, BTQ06_10580, BUO55_004719, BvCmsHHP019_04126, BvCmsHHP056_02698, BvCmsKKP061_03008, BvCmsKSNP073_02050, BXT93_05585, BZL69_25920, C0P57_002646, C1Q91_004926, C2121_004184, C2M16_25515, C2R31_004611, C3F40_19830, C5N07_23600, C9114_23780, C9E67_02835, C9Z68_22525, CA593_09760, CCS08_00105, CCV24_003537, CDL36_25620, CDL37_18565, CF22_004871, CG831_003627, CIG67_10785, CO706_15175, CQ986_004903, CQB02_00600, CR538_02530, CR539_21790, CR628_001344, CSE52_004356, CTR35_003608, CWS33_24830, CX690_001674, CX691_001950, CX692_003176, CX693_003183, CX694_003140, CX696_002237, CX699_003071, CX938_003809, CY655_21210, CYM75_002789, D0X26_24470, D1912_27635, D3C88_00295, D3G36_23160, D4M65_20545, D4N09_20145, D4U49_16120, D9D43_22660, D9E34_23635, D9E49_05130, D9H94_20860, D9J03_20025, D9J61_16625, DD762_23520, DIV22_15285, DN627_24395, DNQ45_03730, DNX30_25505, DRW19_25110, DS732_24235, DTL43_21025, DTL90_24665, DTM45_24580, DU321_11975, E0I42_22165, E3N34_07135, E4K51_21465, E5H86_24550, E6D34_21785, EA239_22765, EA435_23005, EAI46_07450, EAX79_10685, EBP16_21900, EC95NR1_02686, ECs4161, EHD79_24265, EIA08_23930, EIZ93_12495, EKI52_17690, EL79_0420, ELT17_22465, ELT48_22895, ELV28_22900, ELX68_21515, ELX69_22945, ELX76_22915, ELX79_22025, ELX96_16780, ELY32_12890, ELY41_18695, ELY48_23135, EN85_004371, EPS76_07240, ERS085406_04412, ERS085411_04292, ERS139208_04360, EWK56_24970, ExPECSC038_03662, F0L67_25290, F3N40_22390, F7F11_22750, F7N46_24035, F9413_21260, F9461_25680, F9B07_24710, F9S83_18965, F9U58_14355, F9V22_13840, FA868_22720, FDM60_20865, FEJ01_22540, FFF58_25480, FGG80_25160, FHD44_21240, FIJ20_21220, FJQ40_18280, FJQ53_22940, FKO60_25610, FNA08_03300, FOI11_019285, FOI11_03895, FPI65_20280, FPS11_25455, FTV90_00725, FTV93_20925, FV293_22490, FVB16_04845, FWK02_29585, FZN31_02660, FZU14_21795, G3565_26290, G3V95_19820, G3W53_20930, G4A38_21485, G4A47_20755, G5603_24560, G9448_17100, GAI89_24855, GAJ12_24745, GAJ26_21985, GF699_19710, GFY34_22925, GGB84_004473, GIB53_19425, GJ11_21360, GJO56_22710, GKF66_21520, GKF89_18445, GNW61_16605, GNZ05_26010, GOP25_22680, GP711_23280, GP944_18765, GP954_00970, GP965_04270, GP975_01160, GP979_02030, GQA06_03975, GQM04_10540, GQM13_25175, GQM21_11205, GQN34_23240, GQW07_21575, GRC73_21775, GRO95_20840, GRW05_09035, GRW24_04780, GRW56_00270, GRW57_03565, GSM54_23355, GSY44_19975, GUC01_21155, GUI33_20020, H0O51_24710, H0O53_20855, H0O72_19390, H6Y26_003158, HCQ42_003954, HEP30_018610, HEP34_004776, HHH44_004541, HI055_004134, HIE29_005181, HJ942_004444, HJQ60_005017, HKA49_005041, HL563_21575, HL601_22380, HLV18_23365, HLX92_10100, HLZ50_22205, HMV95_19580, HMW38_23080, HV109_02215, HV146_21645, HV209_14740, HVV39_09240, HVW04_17560, HVW43_18695, HVX31_01995, HVX32_19020, HVY77_02200, HVZ29_19070, HVZ30_02080, HVZ71_02385, HX136_02220, I6H00_20950, I6H02_11965, IA00_004082, IFB95_004800, IH772_24040, IT029_004959, J0541_004391, J4S20_004808, J5U05_004093, JFD_03707, JNP96_25280, NCTC10082_02845, NCTC10089_00508, NCTC10090_03533, NCTC10418_00697, NCTC10429_01101, NCTC10764_03869, NCTC10767_01522, NCTC10865_00667, NCTC10974_00558, NCTC11112_01030, NCTC11126_02778, NCTC11181_02744, NCTC11341_01883, NCTC12950_00485, NCTC13127_00793, NCTC13148_03435, NCTC13216_01346, NCTC4450_02481, NCTC7922_04037, NCTC7927_00557, NCTC7928_02509, NCTC8009_01519, NCTC8179_05949, NCTC8333_00495, NCTC8450_04944, NCTC8621_00514, NCTC8622_00500, NCTC8959_03255, NCTC8960_03076, NCTC9001_04260, NCTC9044_01350, NCTC9045_00572, NCTC9075_00730, NCTC9077_00610, NCTC9081_00925, NCTC9111_00873, NCTC9117_00761, NCTC9702_00543, NCTC9706_02743, NCTC9775_04009, NCTC9777_01897, NCTC9962_06803, ND22_005162, RG28_21585, SAMEA3472044_01168, SAMEA3472056_05405, SAMEA3472147_04298, SAMEA3751407_00018, SAMEA3752557_01946, SAMEA3753106_04640, TUM18780_04410, WR15_19580
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12)) Explore P0A7V8  Go to UniProtKB:  P0A7V8

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image

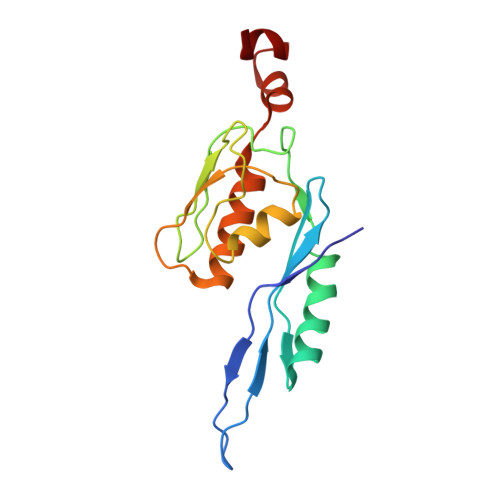

Small ribosomal subunit protein uS5	NA [auth se]	157	Escherichia coli	Mutation(s): 0  Gene Names: rpsE, spc, b3303, JW3265
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12)) Explore P0A7W1  Go to UniProtKB:  P0A7W1

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image

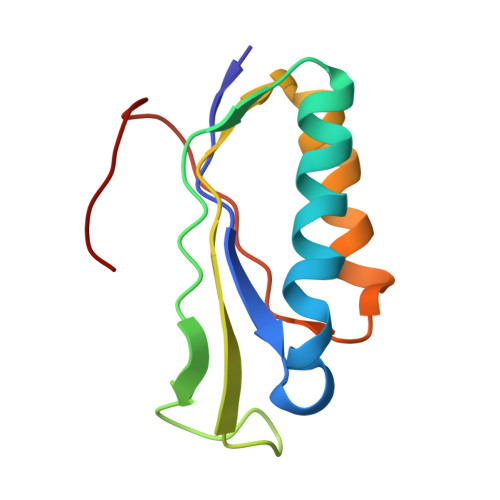

30S ribosomal protein S6, non-modified isoform	OA [auth sf]	100	Escherichia coli	Mutation(s): 0  Gene Names: rpsF, b4200, JW4158
UniProt
Find proteins for P02358 (Escherichia coli (strain K12)) Explore P02358  Go to UniProtKB:  P02358

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image

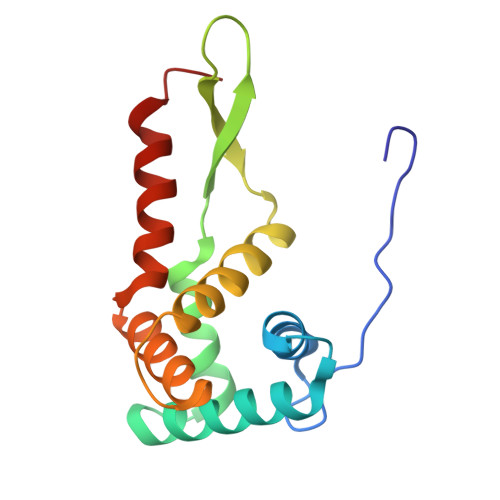

30S ribosomal protein S7	PA [auth sg]	151	Escherichia coli	Mutation(s): 0  Gene Names: rpsG, b3341, JW3303
UniProt
Find proteins for P02359 (Escherichia coli (strain K12)) Explore P02359  Go to UniProtKB:  P02359

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image

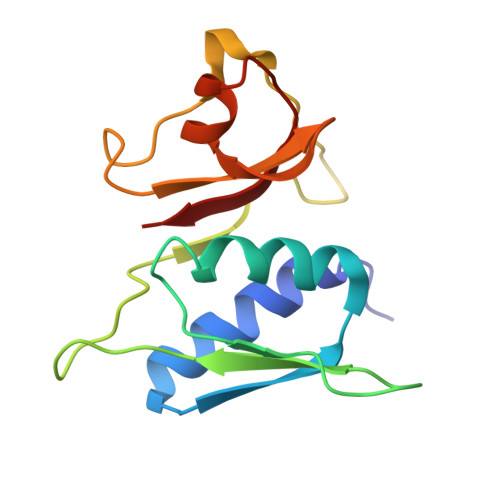

30S ribosomal protein S8	QA [auth sh]	129	Escherichia coli	Mutation(s): 0  Gene Names: rpsH, ECDEC2D_3910
UniProt
Find proteins for P0A7W7 (Escherichia coli (strain K12)) Explore P0A7W7  Go to UniProtKB:  P0A7W7

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image

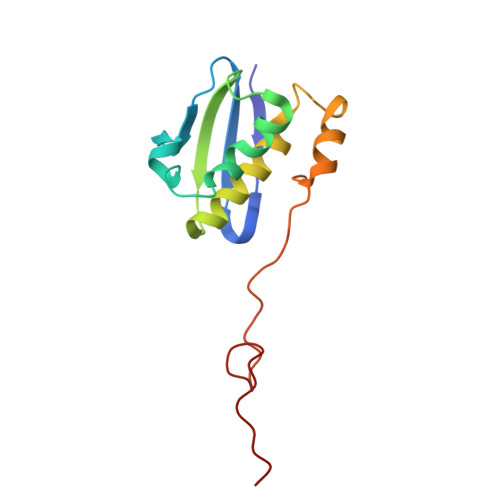

Small ribosomal subunit protein uS9	RA [auth si]	127	Escherichia coli	Mutation(s): 0  Gene Names:  rpsI, A5U30_002029, A6592_14035, A8499_002400, A8502_003025, A9X72_02640, AC065_15530, ACN81_18270, ACU57_14275, AM464_08780, APX88_13640, AW118_08655, AWP47_10935, B6R12_000313, B6R15_000990, B6R17_003098, B6R31_001806, B6R48_002633, B6R87_002413, BANRA_04240, BB540_06935, BER14_09340, BF481_001923, BG944_002163, BGM66_003544, BHS81_19395, BJI68_19125, BJJ90_02580, BK292_10050, BK383_16130, BKL28_000276, BMT50_12670, BMT91_11440, BR158_000189, BTB68_000438, BTQ06_23470, BUO55_000295, BvCmsKKP061_00922, BvCmsSIP010_02602, BXT93_24385, BZL69_07895, C0P57_001852, C1Q91_000916, C2121_004467, C2M16_04035, C2R31_003461, C3F40_20175, C5N07_22725, C9E67_03180, C9Z68_06055, CA593_10120, CCS08_10250, CCU84_001112, CDL36_04425, CF22_002985, CG692_13375, CG704_16430, CG831_001247, CIG67_16815, CQ986_001737, CQB02_14740, CR538_02875, CR539_21445, CR628_001957, CRM83_23300, CTR35_000744, CV83915_02871, CWS33_08570, CX938_003362, CY655_20865, D1912_21090, D3C88_18900, D3G36_08955, D4M65_13015, D4N09_15115, D6T60_21260, D9D43_03785, D9E34_11910, D9E49_09750, D9H94_03690, D9J03_05350, D9J61_01070, DD762_12930, DIV22_02780, DNQ45_08935, DNX30_11580, DS732_23890, DTL43_04485, DTL90_07760, DTM45_14705, DU321_08840, E0I52_08435, E4K51_20805, E5H86_10565, E6D34_05915, EA239_09010, EAI46_01110, EB534_RS02840, EC95NR1_02610, ECs4103, EIA08_12335, EIZ93_10150, EN85_002333, EPS76_12290, EPS97_17880, ERS085406_02965, ERS139208_02274, EWK56_02620, ExPECSC038_02741, F7F11_08870, F7N46_13330, F9413_10425, F9461_07600, F9B07_01435, FA868_08430, FEJ01_06675, FFF58_13605, FGG80_03865, FHD44_17870, FHQ97_04375, FIJ20_03860, FJQ40_07185, FKO60_06410, FN993_000631, FOI11_019605, FOI11_03575, FPI65_19955, FPS11_10475, FTV92_21060, FTV93_21255, FV293_08185, FVB16_17315, FZN31_03025, FZU14_16365, G3V95_08965, G3W53_05220, G4A38_08495, G4A47_07885, G5603_16210, G9448_17420, GAI89_03645, GAJ12_14530, GAJ26_01560, GGB84_000282, GIB53_11705, GJ11_20975, GKF52_04875, GKF66_06285, GKF89_22220, GNW61_12520, GOP14_001750, GOP25_03570, GP711_11340, GP965_13255, GP975_23890, GP979_14590, GQA06_14425, GQM04_13525, GQM13_09620, GQM17_12695, GQM21_01635, GQN34_18070, GQW07_04110, GRO95_03860, GRW05_16510, GRW24_10515, GRW56_09935, GRW57_10250, GSM54_11730, GSY44_07995, GUC01_09885, GUI33_02630, H0O53_08235, H0O72_09800, H0P11_01640, H5Z35_000289, H6Y26_003879, HCQ42_000364, HEP30_003470, HEP34_000253, HHH44_002822, HI055_000385, HIE29_003186, HJQ60_003835, HJY54_000681, HKA49_001576, HLQ92_10840, HLV18_15680, HLX92_02455, HLZ50_05640, HMV95_21920, HMW38_00255, HV109_02535, HV146_21315, HV209_15060, HVV39_08880, HVW04_17925, HVW43_19020, HVY77_02530, HVZ29_18700, HVZ30_02410, HVZ71_02705, HX136_02545, I6H00_21285, I6H02_11635, IFB95_002590, IUD45_003198, J0541_003264, J4S20_002626, J5U05_001240, J7T50_001183, JFD_02469, JFD_04155, JNP96_24960, KQ660_11425, NCTC10082_02912, NCTC10089_00573, NCTC10090_03603, NCTC10418_00792, NCTC10487_05043, NCTC10764_03943, NCTC10767_01601, NCTC10865_00738, NCTC10974_00628, NCTC11112_00948, NCTC11126_02865, NCTC11127_03151, NCTC11181_02813, NCTC11341_01809, NCTC12950_00560, NCTC13127_00868, NCTC4450_02548, NCTC7922_03943, NCTC7927_00632, NCTC7928_02411, NCTC8179_06030, NCTC8450_05022, NCTC8500_00425, NCTC8621_00591, NCTC8622_00406, NCTC8959_03190, NCTC8960_03154, NCTC9001_05559, NCTC9044_01272, NCTC9045_00641, NCTC9050_03684, NCTC9071_00556, NCTC9073_00293, NCTC9075_00824, NCTC9077_00687, NCTC9081_01013, NCTC9111_00940, NCTC9117_00832, NCTC9702_00613, NCTC9706_02809, NCTC9775_04087, NCTC9777_01975, NCTC9962_00338, NEP60_07135, OS110_19195, RG28_21240, SAMEA3472044_04260, SAMEA3472056_03130, SAMEA3752557_01816, SAMEA3753106_02430, TUM18780_04980, WR15_24270
UniProt
Find proteins for P0A7X3 (Escherichia coli (strain K12)) Explore P0A7X3  Go to UniProtKB:  P0A7X3

Entity ID: 45
Molecule	Chains	Sequence Length	Organism	Details	Image

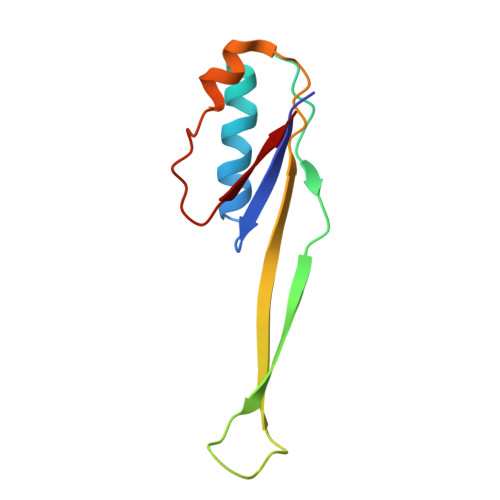

30S ribosomal protein S10	SA [auth sj]	98	Escherichia coli	Mutation(s): 0  Gene Names: rpsJ, NRG857_16455
UniProt
Find proteins for P0A7R5 (Escherichia coli (strain K12)) Explore P0A7R5  Go to UniProtKB:  P0A7R5

Entity ID: 46
Molecule	Chains	Sequence Length	Organism	Details	Image

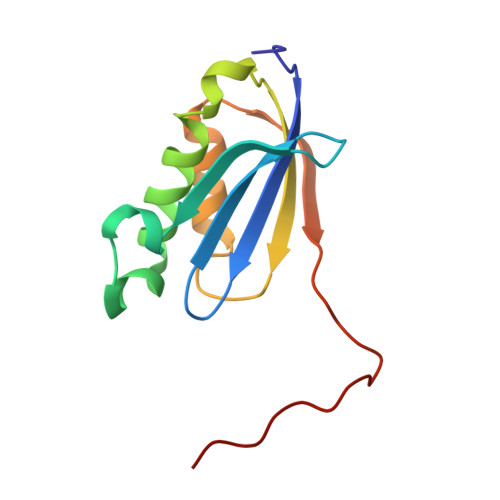

Small ribosomal subunit protein uS11	TA [auth sk]	116	Escherichia coli	Mutation(s): 0  Gene Names:  rpsK, A5U30_004531, A6592_25690, A8499_003311, A8502_004044, A9X72_02290, AC065_15900, ACN81_25415, ACU57_21065, AM464_09115, APX88_16180, AW118_24795, AWP47_12750, B6R12_002828, B6R15_004090, B6R17_004963, B6R31_004989, B6R48_005056, B6R87_004966, BANRA_04307, BB540_01635, BER14_25085, BF481_004951, BG944_001112, BGM66_003614, BHS81_19730, BJI68_08780, BJJ90_02230, BK292_20400, BK383_24750, BKL28_004564, BMT50_12320, BMT91_19965, BR158_003769, BTB68_004377, BTQ06_10585, BUO55_004718, BvCmsKKP061_03009, BvCmsSIP010_02664, BXT93_05580, BZL69_25925, C0P57_002647, C1Q91_004925, C2121_004183, C2M16_25510, C2R31_004612, C3F40_19825, C5N07_23595, C9E67_02830, C9Z68_22530, CA593_09755, CCS08_00110, CCU84_002923, CDL36_25615, CF22_004870, CG692_20290, CG704_20975, CG831_003628, CIG67_10780, CQ986_004902, CR538_02525, CR539_21795, CR628_001345, CRM83_22950, CTR35_003609, CV83915_02801, CWS33_24835, CX938_003810, CY655_21215, D1912_27630, D3C88_00300, D3G36_23155, D4M65_20550, D4N09_20150, D6T60_05670, D9D43_22655, D9E34_23630, D9E49_05135, D9H94_20855, D9J03_20030, D9J61_16630, DD762_23525, DIV22_15280, DNQ45_03735, DNX30_25500, DS732_24240, DTL43_21020, DTL90_24670, DTM45_24575, DU321_11980, E0I52_20120, E4K51_21470, E5H86_24545, E6D34_21780, EA239_22770, EAI46_07455, EB534_RS01680, EC95NR1_02687, ECs4162, EIA08_23935, EIZ93_12490, EN85_004370, EPS97_20115, ERS085406_04411, ERS139208_04359, EWK56_24975, ExPECSC038_03661, F3P10_05590, F7F11_22745, F7N46_24030, F9413_21255, F9461_25675, F9B07_24705, FA868_22725, FEJ01_22535, FFF58_25475, FGG80_25155, FHD44_21245, FHQ97_20140, FIJ20_21215, FJQ40_18285, FKO60_25615, FN993_004716, FOI11_019280, FOI11_03900, FPI65_20285, FPS11_25450, FTV92_20735, FTV93_20920, FV293_22485, FVB16_04850, FZN31_02655, FZU14_21800, G3V95_19825, G3W53_20935, G4A38_21490, G4A47_20760, G5603_24565, G9448_17095, GAI89_24850, GAJ12_24740, GAJ26_21990, GGB84_004472, GIB53_19420, GJ11_21365, GKF52_21220, GKF66_21525, GKF89_18450, GNW61_16610, GOP14_004268, GOP25_22685, GP711_23285, GP954_00965, GP965_04275, GP975_01165, GP979_02025, GQA06_03970, GQM04_10545, GQM13_25180, GQM17_19895, GQM21_11210, GQN34_23245, GQW07_21570, GRO95_20835, GRW05_09040, GRW24_04775, GRW56_00275, GRW57_03560, GSM54_23350, GSY44_19980, GUC01_21160, H0O53_20850, H0O72_19395, H0P11_20945, H5Z35_004794, H6Y26_003159, HCQ42_003953, HEP30_018615, HEP34_004775, HHH44_004540, HI055_004135, HJQ60_005016, HJY54_004758, HKA49_005040, HLQ92_22620, HLV18_23360, HLX92_10095, HLZ50_22200, HMV95_19585, HMW38_23085, HV109_02210, HV146_21650, HV209_14735, HVV39_09245, HVW04_17555, HVW43_18690, HVY77_02195, HVZ29_19075, HVZ30_02075, HVZ71_02380, HX136_02215, I6H00_20945, I6H02_11970, IFB95_004801, IUD45_003535, J4S20_004807, J5U05_004092, J7T50_001448, JFD_01879, JFD_03708, JNP96_25285, KQ660_11750, NCTC10082_02844, NCTC10089_00507, NCTC10090_03532, NCTC10418_00696, NCTC10429_01100, NCTC10487_00450, NCTC10764_03868, NCTC10767_01521, NCTC10865_00666, NCTC10974_00557, NCTC11112_01031, NCTC11126_02777, NCTC11127_03218, NCTC11181_02743, NCTC11341_01884, NCTC12950_00484, NCTC13127_00792, NCTC13148_03436, NCTC4450_02480, NCTC7927_00556, NCTC7928_02510, NCTC8009_01518, NCTC8179_05948, NCTC8333_00494, NCTC8621_00513, NCTC8622_00501, NCTC8959_03256, NCTC8960_03075, NCTC9001_04259, NCTC9044_01351, NCTC9045_00571, NCTC9050_03616, NCTC9071_00488, NCTC9075_00729, NCTC9077_00609, NCTC9081_00924, NCTC9111_00872, NCTC9117_00760, NCTC9702_00542, NCTC9706_02742, NCTC9775_04008, NCTC9777_01896, NEP60_26270, OS110_25095, RG28_21590, SAMEA3472044_01167, SAMEA3472056_05406, SAMEA3752557_01947, SAMEA3753106_04639, TUM18780_04400, WR15_19585
UniProt
Find proteins for P0A7R9 (Escherichia coli (strain K12)) Explore P0A7R9  Go to UniProtKB:  P0A7R9

Entity ID: 47
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS12	UA [auth sl]	123	Escherichia coli	Mutation(s): 0  Gene Names:  rpsL, rpsL_2, A5U30_003889, A6592_18175, A8499_001308, A8502_001035, A9X72_02055, AC065_16140, ACN81_28395, ACU57_16335, AM464_09350, APX88_20135, AW118_19390, AWP47_12580, B6R12_000406, B6R15_000411, B6R17_004092, B6R31_002238, B6R48_002865, B6R87_002647, BANRA_04338, BB540_24940, BER14_21580, BF481_000994, BG944_001143, BGM66_002197, BHS81_20025, BJI68_15120, BJJ90_01995, BK292_07945, BK383_21385, BKL28_001878, BMT50_12160, BMT91_03340, BR158_000836, BTB68_000004, BTQ06_10750, BUO55_003823, BvCmsKKP061_02719, BvCmsSIP010_02074, BXT93_17220, BZL69_05785, C0P57_000744, C1Q91_001774, C2121_001894, C2M16_10980, C2R31_002848, C3F40_19595, C5N07_11865, C9E67_02665, C9Z68_19360, CA593_09530, CCS08_20045, CCU84_000778, CDL36_09745, CF22_001801, CG692_18330, CG704_07645, CG831_001292, CIG67_21255, CQ986_000431, CQB02_21500, CR538_02285, CR539_21960, CR628_001376, CRM83_22785, CTR35_001824, CV83915_02769, CWS33_10820, CX938_000715, CY655_21380, D1912_26245, D3C88_25690, D3G36_06655, D4M65_08955, D4N09_12780, D6T60_05835, D9D43_04015, D9E34_05370, D9E49_05360, D9H94_02360, D9J03_02800, D9J61_04455, DD762_11810, DIV22_04600, DNQ45_18710, DNX30_18200, DS732_24475, DTL43_13765, DTL90_06910, DTM45_15580, DU321_12135, E0I52_09925, E4K51_10545, E5H86_09220, E6D34_04010, EA239_12250, EAI46_06760, EB534_RS01835, EC95NR1_02719, ECs4193, EIA08_12060, EIZ93_01385, EN85_000596, EPS76_12695, EPS97_04830, ERS085406_01915, ERS139208_04106, EWK56_16220, ExPECSC038_01207, F3P10_03820, F7F11_11880, F7N46_14475, F9413_23615, F9461_02860, F9B07_12795, FA868_17430, FEJ01_10185, FFF58_13835, FGG80_13730, FHD44_12480, FHQ97_05960, FIJ20_20680, FJQ40_03220, FKO60_13770, FN993_002408, FOI11_019055, FOI11_04125, FPI65_20520, FPS11_03565, FTV92_20575, FTV93_20685, FV293_08660, FVB16_09155, FWK02_07820, FZN31_02500, FZU14_04005, G3V95_05795, G3W53_10630, G4A38_16715, G4A47_18305, G5603_11210, G9448_16940, GAI89_06495, GAJ12_06765, GAJ26_22145, GGB84_001627, GIB53_18845, GJ11_21590, GKF52_05665, GKF66_04705, GKF89_12265, GNW61_19825, GOP14_000555, GOP25_12270, GP711_17590, GP965_17670, GQM04_08870, GQM13_20845, GQM17_11035, GQM21_13045, GQN34_11870, GQW07_20360, GRO95_19555, GRW05_23630, GRW24_12145, GRW56_12155, GRW57_13500, GSM54_01330, GSY44_04760, GUC01_14585, GUI33_18070, H0O53_20260, H0O72_13185, H0P11_14900, H5Z35_001968, H6Y26_003204, HCQ42_003768, HEP30_005280, HEP34_002415, HHH44_000548, HI055_002196, HIE29_002006, HJQ60_002804, HJY54_002830, HKA49_001073, HLQ92_04845, HLV18_11670, HLX92_09940, HLZ50_06780, HMV95_07635, HMW38_08385, HV109_01985, HV146_21805, HV209_14580, HVV39_09470, HVW04_17400, HVW43_18535, HVY77_01970, HVZ29_19230, HVZ30_01920, HVZ71_02225, HX136_01990, I6H00_20790, I6H02_12125, IFB95_001027, IUD45_003566, J0541_002092, J4S20_001155, J5U05_000731, J7T50_001493, JFD_01925, JFD_03753, JNP96_25510, KQ660_11905, NCTC10082_02799, NCTC10089_00476, NCTC10090_03501, NCTC10487_00418, NCTC10764_03836, NCTC10767_01481, NCTC10974_00472, NCTC11112_01085, NCTC11126_02723, NCTC11127_03263, NCTC11181_02712, NCTC11341_01920, NCTC12950_00439, NCTC13127_00758, NCTC13148_03489, NCTC4450_02449, NCTC7922_04088, NCTC7927_00509, NCTC8009_01480, NCTC8179_05915, NCTC8333_00463, NCTC8450_04911, NCTC8621_00480, NCTC8959_03287, NCTC8960_03044, NCTC8985_04955, NCTC9001_04208, NCTC9044_01386, NCTC9045_00521, NCTC9050_03585, NCTC9071_00443, NCTC9081_00877, NCTC9111_00841, NCTC9702_00511, NCTC9706_02614, NCTC9775_03976, NCTC9777_01848, NCTC9962_06745, NEP60_15855, OS110_10240, RG28_21750, SAMEA3472044_01122, SAMEA3472056_01947, SAMEA3752557_01992, SAMEA3753106_01938, TUM18780_04100, WR15_02645
UniProt
Find proteins for P0A7S3 (Escherichia coli (strain K12)) Explore P0A7S3  Go to UniProtKB:  P0A7S3

Entity ID: 48
Molecule	Chains	Sequence Length	Organism	Details	Image

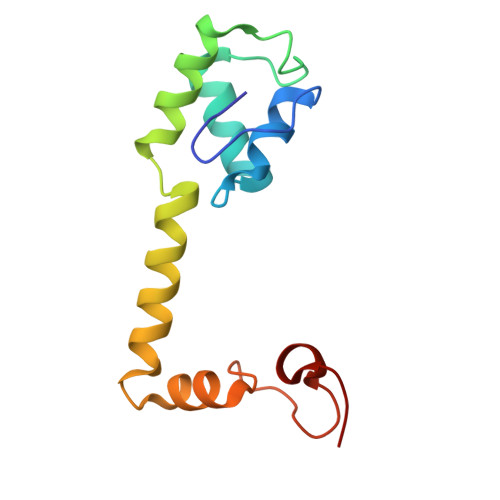

30S ribosomal protein S13	VA [auth sm]	114	Escherichia coli	Mutation(s): 0  Gene Names: rpsM, A13A_03621
UniProt
Find proteins for P0A7S9 (Escherichia coli (strain K12)) Explore P0A7S9  Go to UniProtKB:  P0A7S9

Entity ID: 49
Molecule	Chains	Sequence Length	Organism	Details	Image

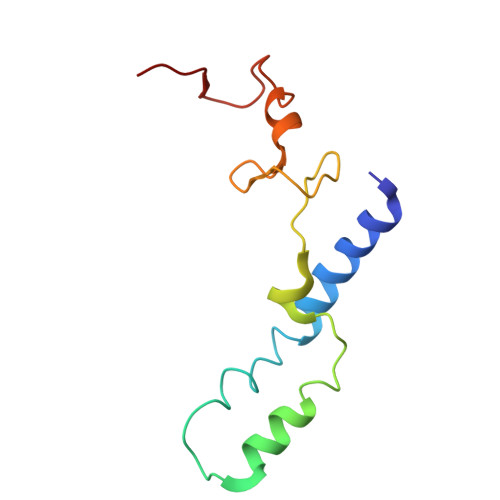

Small ribosomal subunit protein uS14	WA [auth sn]	100	Escherichia coli	Mutation(s): 0  Gene Names: rpsN, EIMP300_17810
UniProt
Find proteins for P0AG59 (Escherichia coli (strain K12)) Explore P0AG59  Go to UniProtKB:  P0AG59

Entity ID: 50
Molecule	Chains	Sequence Length	Organism	Details	Image

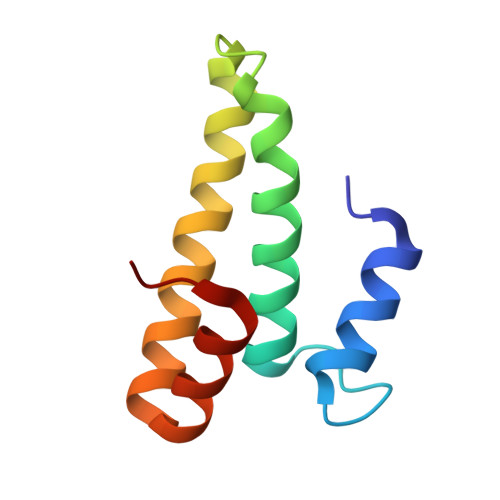

Small ribosomal subunit protein uS15	XA [auth so]	88	Escherichia coli	Mutation(s): 0  Gene Names: rpsO, secC, b3165, JW3134
UniProt
Find proteins for P0ADZ4 (Escherichia coli (strain K12)) Explore P0ADZ4  Go to UniProtKB:  P0ADZ4

Entity ID: 51
Molecule	Chains	Sequence Length	Organism	Details	Image

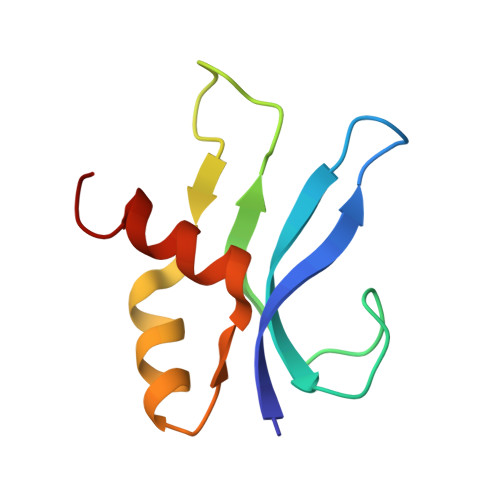

Small ribosomal subunit protein bS16	YA [auth sp]	82	Escherichia coli	Mutation(s): 0  Gene Names: rpsP
UniProt
Find proteins for P0A7T3 (Escherichia coli (strain K12)) Explore P0A7T3  Go to UniProtKB:  P0A7T3

Entity ID: 52
Molecule	Chains	Sequence Length	Organism	Details	Image

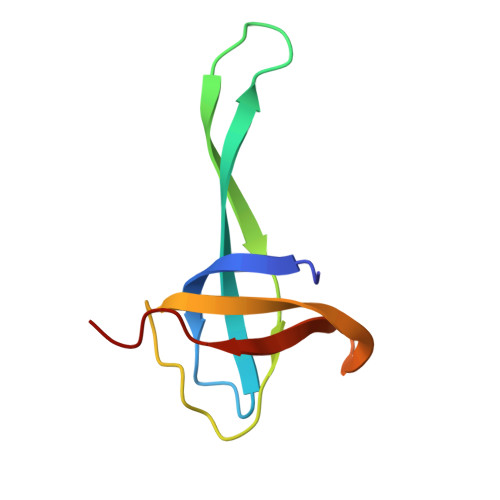

Small ribosomal subunit protein uS17	ZA [auth sq]	80	Escherichia coli	Mutation(s): 0  Gene Names: rpsQ, neaA, b3311, JW3273
UniProt
Find proteins for P0AG63 (Escherichia coli (strain K12)) Explore P0AG63  Go to UniProtKB:  P0AG63

Entity ID: 53
Molecule	Chains	Sequence Length	Organism	Details	Image

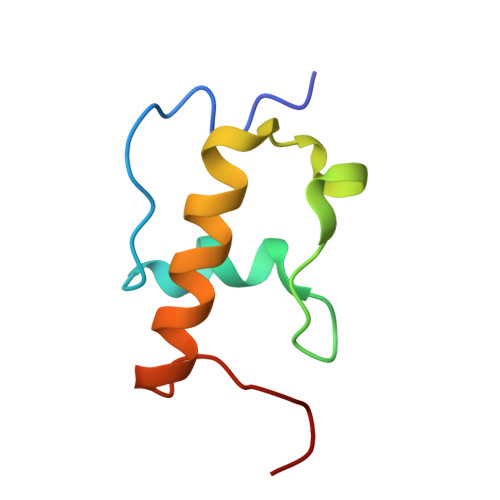

30S ribosomal protein S18	AB [auth sr]	65	Escherichia coli	Mutation(s): 0  Gene Names: rpsR, ECW_m4565
UniProt
Find proteins for P0A7T7 (Escherichia coli (strain K12)) Explore P0A7T7  Go to UniProtKB:  P0A7T7

Entity ID: 54
Molecule	Chains	Sequence Length	Organism	Details	Image

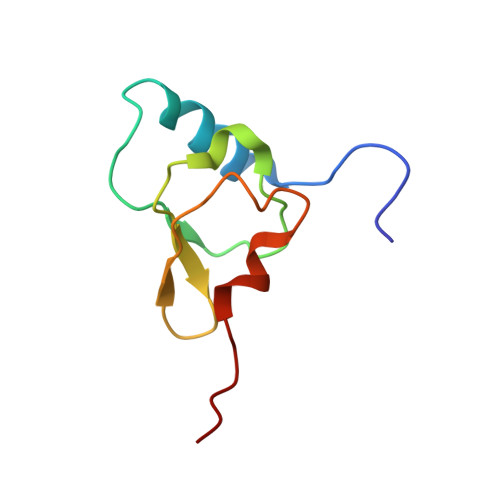

30S ribosomal protein S19	BB [auth ss]	79	Escherichia coli	Mutation(s): 0  Gene Names: rpsS, ECKIH15140_04691
UniProt
Find proteins for P0A7U3 (Escherichia coli (strain K12)) Explore P0A7U3  Go to UniProtKB:  P0A7U3

Entity ID: 55
Molecule	Chains	Sequence Length	Organism	Details	Image

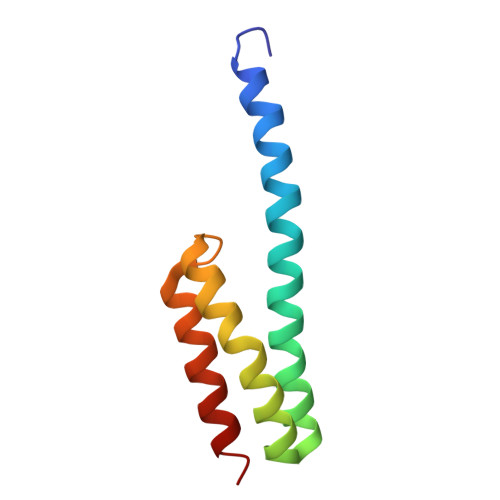

30S ribosomal protein S20	CB [auth st]	85	Escherichia coli	Mutation(s): 0  Gene Names: rpsT
UniProt
Find proteins for P0A7U7 (Escherichia coli (strain K12)) Explore P0A7U7  Go to UniProtKB:  P0A7U7

Entity ID: 56
Molecule	Chains	Sequence Length	Organism	Details	Image

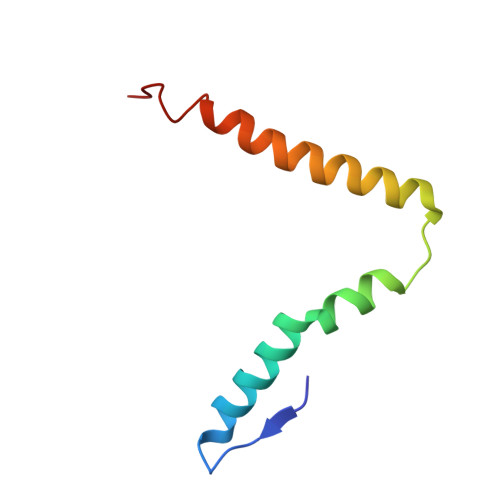

Small ribosomal subunit protein bS21	DB [auth su]	70	Escherichia coli	Mutation(s): 0  Gene Names: rpsU, b3065, JW3037
UniProt
Find proteins for P68679 (Escherichia coli (strain K12)) Explore P68679  Go to UniProtKB:  P68679

Entity ID: 32
Molecule	Chains	Length	Organism	Image

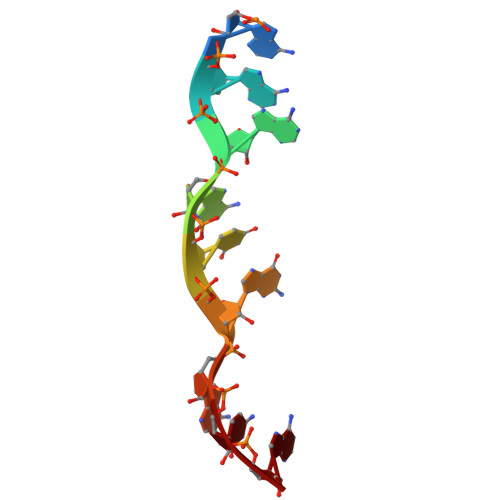

mRNA	FA [auth M]	9	Escherichia coli

Entity ID: 33
Molecule	Chains	Length	Organism	Image
23S ribosomal RNA	GA [auth R1]	2,903	Escherichia coli

Entity ID: 34
Molecule	Chains	Length	Organism	Image
5S ribosomal RNA	HA [auth R2]	119	Escherichia coli

Entity ID: 35
Molecule	Chains	Length	Organism	Image

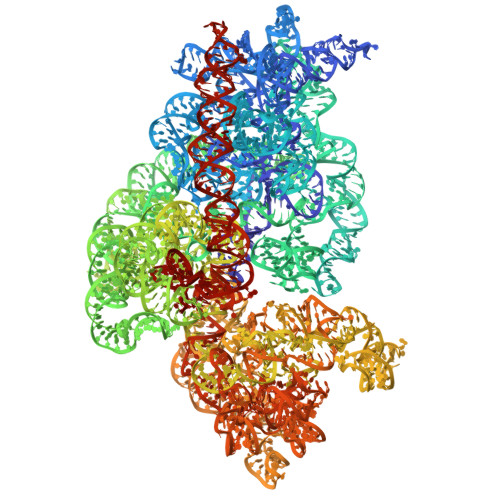

16S ribosomal RNA	IA [auth R3]	1,531	Escherichia coli

Entity ID: 36
Molecule	Chains	Length	Organism	Image

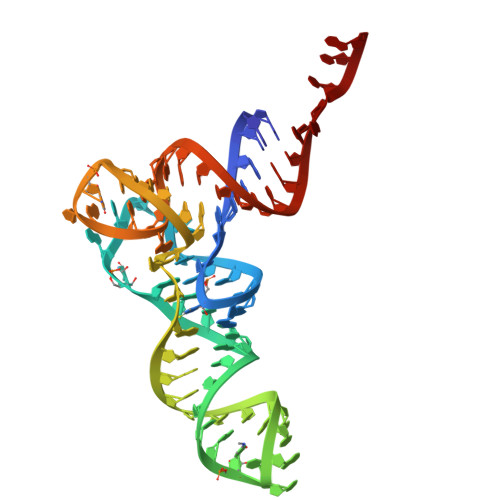

tRNA	JA [auth T]	77	Escherichia coli

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ATP	GB [auth E], HB [auth E]	ADENOSINE-5'-TRIPHOSPHATE C10 H16 N5 O13 P3 ZKHQWZAMYRWXGA-KQYNXXCUSA-N
FME	SM [auth T]	N-FORMYLMETHIONINE C6 H11 N O3 S PYUSHNKNPOHWEZ-YFKPBYRVSA-N
MG	AC [auth R1], AD [auth R1], AE [auth R1], AF [auth R1], AG [auth R1], AH [auth R1], AI [auth R1], AJ [auth R1], AK [auth R3], AL [auth R3], AM [auth R3], BC [auth R1], BD [auth R1], BE [auth R1], BF [auth R1], BG [auth R1], BH [auth R1], BI [auth R1], BJ [auth R1], BK [auth R3], BL [auth R3], BM [auth R3], CC [auth R1], CD [auth R1], CE [auth R1], CF [auth R1], CG [auth R1], CH [auth R1], CI [auth R1], CJ [auth R1], CK [auth R3], CL [auth R3], CM [auth R3], DC [auth R1], DD [auth R1], DE [auth R1], DF [auth R1], DG [auth R1], DH [auth R1], DI [auth R1], DJ [auth R1], DK [auth R3], DL [auth R3], DM [auth R3], EB [auth 15], EC [auth R1], ED [auth R1], EE [auth R1], EF [auth R1], EG [auth R1], EH [auth R1], EI [auth R1], EJ [auth R1], EK [auth R3], EL [auth R3], EM [auth R3], FB [auth 17], FC [auth R1], FD [auth R1], FE [auth R1], FF [auth R1], FG [auth R1], FH [auth R1], FI [auth R1], FJ [auth R1], FK [auth R3], FL [auth R3], FM [auth R3], GC [auth R1], GD [auth R1], GE [auth R1], GF [auth R1], GG [auth R1], GH [auth R1], GI [auth R1], GJ [auth R1], GK [auth R3], GL [auth R3], GM [auth R3], HC [auth R1], HD [auth R1], HE [auth R1], HF [auth R1], HG [auth R1], HH [auth R1], HI [auth R1], HJ [auth R3], HK [auth R3], HL [auth R3], HM [auth R3], IC [auth R1], ID [auth R1], IE [auth R1], IF [auth R1], IG [auth R1], IH [auth R1], II [auth R1], IJ [auth R3], IK [auth R3], IL [auth R3], IM [auth R3], JC [auth R1], JD [auth R1], JE [auth R1], JF [auth R1], JG [auth R1], JH [auth R1], JI [auth R1], JJ [auth R3], JK [auth R3], JL [auth R3], JM [auth R3], KB [auth M], KC [auth R1], KD [auth R1], KE [auth R1], KF [auth R1], KG [auth R1], KH [auth R1], KI [auth R1], KJ [auth R3], KK [auth R3], KL [auth R3], KM [auth R3], LB [auth R1], LC [auth R1], LD [auth R1], LE [auth R1], LF [auth R1], LG [auth R1], LH [auth R1], LI [auth R1], LJ [auth R3], LK [auth R3], LL [auth R3], LM [auth R3], MB [auth R1], MC [auth R1], MD [auth R1], ME [auth R1], MF [auth R1], MG [auth R1], MH [auth R1], MI [auth R1], MJ [auth R3], MK [auth R3], ML [auth R3], MM [auth R3], NB [auth R1], NC [auth R1], ND [auth R1], NE [auth R1], NF [auth R1], NG [auth R1], NH [auth R1], NI [auth R1], NJ [auth R3], NK [auth R3], NL [auth R3], NM [auth R3], OB [auth R1], OC [auth R1], OD [auth R1], OE [auth R1], OF [auth R1], OG [auth R1], OH [auth R1], OI [auth R1], OJ [auth R3], OK [auth R3], OL [auth R3], OM [auth R3], PB [auth R1], PC [auth R1], PD [auth R1], PE [auth R1], PF [auth R1], PG [auth R1], PH [auth R1], PI [auth R1], PJ [auth R3], PK [auth R3], PL [auth R3], PM [auth R3], QB [auth R1], QC [auth R1], QD [auth R1], QE [auth R1], QF [auth R1], QG [auth R1], QH [auth R1], QI [auth R1], QJ [auth R3], QK [auth R3], QL [auth R3], QM [auth R3], RB [auth R1], RC [auth R1], RD [auth R1], RE [auth R1], RF [auth R1], RG [auth R1], RH [auth R1], RI [auth R1], RJ [auth R3], RK [auth R3], RL [auth R3], RM [auth R3], SB [auth R1], SC [auth R1], SD [auth R1], SE [auth R1], SF [auth R1], SG [auth R1], SH [auth R1], SI [auth R1], SJ [auth R3], SK [auth R3], SL [auth R3], TB [auth R1], TC [auth R1], TD [auth R1], TE [auth R1], TF [auth R1], TG [auth R1], TH [auth R1], TI [auth R1], TJ [auth R3], TK [auth R3], TL [auth R3], TM [auth sn], UB [auth R1], UC [auth R1], UD [auth R1], UE [auth R1], UF [auth R1], UG [auth R1], UH [auth R1], UI [auth R1], UJ [auth R3], UK [auth R3], UL [auth R3], UM [auth sq], VB [auth R1], VC [auth R1], VD [auth R1], VE [auth R1], VF [auth R1], VG [auth R1], VH [auth R1], VI [auth R1], VJ [auth R3], VK [auth R3], VL [auth R3], WB [auth R1], WC [auth R1], WD [auth R1], WE [auth R1], WF [auth R1], WG [auth R1], WH [auth R1], WI [auth R1], WJ [auth R3], WK [auth R3], WL [auth R3], XB [auth R1], XC [auth R1], XD [auth R1], XE [auth R1], XF [auth R1], XG [auth R1], XH [auth R1], XI [auth R1], XJ [auth R3], XK [auth R3], XL [auth R3], YB [auth R1], YC [auth R1], YD [auth R1], YE [auth R1], YF [auth R1], YG [auth R1], YH [auth R1], YI [auth R1], YJ [auth R3], YK [auth R3], YL [auth R3], ZB [auth R1], ZC [auth R1], ZD [auth R1], ZE [auth R1], ZF [auth R1], ZG [auth R1], ZH [auth R1], ZI [auth R1], ZJ [auth R3], ZK [auth R3], ZL [auth R3]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N
NA	IB [auth E], JB [auth E]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.20 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-04-02
Deposition Author(s): Singh, S., Hunt, J.F.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)	United States	--

Revision History

• Version 1.0: 2025-04-02
  Type: Initial release
