9L77 | pdb_00009l77

Serine Beta-Lactamase OXA-48 in complex with Dual MBL/SBL inhibitor B33

PDB DOI: https://doi.org/10.2210/pdb9L77/pdb

Classification: HYDROLASE
Organism(s): Klebsiella pneumoniae
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-12-26 Released: 2025-12-31
Deposition Author(s): Li, G.-B., Liang, G.-Q.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free:
0.171 (Depositor), 0.171 (DCC)
R-Value Work:
0.151 (Depositor)
R-Value Observed:
0.151 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9L77

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

A class of novel, potent,dual-acting benzoquinte-borate Beta-lactamase inhibitors targeting SBL/MBL

Li, G.-B., Liang, G.-Q.

To be published.

Macromolecule Content

Total Structure Weight: 113.39 kDa
Atom Count: 9,089
Modeled Residue Count: 964
Deposited Residue Count: 968
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

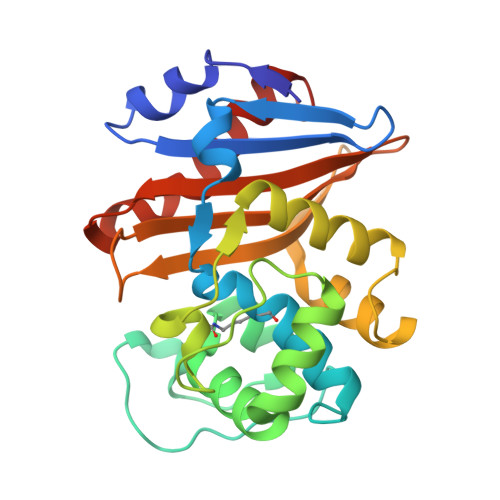

Beta-lactamase	A, B, C, D	242	Klebsiella pneumoniae	Mutation(s): 0 Gene Names: bla, PHDFNENF_00011 EC: 3.5.2.6
UniProt
Find proteins for A0A866WQ05 (Klebsiella pneumoniae) Explore A0A866WQ05 Go to UniProtKB: A0A866WQ05
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A866WQ05
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1EIQ (Subject of Investigation/LOI) Query on A1EIQ Download:Ideal Coordinates CCD File SDF format, chain H [auth D] SDF format, chain G [auth C] SDF format, chain F [auth B] SDF format, chain E [auth A] MOL2 format, chain H [auth D] MOL2 format, chain G [auth C] MOL2 format, chain F [auth B] MOL2 format, chain E [auth A] mmCIF format, chain H [auth D] mmCIF format, chain G [auth C] mmCIF format, chain F [auth B] mmCIF format, chain E [auth A]	E [auth A], F [auth B], G [auth C], H [auth D]	(3~{R})-3-[(3~{R})-6-fluoranyl-1-oxidanyl-3~{H}-2,1-benzoxaborol-3-yl]-2-methylidene-butanoic acid C₁₂ H₁₂ B F O₄ PGNFEWJWFZLGLG-KSBSHMNSSA-N		Interactions Focus chain E [auth A] Focus chain F [auth B] Focus chain G [auth C] Focus chain H [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth B] Focus chain G [auth C] Focus chain H [auth D]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
KCX Query on KCX	A, B, C, D	L-PEPTIDE LINKING	C₇ H₁₄ N₂ O₄		LYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free: 0.171 (Depositor), 0.171 (DCC)
R-Value Work: 0.151 (Depositor)
R-Value Observed: 0.151 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 58.406	α = 90
b = 106.039	β = 107.75
c = 94.024	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
SCALEPACK	data scaling
HKL-3000	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-31

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	81874291; 81502989

Revision History (Full details and data files)

Version 1.0: 2025-12-31
Type: Initial release
