9K8P | pdb_00009k8p

Crystal structure of a short zinc-dependent DNAzyme minGAA, dimeric form

PDB DOI: https://doi.org/10.2210/pdb9K8P/pdb
NAKB: 9K8P

Classification: DNA-RNA HYBRID
Organism(s): synthetic construct
Mutation(s): No

Deposited: 2024-10-24 Released: 2025-10-29
Deposition Author(s): Yamasaki, K., Yamasaki, T., Kubota, T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.85 Å
R-Value Free:
0.329 (Depositor), 0.325 (DCC)
R-Value Work:
0.243 (Depositor), 0.240 (DCC)
R-Value Observed:
0.248 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

A minimal Zn2+-dependent RNA-cleaving DNAzyme and its B-DNA-like crystal and solution structures

Yamasaki, K., Inomata, R., Yamasaki, T., Kubota, T., Miyashita, N., Takeuchi, K., Miyagishi, M.

To be published.

Macromolecule Content

Total Structure Weight: 16.45 kDa
Atom Count: 1,101
Modeled Residue Count: 52
Deposited Residue Count: 52
Unique hybrid chains: 1

Macromolecules

Find similar nucleic acids by: | 3D Structure

Entity ID: 1
Molecule	Chains	Length	Organism	Image

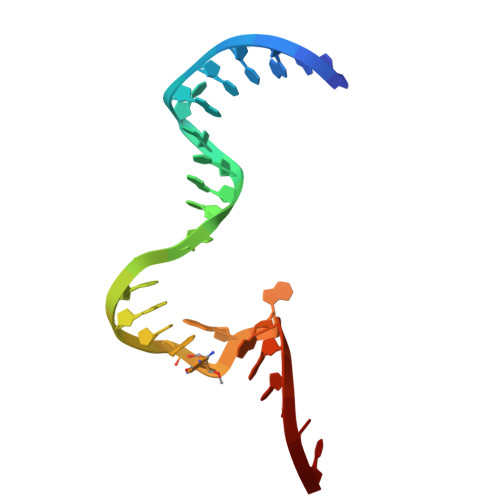

DNAzyme minGAA	A, B	26	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth B] SDF format, chain F [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth B] MOL2 format, chain F [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth B] mmCIF format, chain F [auth B]	C [auth A], D [auth A], E [auth B], F [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Focus chain F [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Focus chain F [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.85 Å
R-Value Free: 0.329 (Depositor), 0.325 (DCC)
R-Value Work: 0.243 (Depositor), 0.240 (DCC)
R-Value Observed: 0.248 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 68.096	α = 90
b = 50.382	β = 106.95
c = 51.382	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
XDS	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
