9JYY | pdb_00009jyy

core proteins of mature T7


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Conformational changes in and translocation of small proteins: insights into the ejection mechanism of podophages.

Zheng, J.Xiao, H.Pang, H.Wang, L.Song, J.Chen, W.Cheng, L.Liu, H.

(2025) J Virol 99: e0124924-e0124924

  • DOI: https://doi.org/10.1128/jvi.01249-24
  • Primary Citation of Related Structures:
    9JYY, 9JYZ, 9JZ0

  • PubMed Abstract:

    Podophage tails are too short to span the cell envelope during infection. Consequently, podophages initially eject the core proteins within the head for the formation of an elongated trans-envelope channel for DNA ejection. Although the core proteins of bacteriophage T7 have been resolved at near-atomic resolution, the mechanisms of core proteins and DNA ejection remain to be fully elucidated. In this study, we provided improved structures of core proteins in mature T7 and the portal-tail complex in lipopolysaccharide-induced DNA-ejected T7 to resolutions of approximately 3 Å. Using these structures, we identified three small proteins, namely gp14, gp6.7, and gp7.3, and illustrated the conformational changes in and translocation of these proteins from the mature to DNA-ejected states. Our structures indicate that gp6.7, which participates in the assembly of the core and trans-envelope channel, is a core protein, and that gp7.3 serves as a structural scaffold to assist the assembly of the nozzle into the adaptor. Podophage T7 core proteins form an elongated trans-envelope channel for genomic DNA delivery into the host cell. The structures of the core proteins within the mature T7 and assembled in the periplasmic tunnel form in the DNA-ejected T7 have been resolved previously. Here, we resolved the structures of two new structural proteins (gp6.7 and gp7.3) within mature T7 and receptor-induced DNA-ejected T7. The gp6.7 protein participates in the assembly of the core complex within mature T7 and the trans-envelope channel during T7 infection; therefore, gp6.7 is a core protein. Before T7 infection, gp7.3 plays a role in promoting the assembly of the nozzle into the adaptor.


  • Organizational Affiliation
    • Institute of Interdisciplinary Studies, Key Laboratory for Matter Microstructure and Function of Hunan Province, Key Laboratory of Low-dimensional Quantum Structures and Quantum Control, School of Physics and Electronics, Hunan Normal University, Changsha, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

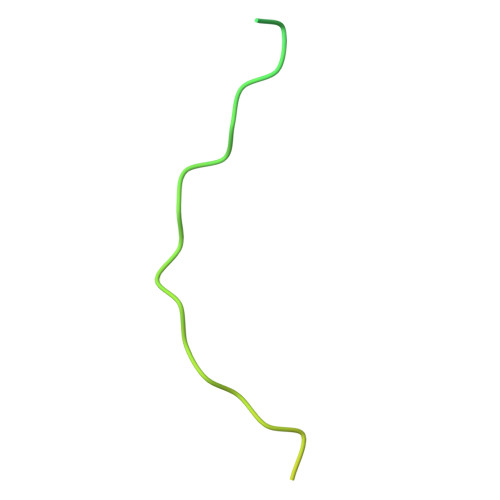

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Protein 6.788Escherichia phage T7Mutation(s): 0
UniProt
Find proteins for P03801 (Escherichia phage T7)
Explore P03801
Go to UniProtKB:  P03801
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03801
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

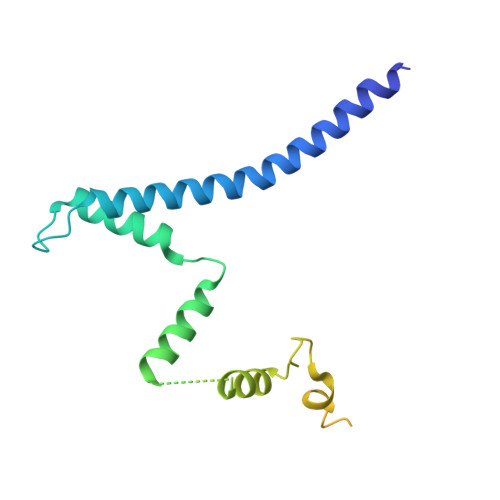

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Internal virion protein gp14196Escherichia phage T7Mutation(s): 0
UniProt
Find proteins for P03724 (Escherichia phage T7)
Explore P03724
Go to UniProtKB:  P03724
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03724
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

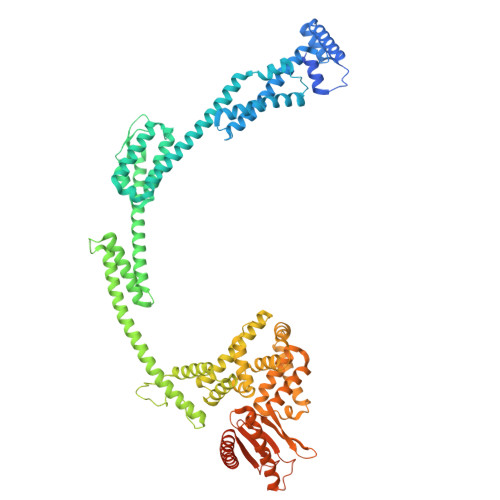

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Internal virion protein gp15747Escherichia phage T7Mutation(s): 0
UniProt
Find proteins for P03725 (Escherichia phage T7)
Explore P03725
Go to UniProtKB:  P03725
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03725
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

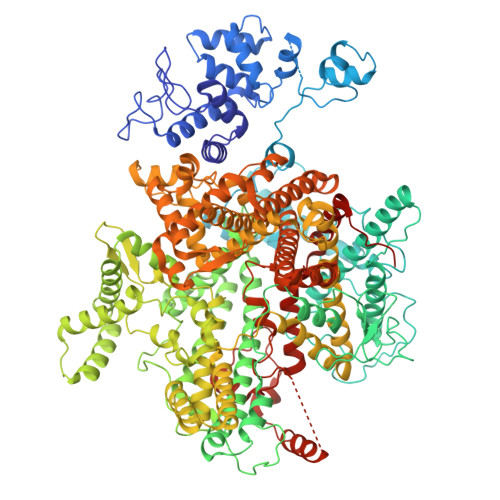

Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Peptidoglycan transglycosylase gp16AA [auth K],
BA [auth L],
Y [auth I],
Z [auth J]
1,318Escherichia phage T7Mutation(s): 0
EC: 4.2.2
UniProt
Find proteins for P03726 (Escherichia phage T7)
Explore P03726
Go to UniProtKB:  P03726
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03726
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China12034006
National Natural Science Foundation of China (NSFC)China32430020
National Natural Science Foundation of China (NSFC)China32071209
National Natural Science Foundation of China (NSFC)China32371263
National Natural Science Foundation of China (NSFC)China32200994
National Natural Science Foundation of China (NSFC)China32401014

Revision History  (Full details and data files)

  • Version 1.0: 2024-12-11
    Type: Initial release
  • Version 1.1: 2025-06-25
    Changes: Data collection, Database references
