9JME | pdb_00009jme

Cryo-EM structure of BV gB and FAB 16F9 complex

• PDB DOI: https://doi.org/10.2210/pdb9JME/pdb
• EM Map EMD-61599: EMDB EMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): Mus musculus, Macacine alphaherpesvirus 1
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2024-09-20 Released: 2025-09-24
• Deposition Author(s): Li, Y., Zheng, Q., Li, S.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.18 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM structure of BV gB and FAB 16F9 complex

Li, Y., Zheng, Q., Li, S.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 3-mer - A2B1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 176.79 kDa
• Atom Count: 5,749
• Modeled Residue Count: 722
• Deposited Residue Count: 1,601
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

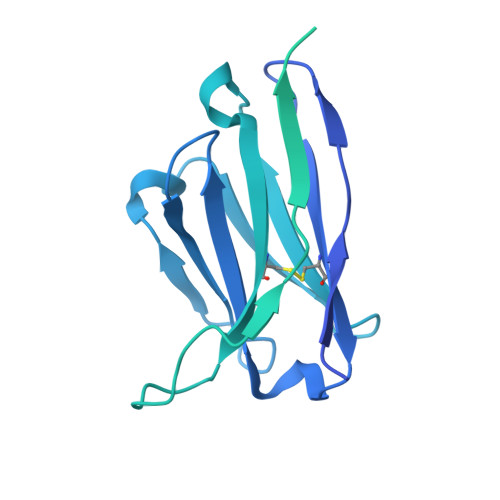

16F9 VH	A [auth H]	477	Mus musculus	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

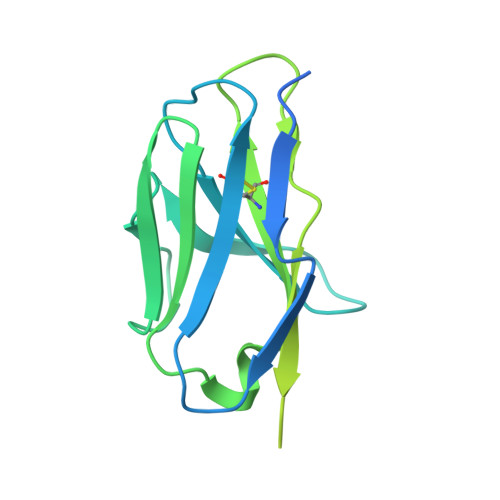

16F9 VL	B [auth L]	232	Mus musculus	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

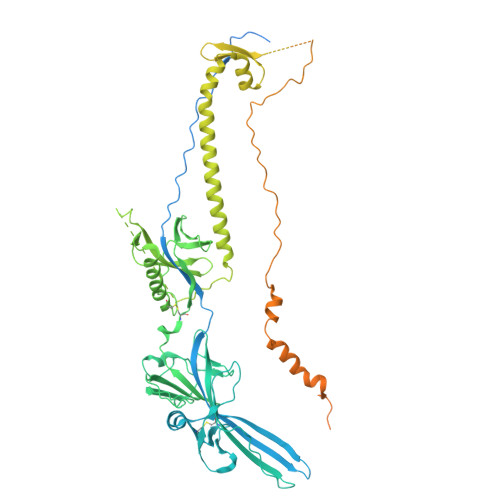

Virion glycoprotein B	C [auth A]	892	Macacine alphaherpesvirus 1	Mutation(s): 0  Gene Names: UL27
UniProt
Find proteins for Q7T5E1 (Cercopithecine herpesvirus 1 (strain E2490)) Explore Q7T5E1  Go to UniProtKB:  Q7T5E1

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.18 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-09-24
Deposition Author(s): Li, Y., Zheng, Q., Li, S.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-09-24
  Type: Initial release
