9H33 | pdb_00009h33

T2R-TTL-PROTAC2 complex

PDB DOI: https://doi.org/10.2210/pdb9H33/pdb

Classification: CELL CYCLE
Organism(s): Bos taurus, Rattus norvegicus, Gallus gallus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-10-15 Released: 2025-10-29
Deposition Author(s): Maiocchi, A., Abel, A.-C., Boiarska, Z., Steinmetz, M.O., Passarella, D., Prota, A.E.
Funding Organization(s): European Union (EU), Swiss National Science Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.30 Å
R-Value Free:
0.228 (Depositor), 0.229 (DCC)
R-Value Work:
0.199 (Depositor), 0.199 (DCC)
R-Value Observed:
0.200 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Effective Tubulin Degradation by Rationally Designed Proteolysis Targeting Chimeras

Maiocchi, A., Abel, A.C., Basellini, M., Perez-Pena, H., Boiarska, Z., Ferrandi, E.E., Kozicka, Z., Fasano, V., Pieraccini, S., Cappelletti, G., Steinmetz, M.O., Passarella, D., Prota, A.E.

(2025) bioRxiv

DOI: https://doi.org/10.1101/2025.05.22.655572

Macromolecule Content

Total Structure Weight: 265.65 kDa
Atom Count: 17,934
Modeled Residue Count: 2,196
Deposited Residue Count: 2,318
Unique protein chains: 4

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Tubulin alpha-1B chain	A, C	451	Bos taurus	Mutation(s): 0 EC: 3.6.5
UniProt
Find proteins for P81947 (Bos taurus) Explore P81947 Go to UniProtKB: P81947
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P81947
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2

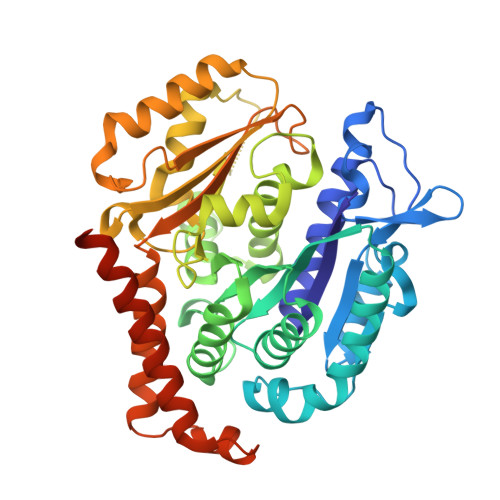

Molecule	Chains	Sequence Length	Organism	Details	Image
Tubulin beta-2B chain	B, D	445	Bos taurus	Mutation(s): 0
UniProt
Find proteins for Q6B856 (Bos taurus) Explore Q6B856 Go to UniProtKB: Q6B856
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q6B856
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3

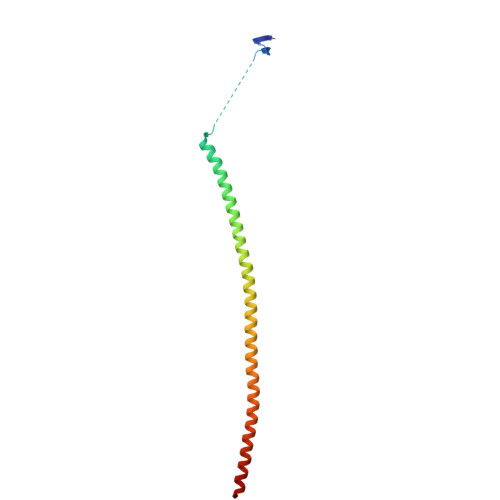

Molecule	Chains	Sequence Length	Organism	Details	Image
Stathmin-4	E	142	Rattus norvegicus	Mutation(s): 0 Gene Names: Stmn4
UniProt
Find proteins for P63043 (Rattus norvegicus) Explore P63043 Go to UniProtKB: P63043
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P63043
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4

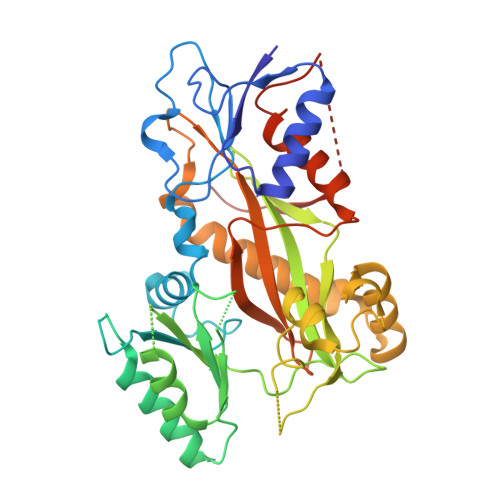

Molecule	Chains	Sequence Length	Organism	Details	Image
Tubulin--tyrosine ligase	F	384	Gallus gallus	Mutation(s): 0 Gene Names: TTL EC: 6.3.2.25
UniProt
Find proteins for A0A8V0Z8P0 (Gallus gallus) Explore A0A8V0Z8P0 Go to UniProtKB: A0A8V0Z8P0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8V0Z8P0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 8 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1ISC (Subject of Investigation/LOI) Query on A1ISC Download:Ideal Coordinates CCD File SDF format, chain U [auth D] MOL2 format, chain U [auth D] mmCIF format, chain U [auth D]	U [auth D]	(1S,2R,3S,5S,6S,16E,18E,20R,21S)-11-chloro-21-hydroxy-12,20-dimethoxy-2,5,9,16-tetramethyl-8,23-dioxo-4,24-dioxa-9,22-diazatetracyclo[19.3.1.1~10,14~.0~3,5~]hexacosa-10(26),11,13,16,18-pentaen-6-yl 5-{1-[6-({(4R)-2-[(3R)-2,6-dioxopiperidin-3-yl]-1-oxo-2,4-dihydro-1H-isoindol-4-yl}amino)-6-oxohexyl]-1H-1,2,3-triazol-4-yl}pentanoate C₅₄ H₆₇ Cl N₈ O₁₃ PJCXSAUIJFPNHQ-TVSFCQIVSA-N		Interactions Focus chain U [auth D] Interactions & Density Focus chain U [auth D]
GTP Query on GTP Download:Ideal Coordinates CCD File SDF format, chain P [auth C] SDF format, chain G [auth A] MOL2 format, chain P [auth C] MOL2 format, chain G [auth A] mmCIF format, chain P [auth C] mmCIF format, chain G [auth A]	G [auth A], P [auth C]	GUANOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₄ P₃ XKMLYUALXHKNFT-UUOKFMHZSA-N		Interactions Focus chain G [auth A] Focus chain P [auth C] Interactions & Density Focus chain G [auth A] Focus chain P [auth C]
ACP Query on ACP Download:Ideal Coordinates CCD File SDF format, chain V [auth F] MOL2 format, chain V [auth F] mmCIF format, chain V [auth F]	V [auth F]	PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER C₁₁ H₁₈ N₅ O₁₂ P₃ UFZTZBNSLXELAL-IOSLPCCCSA-N		Interactions Focus chain V [auth F] Interactions & Density Focus chain V [auth F]
GDP Query on GDP Download:Ideal Coordinates CCD File SDF format, chain S [auth D] SDF format, chain K [auth B] MOL2 format, chain S [auth D] MOL2 format, chain K [auth B] mmCIF format, chain S [auth D] mmCIF format, chain K [auth B]	K [auth B], S [auth D]	GUANOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₁ P₂ QGWNDRXFNXRZMB-UUOKFMHZSA-N		Interactions Focus chain K [auth B] Focus chain S [auth D] Interactions & Density Focus chain K [auth B] Focus chain S [auth D]
MES Query on MES Download:Ideal Coordinates CCD File SDF format, chain N [auth B] MOL2 format, chain N [auth B] mmCIF format, chain N [auth B]	N [auth B]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C₆ H₁₃ N O₄ S SXGZJKUKBWWHRA-UHFFFAOYSA-N		Interactions Focus chain N [auth B] Interactions & Density Focus chain N [auth B]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain O [auth B] MOL2 format, chain O [auth B] mmCIF format, chain O [auth B]	O [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain O [auth B] Interactions & Density Focus chain O [auth B]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain R [auth C] SDF format, chain M [auth B] SDF format, chain J [auth A] SDF format, chain I [auth A] MOL2 format, chain R [auth C] MOL2 format, chain M [auth B] MOL2 format, chain J [auth A] MOL2 format, chain I [auth A] mmCIF format, chain R [auth C] mmCIF format, chain M [auth B] mmCIF format, chain J [auth A] mmCIF format, chain I [auth A]	I [auth A], J [auth A], M [auth B], R [auth C]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain M [auth B] Focus chain R [auth C] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain M [auth B] Focus chain R [auth C]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain W [auth F] SDF format, chain T [auth D] SDF format, chain Q [auth C] SDF format, chain L [auth B] SDF format, chain H [auth A] MOL2 format, chain W [auth F] MOL2 format, chain T [auth D] MOL2 format, chain Q [auth C] MOL2 format, chain L [auth B] MOL2 format, chain H [auth A] mmCIF format, chain W [auth F] mmCIF format, chain T [auth D] mmCIF format, chain Q [auth C] mmCIF format, chain L [auth B] mmCIF format, chain H [auth A]	H [auth A], L [auth B], Q [auth C], T [auth D], W [auth F]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain L [auth B] Focus chain Q [auth C] Focus chain T [auth D] Focus chain W [auth F] Interactions & Density Focus chain H [auth A] Focus chain L [auth B] Focus chain Q [auth C] Focus chain T [auth D] Focus chain W [auth F]
