9GI1 | pdb_00009gi1

Structure of the S.aureus MecA/ClpC/ClpP degradation system

PDB DOI: https://doi.org/10.2210/pdb9GI1/pdb
EM Map EMD-51367: EMDB EMDataResource

Classification: CHAPERONE
Organism(s): Staphylococcus aureus, Escherichia coli
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-08-16 Released: 2025-08-20
Deposition Author(s): Azinas, S., Wallden, K., Katikaridis, P., Schahl, A., Mogk, A., Carroni, M.
Funding Organization(s): Knut and Alice Wallenberg Foundation

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

ClpC and ClpP act as reciprocal allosteric activators to form a highly efficient AAA+ protease

Azinas, S., Wallden, K., Katikaridis, P., Schahl, A., Mogk, A., Carroni, M.

To be published.

Macromolecule Content

Total Structure Weight: 855.95 kDa
Atom Count: 47,097
Modeled Residue Count: 6,024
Deposited Residue Count: 7,666
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
ATP-dependent Clp protease proteolytic subunit	A [auth Pa] B [auth Pb] C [auth Pc] D [auth Pd] E [auth Pe] A [auth Pa], B [auth Pb], C [auth Pc], D [auth Pd], E [auth Pe], F [auth Pf], G [auth Pg], H [auth Ph], I [auth Pi], J [auth Pl], K [auth Pm], L [auth Pn], M [auth Po], N [auth Pq]	195	Staphylococcus aureus	Mutation(s): 0 Gene Names: clpP, SAOUHSC_00790 EC: 3.4.21.92
UniProt
Find proteins for Q2G036 (Staphylococcus aureus (strain NCTC 8325 / PS 47)) Explore Q2G036 Go to UniProtKB: Q2G036
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q2G036
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

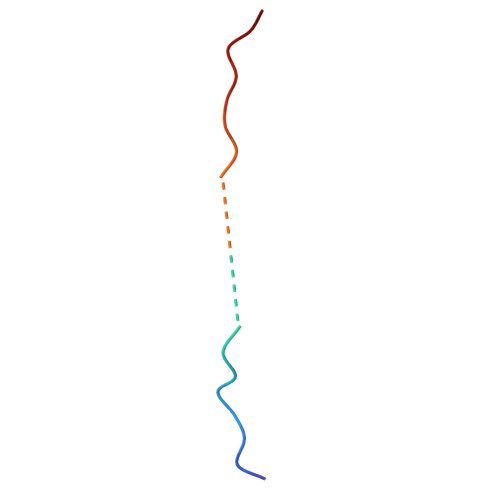

Unidentified substrate of the MecA-ClpC-ClpP complex from S.aureus	O [auth S]	28	Escherichia coli	Mutation(s): 0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
ATP-dependent Clp protease ATP-binding subunit ClpC	P [auth a] Q [auth b] R [auth c] S [auth d] T [auth e] P [auth a], Q [auth b], R [auth c], S [auth d], T [auth e], U [auth f]	818	Staphylococcus aureus	Mutation(s): 0 Gene Names: clpC, SAOUHSC_00505
UniProt
Find proteins for Q2G0P5 (Staphylococcus aureus (strain NCTC 8325 / PS 47)) Explore Q2G0P5 Go to UniProtKB: Q2G0P5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q2G0P5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
AGS (Subject of Investigation/LOI) Query on AGS Download Ideal Coordinates CCD File SDF format, chain AA [auth c] SDF format, chain DA [auth d] SDF format, chain EA [auth d] SDF format, chain IA [auth e] SDF format, chain W [auth b] SDF format, chain Z [auth c] MOL2 format, chain AA [auth c] MOL2 format, chain DA [auth d] MOL2 format, chain EA [auth d] MOL2 format, chain IA [auth e] MOL2 format, chain W [auth b] MOL2 format, chain Z [auth c] mmCIF format, chain AA [auth c] mmCIF format, chain DA [auth d] mmCIF format, chain EA [auth d] mmCIF format, chain IA [auth e] mmCIF format, chain W [auth b] mmCIF format, chain Z [auth c]	AA [auth c] DA [auth d] EA [auth d] IA [auth e] W [auth b] AA [auth c], DA [auth d], EA [auth d], IA [auth e], W [auth b], Z [auth c]	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER C₁₀ H₁₆ N₅ O₁₂ P₃ S NLTUCYMLOPLUHL-KQYNXXCUSA-N		Interactions Focus chain AA [auth c] Focus chain DA [auth d] Focus chain EA [auth d] Focus chain IA [auth e] Focus chain W [auth b] Focus chain Z [auth c] Interactions & Density Focus chain AA [auth c] Focus chain DA [auth d] Focus chain EA [auth d] Focus chain IA [auth e] Focus chain W [auth b] Focus chain Z [auth c]
ADP (Subject of Investigation/LOI) Query on ADP Download Ideal Coordinates CCD File SDF format, chain HA [auth e] SDF format, chain LA [auth f] SDF format, chain V [auth a] SDF format, chain X [auth b] MOL2 format, chain HA [auth e] MOL2 format, chain LA [auth f] MOL2 format, chain V [auth a] MOL2 format, chain X [auth b] mmCIF format, chain HA [auth e] mmCIF format, chain LA [auth f] mmCIF format, chain V [auth a] mmCIF format, chain X [auth b]	HA [auth e], LA [auth f], V [auth a], X [auth b]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain HA [auth e] Focus chain LA [auth f] Focus chain V [auth a] Focus chain X [auth b] Interactions & Density Focus chain HA [auth e] Focus chain LA [auth f] Focus chain V [auth a] Focus chain X [auth b]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain BA [auth c] SDF format, chain CA [auth c] SDF format, chain FA [auth d] SDF format, chain GA [auth d] SDF format, chain JA [auth e] SDF format, chain KA [auth e] SDF format, chain Y [auth b] MOL2 format, chain BA [auth c] MOL2 format, chain CA [auth c] MOL2 format, chain FA [auth d] MOL2 format, chain GA [auth d] MOL2 format, chain JA [auth e] MOL2 format, chain KA [auth e] MOL2 format, chain Y [auth b] mmCIF format, chain BA [auth c] mmCIF format, chain CA [auth c] mmCIF format, chain FA [auth d] mmCIF format, chain GA [auth d] mmCIF format, chain JA [auth e] mmCIF format, chain KA [auth e] mmCIF format, chain Y [auth b]	BA [auth c] CA [auth c] FA [auth d] GA [auth d] JA [auth e] BA [auth c], CA [auth c], FA [auth d], GA [auth d], JA [auth e], KA [auth e], Y [auth b]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain BA [auth c] Focus chain CA [auth c] Focus chain FA [auth d] Focus chain GA [auth d] Focus chain JA [auth e] Focus chain KA [auth e] Focus chain Y [auth b] Interactions & Density Focus chain BA [auth c] Focus chain CA [auth c] Focus chain FA [auth d] Focus chain GA [auth d] Focus chain JA [auth e] Focus chain KA [auth e] Focus chain Y [auth b]
