9FVZ | pdb_00009fvz

Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and a Factor X derived peptide fragment

PDB DOI: https://doi.org/10.2210/pdb9FVZ/pdb

Classification: OXIDOREDUCTASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2024-06-28 Released: 2025-12-24
Deposition Author(s): Brasnett, A., de Munnik, M., Brewitz, L., Rabe, P., Schofield, C.J., Marshall, S.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.98 Å
R-Value Free:
0.213 (Depositor), 0.213 (DCC)
R-Value Work:
0.184 (Depositor), 0.184 (DCC)
R-Value Observed:
0.185 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate and a Factor X derived peptide fragment

Brasnett, A., de Munnik, M., Brewitz, L., Rabe, P., Schofield, C.J.

To be published.

Macromolecule Content

Total Structure Weight: 54.4 kDa
Atom Count: 3,925
Modeled Residue Count: 446
Deposited Residue Count: 467
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

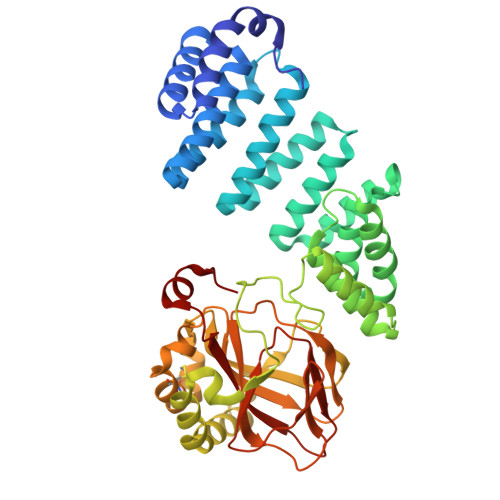

Aspartyl/asparaginyl beta-hydroxylase	A	428	Homo sapiens	Mutation(s): 0 Gene Names: ASPH, BAH EC: 1.14.11.16
UniProt & NIH Common Fund Data Resources
Find proteins for Q12797 (Homo sapiens) Explore Q12797 Go to UniProtKB: Q12797
PHAROS: Q12797 GTEx: ENSG00000198363
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q12797
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

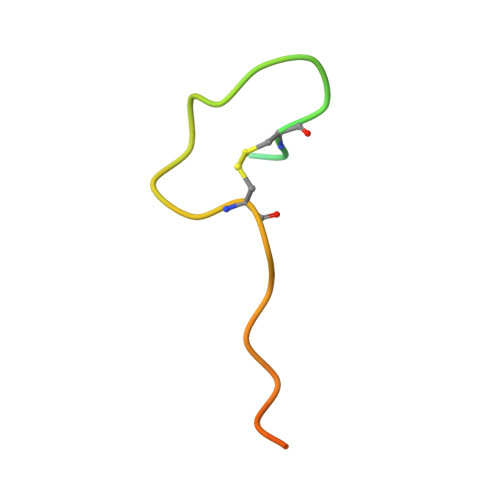

Coagulation factor X	B	39	Homo sapiens	Mutation(s): 4 EC: 3.4.21.6
UniProt & NIH Common Fund Data Resources
Find proteins for P00742 (Homo sapiens) Explore P00742 Go to UniProtKB: P00742
PHAROS: P00742 GTEx: ENSG00000126218
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P00742
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
AKG (Subject of Investigation/LOI) Query on AKG Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	2-OXOGLUTARIC ACID C₅ H₆ O₅ KPGXRSRHYNQIFN-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
PEG Query on PEG Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain J [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain J [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain J [auth A]	D [auth A] E [auth A] F [auth A] G [auth A] H [auth A] D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], J [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain J [auth A] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain J [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
FE (Subject of Investigation/LOI) Query on FE Download Ideal Coordinates CCD File SDF format, chain K [auth A] MOL2 format, chain K [auth A] mmCIF format, chain K [auth A]	K [auth A]	FE (III) ION Fe VTLYFUHAOXGGBS-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Interactions & Density Focus chain K [auth A]
