9FVY | pdb_00009fvy

Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, succinate and the hudroxylated product of Factor X derived peptide fragment after O2 exposure

• PDB DOI: https://doi.org/10.2210/pdb9FVY/pdb

• Classification: OXIDOREDUCTASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2024-06-28 Released: 2025-12-24
• Deposition Author(s): Brasnett, A., de Munnik, M., Brewitz, L., Rabe, P., Schofield, C.J.
• Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free:
  0.199 (Depositor), 0.199 (DCC)
• R-Value Work:
  0.178 (Depositor), 0.178 (DCC)
• R-Value Observed:
  0.179 (Depositor)

Starting Model: experimental

Literature

Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2-oxoglutarate, succinate and the hudroxylated product of Factor X derived peptide fragment after O2 exposure

Brasnett, A., de Munnik, M., Brewitz, L., Rabe, P., Schofield, C.J.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 54.27 kDa
• Atom Count: 3,955
• Modeled Residue Count: 447
• Deposited Residue Count: 468
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

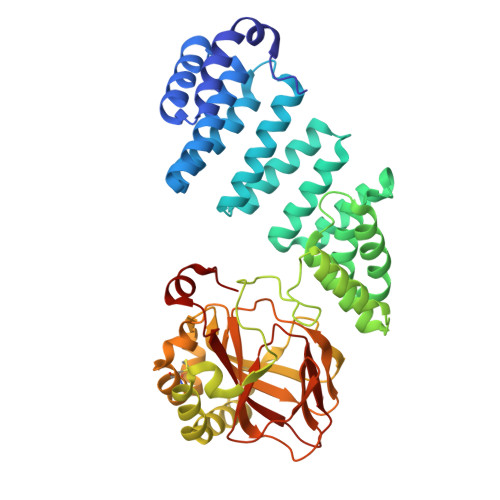

Aspartyl/asparaginyl beta-hydroxylase	A	429	Homo sapiens	Mutation(s): 0  Gene Names: ASPH, BAH EC: 1.14.11.16
UniProt & NIH Common Fund Data Resources
Find proteins for Q12797 (Homo sapiens) Explore Q12797  Go to UniProtKB:  Q12797
PHAROS:  Q12797 GTEx:  ENSG00000198363

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

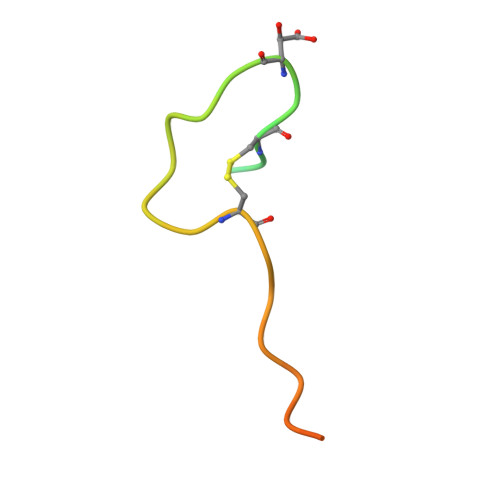

Factor X light chain	B	39	Homo sapiens	Mutation(s): 4  EC: 3.4.21.6
UniProt & NIH Common Fund Data Resources
Find proteins for P00742 (Homo sapiens) Explore P00742  Go to UniProtKB:  P00742
PHAROS:  P00742 GTEx:  ENSG00000126218

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
AKG (Subject of Investigation/LOI)	C [auth A]	2-OXOGLUTARIC ACID C5 H6 O5 KPGXRSRHYNQIFN-UHFFFAOYSA-N
SIN (Subject of Investigation/LOI)	D [auth A]	SUCCINIC ACID C4 H6 O4 KDYFGRWQOYBRFD-UHFFFAOYSA-N
PEG	E [auth A], F [auth A]	DI(HYDROXYETHYL)ETHER C4 H10 O3 MTHSVFCYNBDYFN-UHFFFAOYSA-N
GOL	H [auth A]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
FE (Subject of Investigation/LOI)	G [auth A]	FE (III) ION Fe VTLYFUHAOXGGBS-UHFFFAOYSA-N
CL	I [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
BH2	B	L-PEPTIDE LINKING	C4 H7 N O5		ASP

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free:  0.199 (Depositor), 0.199 (DCC)
• R-Value Work:  0.178 (Depositor), 0.178 (DCC)
• R-Value Observed: 0.179 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 50.26	α = 90
b = 86.83	β = 90
c = 123.33	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
DIALS	data reduction
xia2	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-24
Deposition Author(s): Brasnett, A., de Munnik, M., Brewitz, L., Rabe, P., Schofield, C.J.

---

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/V003291/1

Revision History

• Version 1.0: 2025-12-24
  Type: Initial release
