9EUX | pdb_00009eux

Glycoside hydrolase familiy 191 enzyme from Thermotoga maritima


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:
    0.264 (Depositor), 0.267 (DCC)
  • R-Value Work:
    0.236 (Depositor), 0.237 (DCC)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structures of alpha-galactosaminidases from the CAZy GH114 family and homologs defining a new GH191 family of glycosidases.

Roth, C.Moroz, O.V.Miranda, S.A.D.Jahn, L.Blagova, E.V.Lebedev, A.A.Segura, D.R.Stringer, M.A.Friis, E.P.Franco Cairo, J.P.L.Davies, G.J.Wilson, K.S.

(2025) Acta Crystallogr D Struct Biol 81: 234-251

  • DOI: https://doi.org/10.1107/S2059798325002864
  • Primary Citation of Related Structures:
    9EP5, 9EP6, 9EUX, 9EUZ

  • PubMed Abstract:

    Endo-galactosaminidases are an underexplored family of enzymes involved in the degradation of galactosaminogalactan (GAG) and other galactosamine-containing cationic exopolysaccharides produced by fungi and bacteria. These exopolysaccharides are part of the cell wall and extracellular matrix of microbial communities. Currently, these galactosaminidases are found in three distinct CAZy families: GH114, GH135 and GH166. Despite the widespread occurrence of these enzymes in nearly all bacterial and fungal clades, only limited biochemical and structural data are available for these three groups. To expand our knowledge of endo-galactosaminidases, we selected several sequences predicted to encode endo-galactosaminidases and produced them recombinantly for structural and functional studies. Only very few predicted proteins could be produced in soluble form, and activity against bacterial Pel (pellicle) polysaccharide could only be confirmed for one enzyme. Here, we report the structures of two bacterial and one fungal enzyme. Whereas the fungal enzyme belongs to family GH114, the two bacterial enzymes do not lie in the current GH families but instead define a new family, GH191. During structure solution we realized that crystals of all three enzymes had various defects including twinning and partial disorder, which in the case of a more severe pathology in one of the structures required the design of a specialized refinement/model-building protocol. Comparison of the structures revealed several features that might be responsible for the described activity pattern and substrate specificity compared with other GAG-degrading enzymes.


  • Organizational Affiliation
    • Department for Biomolecular Systems, Carbohydrates Structure and Function, Max Planck Institute of Colloids and Interfaces, Arnimallee 22, 14195 Berlin, Germany.

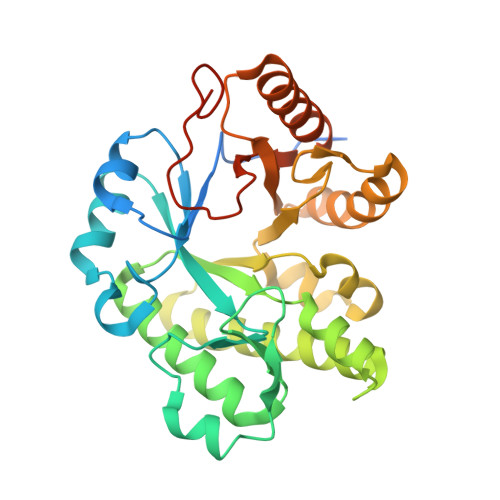

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Uncharacterized protein TM_1410323Thermotoga maritima MSB8Mutation(s): 0
Gene Names: TM_1410
UniProt
Find proteins for Q9X1D0 (Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8))
Explore Q9X1D0
Go to UniProtKB:  Q9X1D0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9X1D0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:  0.264 (Depositor), 0.267 (DCC)
  • R-Value Work:  0.236 (Depositor), 0.237 (DCC)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 195.186α = 90
b = 84.497β = 119.914
c = 195.482γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
REFMACrefinement
Aimlessdata scaling
XDSdata reduction
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data

  • Released Date: 2025-04-09
  • Deposition Author(s): Roth, C.

Funding OrganizationLocationGrant Number
Max Planck SocietyGermany--

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-09
    Type: Initial release
  • Version 1.1: 2025-04-23
    Changes: Structure summary
  • Version 1.2: 2025-10-22
    Changes: Database references
