9A9J | pdb_00009a9j

Complex of the closed conformation of P. furiosus Mre11-Rad50

Integrative structure models are generated using different types of input information, including varied experimental data, physical principles, statistical preferences, and other prior information.


Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered-State: No
  • Deposited Models: 1
  • Representative Model: 1

This is version 1.0 of the entry. See complete history


Literature

LRET-derived HADDOCK structural models describe the conformational heterogeneity required for DNA cleavage by the Mre11-Rad50 DNA damage repair complex

Canny, M.D.Latham, M.P.

(2022) eLife

  • DOI: https://doi.org/10.7554/eLife.69579
  • Primary Citation Related Structures:
    9A9J, 9A9K, 9A9L

  • PubMed Abstract:

    The Mre11-Rad50-Nbs1 protein complex is one of the first responders to DNA double-strand breaks. Studies have shown that the catalytic activities of the evolutionarily conserved Mre11-Rad50 (MR) core complex depend on an ATP-dependent global conformational change that takes the macromolecule from an open, extended structure in the absence of ATP to a closed, globular structure when ATP is bound. We have previously identified an additional 'partially open' conformation using luminescence resonance energy transfer (LRET) experiments. Here, a combination of LRET and the molecular docking program HADDOCK was used to further investigate this partially open state and identify three conformations of MR in solution: closed, partially open, and open, which are in addition to the extended, apo conformation. Mutants disrupting specific Mre11-Rad50 interactions within each conformation were used in nuclease activity assays on a variety of DNA substrates to help put the three states into a functional perspective. LRET data collected on MR bound to DNA demonstrate that the three conformations also exist when nuclease substrates are bound. These models were further supported with small-angle X-ray scattering data, which corroborate the presence of multiple states in solution. Together, the data suggest a mechanism for the nuclease activity of the MR complex along the DNA.


  • Organizational Affiliation
    • Department of Chemistry and Biochemistry, Texas Tech University, Lubbock, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)
|   3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

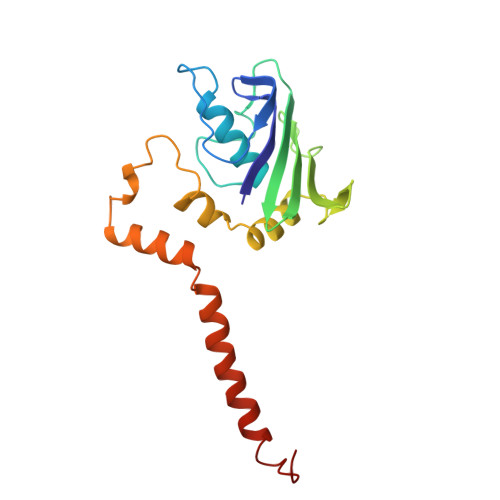

DNA double-strand break repair Rad50 ATPase
A, D
192Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)Mutation(s): 0
Gene Names: rad50
UniProt
Find proteins for P58301 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1))
Explore P58301
Go to UniProtKB:  P58301
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP58301
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)
|   3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

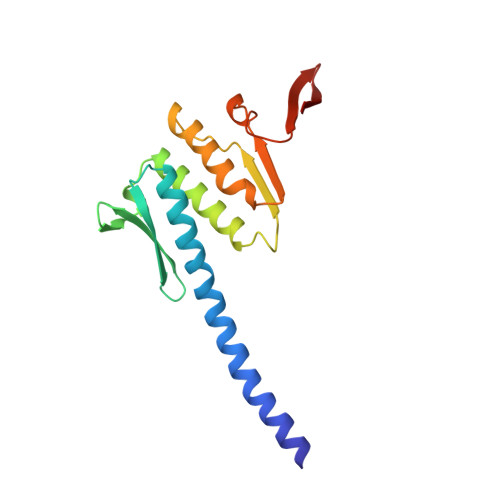

DNA double-strand break repair Rad50 ATPase
B, E
167Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)Mutation(s): 0
Gene Names: rad50
UniProt
Find proteins for P58301 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1))
Explore P58301
Go to UniProtKB:  P58301
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP58301
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)
|   3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

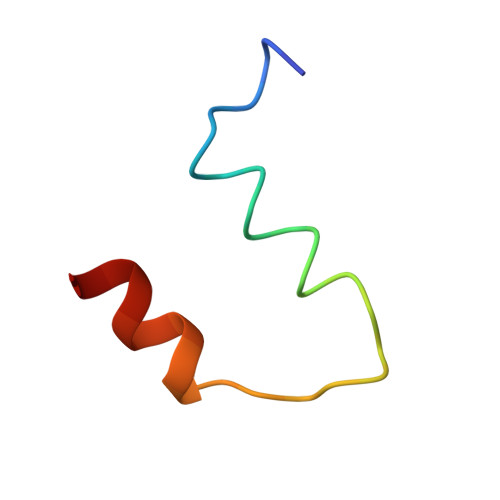

DNA double-strand break repair protein Mre11
C, F
32Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)Mutation(s): 0
Gene Names: mre11
EC: 3.1
UniProt
Find proteins for Q8U1N9 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1))
Explore Q8U1N9
Go to UniProtKB:  Q8U1N9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8U1N9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)
|   3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

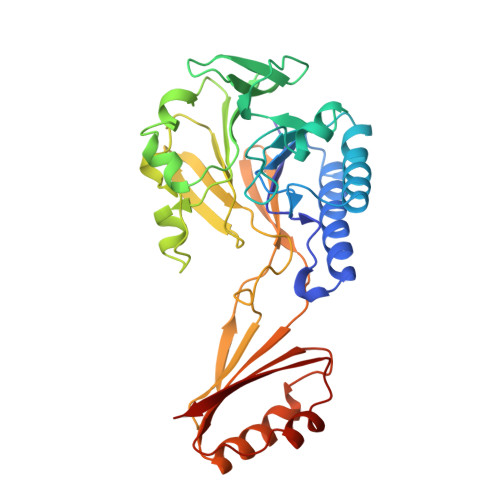

DNA double-strand break repair protein Mre11
G, H
333Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1)Mutation(s): 0
Gene Names: mre11
EC: 3.1
UniProt
Find proteins for Q8U1N9 (Pyrococcus furiosus (strain ATCC 43587 / DSM 3638 / JCM 8422 / Vc1))
Explore Q8U1N9
Go to UniProtKB:  Q8U1N9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8U1N9
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Integrative Structure Snapshot

  • Multi-Scale: No
  • Multi-State: No
  • Ordered-State: No
  • Deposited Models: 1
  • Representative Model: 1

Structure Validation

View Full Validation Report

View Summary Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-02
    Type: Initial release
