9ZNL | pdb_00009znl

X-ray structure of SARS-CoV-2 main protease covalently bound to inhibitor GRL-050-22 at 1.16 A

• PDB DOI: https://doi.org/10.2210/pdb9ZNL/pdb

• Classification: VIRAL PROTEIN, HYDROLASE/INHIBITOR
• Organism(s): Severe acute respiratory syndrome coronavirus 2
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-12-13 Released: 2025-12-24
• Deposition Author(s): Mesecar, A.D., Lendy, K.E., Jayashankar, U., Bogan, S.N., Ghosh, A.K., Center for Structural Biology of Infectious Diseases (CSBID)
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.16 Å
• R-Value Free:
  0.159 (Depositor), 0.172 (DCC)
• R-Value Work:
  0.141 (Depositor), 0.161 (DCC)
• R-Value Observed:
  0.141 (Depositor)

Starting Model: experimental

Literature

X-ray structure of SARS-CoV-2 main protease covalently bound to inhibitor GRL-050-22 at 1.16 A

Mesecar, A.D., Lendy, K.E., Jayashankar, U., Bogan, S.N., Ghosh, A.K., Center for Structural Biology of Infectious Diseases (CSBID)

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 34.51 kDa
• Atom Count: 3,154
• Modeled Residue Count: 306
• Deposited Residue Count: 306
• Unique protein chains: 1

Macromolecules

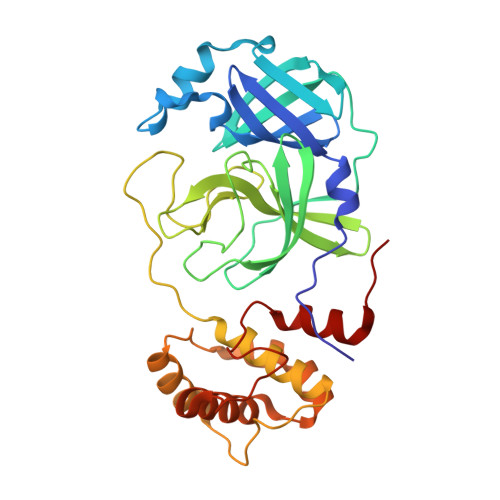

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase nsp5	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1  Go to UniProtKB:  P0DTD1

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1C3L (Subject of Investigation/LOI)	B [auth A]	(3S)-N-[(1S,2S)-1-hydroxy-3-[(3S)-2-oxopyrrolidin-3-yl]-1-(4-phenyl-1,3-thiazol-2-yl)propan-2-yl]-2-[3-methyl-N-(trifluoroacetyl)-L-valyl]-1,2,3,4-tetrahydroisoquinoline-3-carboxamide C34 H38 F3 N5 O5 S WDWBFOPEPYNLFT-ZNNHMPJGSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.16 Å
• R-Value Free:  0.159 (Depositor), 0.172 (DCC)
• R-Value Work:  0.141 (Depositor), 0.161 (DCC)
• R-Value Observed: 0.141 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 97.95	α = 90
b = 82.339	β = 117.435
c = 54.291	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data reduction
HKL-2000	data scaling
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-24
Deposition Author(s): Mesecar, A.D., Lendy, K.E., Jayashankar, U., Bogan, S.N., Ghosh, A.K., Center for Structural Biology of Infectious Diseases (CSBID)

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	HHSN272201700060C
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	1RO1 AI158649
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM132024

Revision History

• Version 1.0: 2025-12-24
  Type: Initial release
