9W5X | pdb_00009w5x

Crystal structure of Namat in complex with nicotinamide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:
    0.240 (Depositor), 0.240 (DCC)
  • R-Value Work:
    0.223 (Depositor), 0.224 (DCC)
  • R-Value Observed:
    0.224 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9W5X

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Structural evolution of the selectivity clamp confers ADPR-PP specificity in Namat, a phage nicotinamide ADP-ribose transferase.

Lan, M.Xu, L.Han, Y.Cui, T.Qiao, Z.Teng, Y.B.Wang, N.Bao, H.

(2026) Nucleic Acids Res 54

  • DOI: https://doi.org/10.1093/nar/gkaf1492
  • Primary Citation Related Structures:
    9W5W, 9W5X

  • PubMed Abstract:

    Phages and bacteria engage in an evolutionary arms race, in which NAD⁺ depletion serves as a potent bacterial defense. The phage NAD⁺ reconstitution pathway 1 (NARP1) counteracts this strategy via ADP-ribose phosphorylase (Adps) and nicotinamide ADP-ribose transferase (Namat), which restores NAD⁺ by repurposing the products of NAD⁺-depletion systems. Here, we dissect how Namat, the key ligase of NARP1, combines a conserved Nampt-like catalytic core with a specialized adenine ring-binding selectivity clamp to overcome host immunity. We determine its crystal structures bound to nicotinamide (NAM) and NAD⁺, combined with mutational, biochemical, and phylogenetic analyses. The structures reveal a "selectivity clamp," consisting of a variable loop and a conserved helix, that enforces strict specificity for ADP-ribose pyrophosphate (ADPR-PP) over phosphoribosylpyrophosphate (PRPP), the substrate of nicotinamide phosphoribosyltransferase (Nampt). Functional assays show that both the catalytic center and the selectivity clamp are essential for NAD⁺ biosynthesis and for counteracting NAD⁺-depleting defense. Guided by these insights, we identify bacterial homologs of NARP1 with similar enzymatic activity. These findings define the structural basis of Namat substrate selectivity and refine our understanding of NAD⁺ metabolism in host-phage interactions.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Biology, School of Life Sciences, Anhui Medical University, Hefei, Anhui 230032, China.

Macromolecule Content

  • Total Structure Weight: 225.97 kDa
  • Atom Count: 16,323
  • Modeled Residue Count: 1,941
  • Deposited Residue Count: 1,964
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

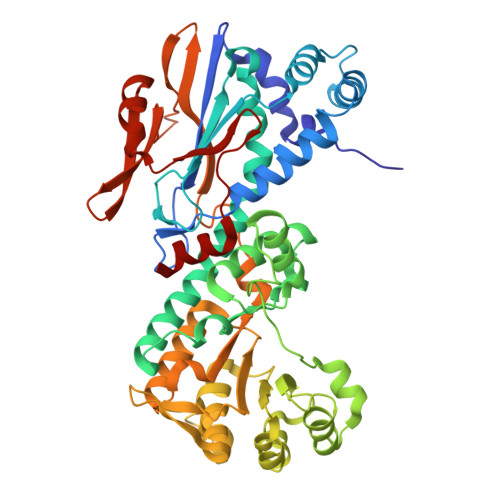

Nicotinamide phosphoribosyltransferase
A, B, C, D
491Bacillus phage SPbetaL1Mutation(s): 0
EC: 2.4.2.12
UniProt
Find proteins for A0A972GQ63 (Paenibacillus foliorum)
Explore A0A972GQ63
Go to UniProtKB:  A0A972GQ63
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A972GQ63
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NCA
(Subject of Investigation/LOI)

Query on NCA



Download:Ideal Coordinates CCD File
F [auth A],
M [auth B],
U [auth C],
Z [auth D]
NICOTINAMIDE
C6 H6 N2 O
DFPAKSUCGFBDDF-UHFFFAOYSA-N
SO4

Query on SO4



Download:Ideal Coordinates CCD File
AA [auth D]
BA [auth D]
CA [auth D]
DA [auth D]
EA [auth D]
AA [auth D],
BA [auth D],
CA [auth D],
DA [auth D],
EA [auth D],
FA [auth D],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A],
L [auth A],
N [auth B],
O [auth B],
P [auth B],
Q [auth B],
V [auth C],
W [auth C],
X [auth C]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL

Query on GOL



Download:Ideal Coordinates CCD File
E [auth A],
R [auth C],
S [auth C],
T [auth C],
Y [auth D]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:  0.240 (Depositor), 0.240 (DCC)
  • R-Value Work:  0.223 (Depositor), 0.224 (DCC)
  • R-Value Observed: 0.224 (Depositor)
Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 64.061α = 109.31
b = 104.737β = 101.55
c = 119.668γ = 89.97
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
autoPXdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data

  • Released Date: 2025-12-24
  • Deposition Author(s): Bao, H., Xu, L.

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2026-01-21
    Changes: Database references
