9V1K | pdb_00009v1k

Cryo- EM structure of small subunit (head) of 75S ribosome with P- tRNA from Entamoeba histolytica


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Cryo-EM structure of ribosome from pathogenic protozoa Entamoeba histolytica reveals unique features of its architecture.

Sharma, S.Mishra, S.Gourinath, S.Kaushal, P.S.

(2025) Nat Commun 16: 7758-7758

  • DOI: https://doi.org/10.1038/s41467-025-62767-x
  • Primary Citation of Related Structures:
    9V1I, 9V1J, 9V1K, 9V1L, 9V21, 9V24, 9V25, 9V26, 9V27, 9V28, 9V29

  • PubMed Abstract:

    Entamoeba histolytica, an anaerobic protozoan parasite, is the causative agent of amoebiasis, bloody diarrhea, and liver abscesses in humans. Amoebiasis is more predominant in tropical areas with poor sanitation conditions, and it remains the fourth leading cause of death due to a protozoan infection. E. histolytica life cycle spans between an infective 'cyst stage' and an active disease-causing 'trophozoite stage'. We have isolated ribosomes from the trophozoite stage of E. histolytica. Here, we report single particle cryo-EM structures of the 53S ribosome large subunit (LSU), and 75S associated ribosomes, with P-tRNA, A/P and P/E tRNAs, and with paromomycin antibiotic, at 2.8 Å to 3.4 Å resolution. The E. histolytica possesses a reduced ribosome with a conserved core, and the periphery evolved with species-specific unique features. The most notable features are the presence of the rRNA triple helix near the peptide exit tunnel, the expansion segment H88ES102 near the exit site on LSU, and unique insertions in r-proteins. Furthermore, the 75S ribosome paromomycin complex structure provides the atomic details of its interactions. These structures provide insights into the evolutionary adaptation of the E. histolytica translational machinery and may be explored further for amoebicidal therapeutic intervention.


  • Organizational Affiliation
    • Structural Biology & Translation Regulation laboratory, UNESCO-DBT Regional Centre for Biotechnology, NCR Biotech Science Cluster, Faridabad, Haryana (Delhi-NCR), India.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
40S ribosomal protein S25A [auth sA]137Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4M9F4 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4M9F4
Go to UniProtKB:  C4M9F4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4M9F4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

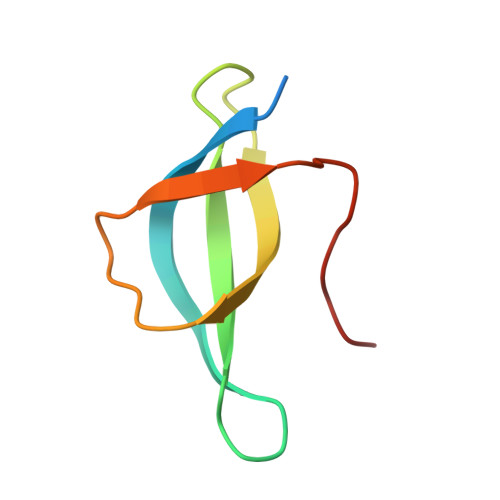

40S ribosomal protein S28, putativeB [auth sD]69Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4LZQ8 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4LZQ8
Go to UniProtKB:  C4LZQ8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4LZQ8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

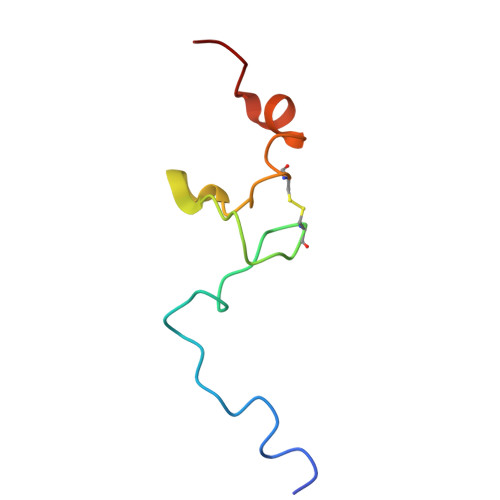

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Ribosomal protein S29, putativeC [auth sE]56Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4LW10 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4LW10
Go to UniProtKB:  C4LW10
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4LW10
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

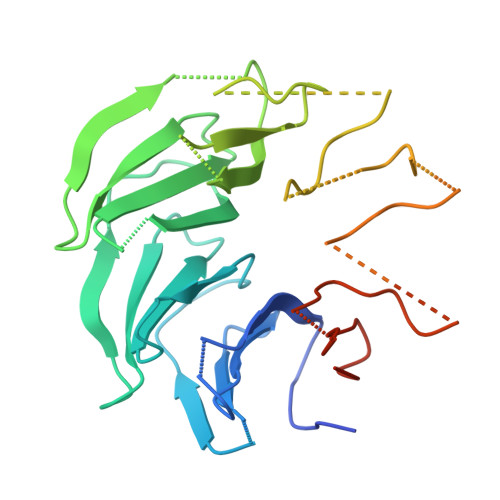

Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Guanine nucleotide-binding protein subunit beta 2-like 1, putativeD [auth sG]321Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4LTS8 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4LTS8
Go to UniProtKB:  C4LTS8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4LTS8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
40S ribosomal protein S3F [auth sd]244Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4LT02 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4LT02
Go to UniProtKB:  C4LT02
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4LT02
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

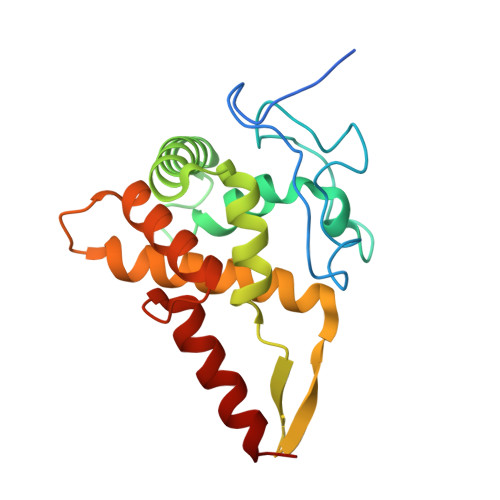

Small ribosomal subunit protein uS7G [auth sg]206Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for O15587 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore O15587
Go to UniProtKB:  O15587
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15587
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

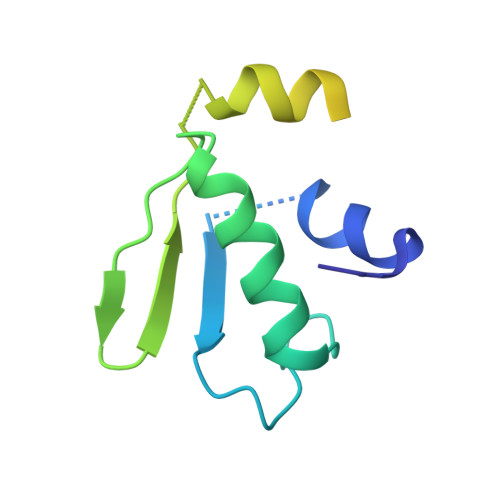

Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
40S ribosomal protein S10, putativeH [auth sl]127Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4LVC0 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4LVC0
Go to UniProtKB:  C4LVC0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4LVC0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

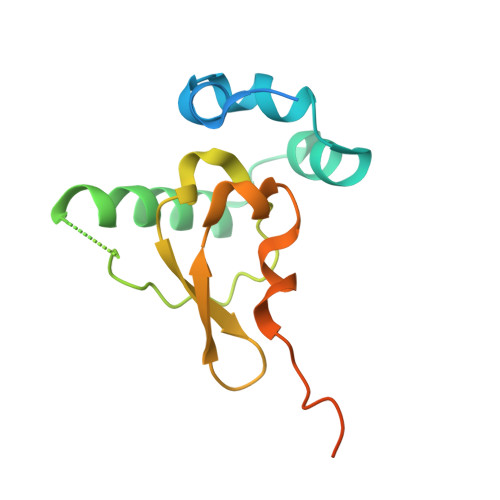

Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
40S ribosomal protein S15, putativeI [auth sq]144Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4M7H3 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4M7H3
Go to UniProtKB:  C4M7H3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4M7H3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

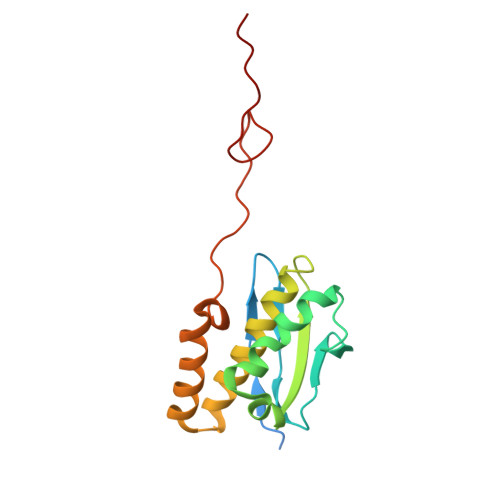

40S ribosomal protein S16, putativeJ [auth ss]158Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4M2R7 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4M2R7
Go to UniProtKB:  C4M2R7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4M2R7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

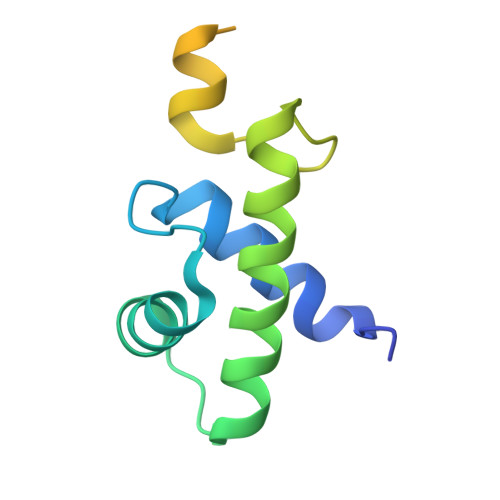

Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
40S ribosomal protein S17, putativeK [auth st]117Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4M0Z2 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4M0Z2
Go to UniProtKB:  C4M0Z2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4M0Z2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

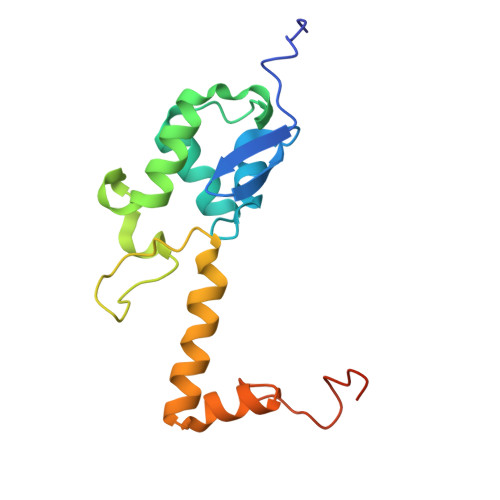

Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS13L [auth su]155Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for P48151 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore P48151
Go to UniProtKB:  P48151
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP48151
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

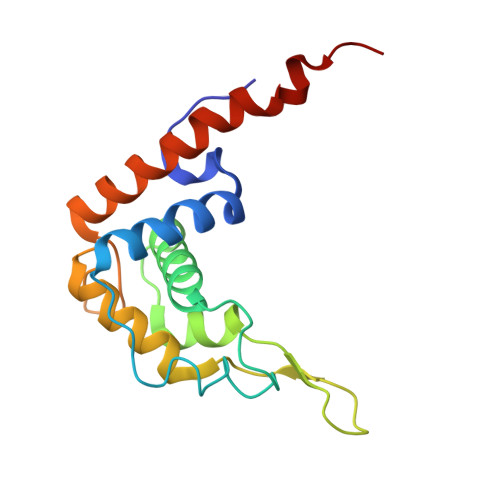

Small ribosomal subunit protein eS19M [auth sv]155Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for O15631 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore O15631
Go to UniProtKB:  O15631
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15631
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

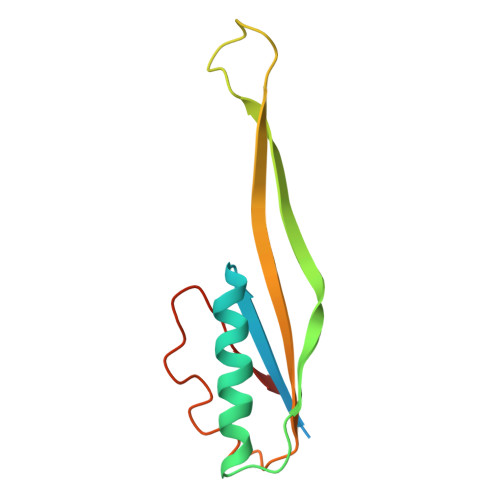

Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
40S ribosomal protein S20, putativeN [auth sw]118Entamoeba histolytica HM-1:IMSSMutation(s): 0
UniProt
Find proteins for C4M5V7 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM))
Explore C4M5V7
Go to UniProtKB:  C4M5V7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4M5V7
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure

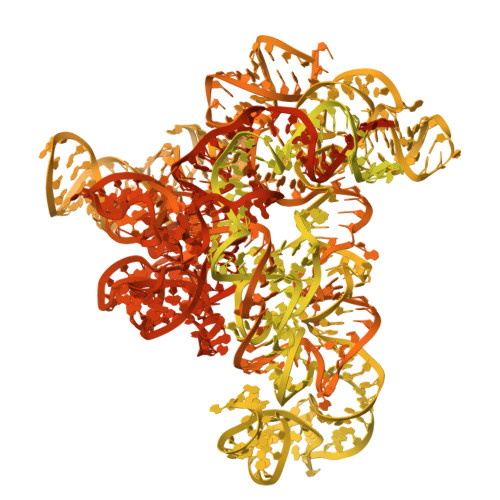

Entity ID: 5
MoleculeChains LengthOrganismImage
17S rRNAE [auth sa]1,947Entamoeba histolytica HM-1:IMSS
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION3.1.4
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Department of Biotechnology (DBT, India)IndiaBT/PR45101/DRUG/134/121/2022

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-08
    Type: Initial release
