9V0J | pdb_00009v0j

Cryo-EM structure of GATOR1-KICSTOR complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.97 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Architecture of the human KICSTOR and GATOR1-KICSTOR complexes.

Teng, F.Zeng, H.Mai, X.Chen, S.Wang, L.Feng, Z.Tian, S.Wang, S.Stjepanovic, G.Lim, C.Y.Su, M.Y.

(2025) Nat Struct Mol Biol 32: 2587-2600

  • DOI: https://doi.org/10.1038/s41594-025-01693-4
  • Primary Citation of Related Structures:
    9V0J, 9V6E, 9V80, 9V86, 9V9N, 9VAN

  • PubMed Abstract:

    The human KICSTOR complex, comprising KPTN, ITFG2, C12orf66 and the scaffolding protein SZT2, anchors the mTORC1 inhibitor GATOR1 to lysosomes. Mutations affecting KICSTOR subunits are associated with severe neurodevelopmental and epileptic disorders. Loss of KICSTOR mimics GATOR1 inactivation, resulting in constitutive mTORC1 activation, highlighting its critical role in nutrient sensing. Here, we used cryo-electron microscopy and computational modeling to determine the architectures of KICSTOR and the GATOR1-KICSTOR supercomplex. We show that SZT2 forms a crescent-shaped scaffold with repetitive tandem units, binding the ITFG2-KPTN heterodimer and C12orf66 at its C terminus. Structural and biochemical analyses revealed that GATOR1 binds the SZT2 N-terminal domain through NPRL3; disruption of this interaction hyperactivates mTORC1 and mislocalizes TFE3 independently of nutrient status. We further demonstrate the membrane-binding ability of KICSTOR, with SZT2 and C12orf66 preferentially interacting with negatively charged lipids-a requirement for lysosomal localization. These findings identify how KICSTOR positions GATOR1 on lysosomes to regulate nutrient-dependent mTORC1 signaling.


  • Organizational Affiliation
    • Department of Biochemistry, Key University Laboratory of Metabolism and Health of Guangdong, SUSTech Homeostatic Medicine Institute, School of Medicine, Southern University of Science and Technology, Shenzhen, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

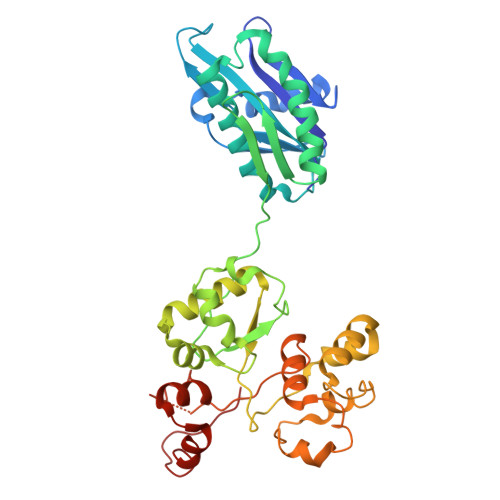

GATOR1 complex protein NPRL2380Homo sapiensMutation(s): 0
Gene Names: NPRL2TUSC4
UniProt & NIH Common Fund Data Resources
Find proteins for Q8WTW4 (Homo sapiens)
Explore Q8WTW4
Go to UniProtKB:  Q8WTW4
PHAROS:  Q8WTW4
GTEx:  ENSG00000114388
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8WTW4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

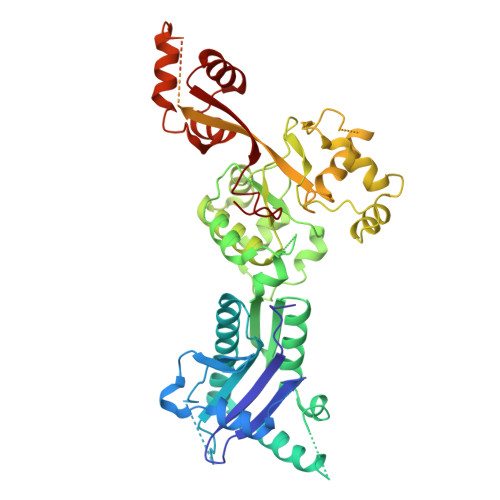

GATOR1 complex protein NPRL3569Homo sapiensMutation(s): 0
Gene Names: NPRL3C16orf35CGTHBAMARE
UniProt & NIH Common Fund Data Resources
Find proteins for Q12980 (Homo sapiens)
Explore Q12980
Go to UniProtKB:  Q12980
PHAROS:  Q12980
GTEx:  ENSG00000103148
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12980
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

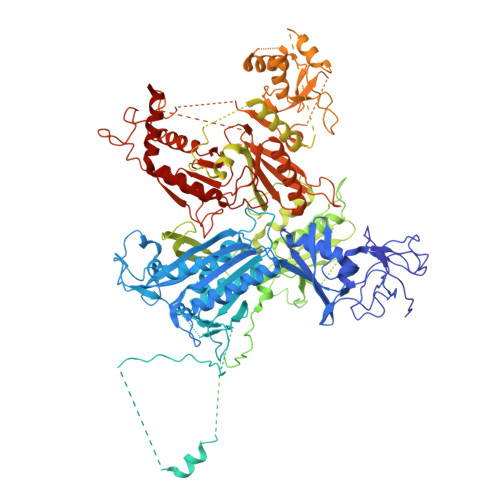

GATOR1 complex protein DEPDC51,603Homo sapiensMutation(s): 0
Gene Names: DEPDC5KIAA0645
UniProt & NIH Common Fund Data Resources
Find proteins for O75140 (Homo sapiens)
Explore O75140
Go to UniProtKB:  O75140
PHAROS:  O75140
GTEx:  ENSG00000100150
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO75140
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
KICSTOR complex protein SZT23,432Homo sapiensMutation(s): 0
Gene Names: SZT2C1orf84KIAA0467
UniProt & NIH Common Fund Data Resources
Find proteins for Q5T011 (Homo sapiens)
Explore Q5T011
Go to UniProtKB:  Q5T011
PHAROS:  Q5T011
GTEx:  ENSG00000198198
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5T011
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.97 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data

  • Released Date: 2025-11-12
  • Deposition Author(s): Su, M.-Y.

Funding OrganizationLocationGrant Number
Other governmentChina20231120103446003

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
  • Version 1.1: 2025-11-19
    Changes: Data collection, Database references
  • Version 1.2: 2025-12-24
    Changes: Data collection, Database references
