9T4P | pdb_00009t4p

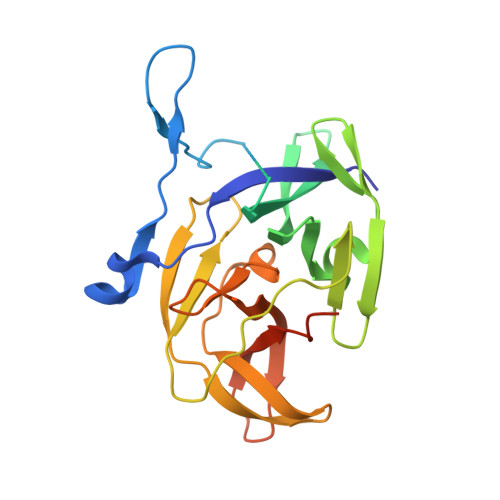

Dengue 2 Virus NS2B-NS3 protease fusion protein with crystal epitope mutation K174Q

PDB DOI: https://doi.org/10.2210/pdb9T4P/pdb

Classification: VIRAL PROTEIN
Organism(s): dengue virus type 2
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2025-10-30 Released: 2025-11-12
Deposition Author(s): Fairhead, M., Ni, X., Koekemoer, L., MacLean, E.M., Wright, N.D., Bowesman-Jones, H., Von Delft, F.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.95 Å
R-Value Free:
0.294 (Depositor), 0.294 (DCC)
R-Value Work:
0.226 (Depositor), 0.226 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9T4P

This is version 1.0 of the entry. See complete history.

Literature

A fast, parallel method for efficiently exploring crystallization behaviour of large numbers of protein variants

Fairhead, M., Ni, X., Koekemoer, L., MacLean, E.M., Wright, N.D., Bowesman-Jones, H., Von Delft, F.

To be published.

Macromolecule Content

Total Structure Weight: 25.95 kDa
Atom Count: 1,531
Modeled Residue Count: 196
Deposited Residue Count: 244
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Serine protease subunit NS2B,Serine protease NS3	A	244	dengue virus type 2	Mutation(s): 1 EC: 3.4.21.91 (PDB Primary Data), 3.6.1.15 (PDB Primary Data), 3.6.4.13 (PDB Primary Data)
UniProt
Find proteins for P14337 (Dengue virus type 2 (isolate Thailand/0168/1979)) Explore P14337 Go to UniProtKB: P14337
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P14337
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.95 Å
R-Value Free: 0.294 (Depositor), 0.294 (DCC)
R-Value Work: 0.226 (Depositor), 0.226 (DCC)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 123.486	α = 90
b = 45.2	β = 109.108
c = 40.46	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
xia2	data reduction
xia2	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-12

Deposition Author(s):

Bowesman-Jones, H.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	U19AI171399

Revision History (Full details and data files)

Version 1.0: 2025-11-12
Type: Initial release
