9RJ5 | pdb_00009rj5

SARS-CoV-2 with a bound inhibitor

PDB DOI: https://doi.org/10.2210/pdb9RJ5/pdb

Classification: HYDROLASE
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-06-12 Released: 2025-07-09
Deposition Author(s): Mac Sweeney, A.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.25 Å
R-Value Free:
0.176 (Depositor), 0.182 (DCC)
R-Value Work:
0.151 (Depositor), 0.159 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

SARS-CoV-2 with a bound inhibitor

Mac Sweeney, A.

To be published.

Macromolecule Content

Total Structure Weight: 34.13 kDa
Atom Count: 2,650
Modeled Residue Count: 297
Deposited Residue Count: 306
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1

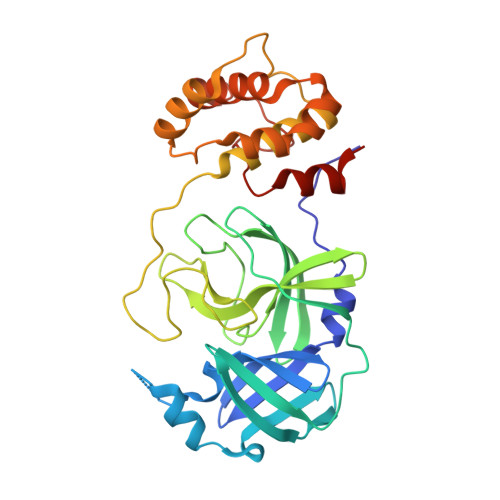

Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase nsp5	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 EC: 3.4.22.69
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1 Go to UniProtKB: P0DTC1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTC1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1JGR (Subject of Investigation/LOI) Query on A1JGR Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	1-(2-cyclohexylethyl)-3-cyclopropyl-1-[(5-methyl-1,2-oxazol-3-yl)methyl]urea C₁₇ H₂₇ N₃ O₂ VJGMJLHHJYCGIH-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.25 Å
R-Value Free: 0.176 (Depositor), 0.182 (DCC)
R-Value Work: 0.151 (Depositor), 0.159 (DCC)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 97.8	α = 90
b = 81.76	β = 114.674
c = 51.72	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
autoPROC	data reduction
autoPROC	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-07-09

Deposition Author(s):

Mac Sweeney, A.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-07-09
Type: Initial release
