9RDY | pdb_00009rdy

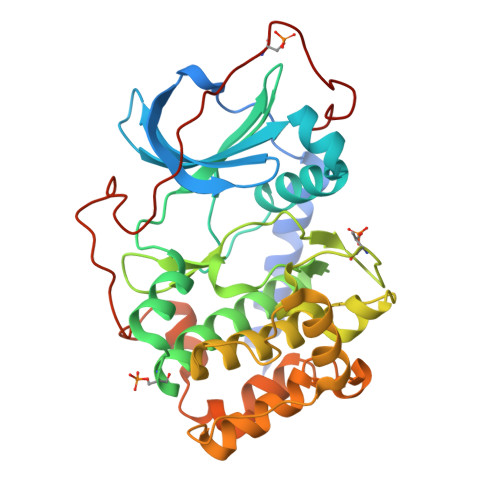

Crystal Structure of the Protein-Kinase A catalytic subunit from Cricetulus griseus in complex with F024


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.50 Å
  • R-Value Free:
    0.206 (Depositor), 0.206 (DCC)
  • R-Value Work:
    0.182 (Depositor), 0.182 (DCC)
  • R-Value Observed:
    0.184 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Natural Product-like Fragments Unlock Novel Chemotypes for a Kinase Target─Exploring Options beyond the Flatland.

Santura, A.Muller, J.Wolter, M.Tutzschky, I.C.Ruf, M.Metz, A.Sandner, A.Merkl, S.Klebe, G.Glinca, S.Czodrowski, P.

(2025) J Chem Inf Model

  • DOI: https://doi.org/10.1021/acs.jcim.5c01952
  • Primary Citation of Related Structures:
    9RDU, 9RDV, 9RDW, 9RDX, 9RDY, 9RDZ, 9RE0, 9RE1, 9RE2, 9RE3, 9RE4, 9RE5, 9RE6, 9RE7, 9RE8, 9RE9, 9REA, 9REB, 9REC, 9RED, 9REE, 9REF, 9REG, 9REH, 9REI, 9REJ, 9REK, 9REL, 9REM, 9REN, 9REO, 9REP, 9REQ, 9RER, 9RES, 9RET

  • PubMed Abstract:

    In this study, we utilized a high-performance soaking system of protein kinase A (PKA) to perform a crystallographic screening of a natural product-like fragment library. We resolved 36 fragment-bound structures, corresponding to a hit rate of 41%. Nine fragments bound within the ATP site, nine peripherally, and 18 interacted with both the ATP and peripheral sites. One fragment binds to the same site as the approved allosteric kinase inhibitor asciminib, while another induces an unexpected conformational change. Systematic database mining revealed that both the fragments and their natural product parents have not been previously associated with PKA or kinase activity. A scaffold/chemotype analysis further underscored their novelty. Cheminformatics analyses confirmed that these fragments occupy a distinct chemical space, enriched in saturation, spatial complexity and molecular three-dimensional character compared to kinase binders from reference data sets. These properties have previously been linked to increased selectivity, reduced CYP450 inhibition, and higher overall clinical success rates.


  • Organizational Affiliation
    • Johannes Gutenberg University Mainz, Department of Chemistry, Duesbergweg 10-14, Mainz 55128, Germany.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
cAMP-dependent protein kinase catalytic subunit alpha353Cricetulus griseusMutation(s): 0
Gene Names: PRKACA
EC: 2.7.11.11
UniProt
Find proteins for P25321 (Cricetulus griseus)
Explore P25321
Go to UniProtKB:  P25321
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25321
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1JE4 (Subject of Investigation/LOI)
Query on A1JE4

Download Ideal Coordinates CCD File
H [auth A](1~{S},4~{R})-4-(3,5-dimethyl-1~{H}-pyrazol-4-yl)cyclopent-2-en-1-ol
C10 H14 N2 O
GQAULXNKFCLCAG-DTWKUNHWSA-N
DMS
Query on DMS

Download Ideal Coordinates CCD File
B [auth A]
C [auth A]
D [auth A]
E [auth A]
F [auth A]
B [auth A],
C [auth A],
D [auth A],
E [auth A],
F [auth A],
G [auth A]
DIMETHYL SULFOXIDE
C2 H6 O S
IAZDPXIOMUYVGZ-UHFFFAOYSA-N
Modified Residues  2 Unique
IDChains TypeFormula2D DiagramParent
SEP
Query on SEP
A
L-PEPTIDE LINKINGC3 H8 N O6 PSER
TPO
Query on TPO
A
L-PEPTIDE LINKINGC4 H10 N O6 PTHR
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.50 Å
  • R-Value Free:  0.206 (Depositor), 0.206 (DCC)
  • R-Value Work:  0.182 (Depositor), 0.182 (DCC)
  • R-Value Observed: 0.184 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 52.594α = 90
b = 72.537β = 90
c = 99.759γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-31
    Type: Initial release
  • Version 1.1: 2026-01-07
    Changes: Database references
