9R6U | pdb_00009r6u

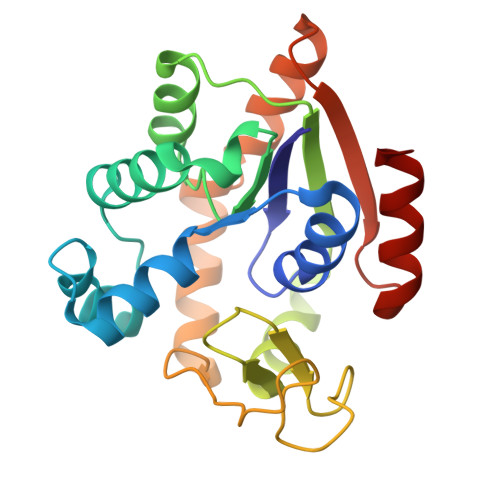

Crystal structure of E. coli Adenylate kinase K47A mutant in complex with inhibitor Ap5A


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.77 Å
  • R-Value Free:
    0.228 (Depositor), 0.229 (DCC)
  • R-Value Work:
    0.192 (Depositor), 0.192 (DCC)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Exploring Helical Fraying Linked to Dynamics and Catalysis in Adenylate Kinase.

Mattsson, J.Phoeurk, C.Schierholz, L.Mushtaq, A.U.Rodriguez Buitrago, J.A.Rogne, P.Sauer-Eriksson, A.E.Wolf-Watz, M.

(2025) Biochemistry 64: 4281-4295

  • DOI: https://doi.org/10.1021/acs.biochem.5c00306
  • Primary Citation of Related Structures:
    9R6U, 9R71, 9R72

  • PubMed Abstract:

    Conformational dynamics is a fundamental aspect of enzymatic catalysis that, for example, can be linked to ligand binding and release, assembly of the active site, and the catalytic mechanism. The essential and metabolic enzyme adenylate kinase (AK) undergoes large-scale conformational changes in response to binding of its substrates ATP and AMP. As such, it has been intensely studied in search of linkages between dynamics and catalysis. For a complex conformational change to occur in a protein, whether it is of an induced fit or conformational selection nature, changes at several hinges are often required. Here, based on a comparative structure-function analysis of AK enzymes from E. coli and the archaea Odinarchaeota and from human AK1, we found that conformational changes in the enzymes are to a varying degree linked to bending, fraying, or unfolding/folding events of the termini of α-helices observed in various structural hot spots of the enzymes. The findings contribute with a mechanistic angle to how enzymatic dynamics and catalysis relate to the plasticity of the termini of α-helices.


  • Organizational Affiliation
    • Department of Chemistry, Umeå University, 901 87 Umeå, Sweden.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Adenylate kinase
A, B
214Escherichia coliMutation(s): 1
Gene Names: adkEcE24377A_0513
EC: 2.7.4.3
UniProt
Find proteins for P69441 (Escherichia coli (strain K12))
Explore P69441
Go to UniProtKB:  P69441
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP69441
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.77 Å
  • R-Value Free:  0.228 (Depositor), 0.229 (DCC)
  • R-Value Work:  0.192 (Depositor), 0.192 (DCC)
Space Group: P 21 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 73.763α = 90
b = 79.057β = 90
c = 83.115γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
autoPROCdata reduction
Aimlessdata scaling
MrBUMPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swedish Research CouncilSweden--

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-15
    Type: Initial release
  • Version 1.1: 2025-10-22
    Changes: Database references
  • Version 1.2: 2025-10-29
    Changes: Database references
