9R5I | pdb_00009r5i

Dimeric state of the F420-reducing hydrogenase from Methanothermococcus thermolithotrophicus in crystalline form 3

PDB DOI: https://doi.org/10.2210/pdb9R5I/pdb

Classification: OXIDOREDUCTASE
Organism(s): Methanothermococcus thermolithotrophicus DSM 2095
Mutation(s): No

Deposited: 2025-05-08 Released: 2025-10-22
Deposition Author(s): Jespersen, M., Lemaire, O.N., Wagner, T.
Funding Organization(s): Max Planck Society, German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.13 Å
R-Value Free:
0.206 (Depositor), 0.204 (DCC)
R-Value Work:
0.174 (Depositor), 0.175 (DCC)
R-Value Observed:
0.176 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Structural and Spectroscopic Insights into Catalytic Intermediates of a [NiFe]-hydrogenase from Group 3.

Jespersen, M., Lorent, C., Lemaire, O.N., Zebger, I., Wagner, T.

(2025) Chembiochem 26: e202500692-e202500692

PubMed: 41078086 Search on PubMed
DOI: https://doi.org/10.1002/cbic.202500692
Primary Citation of Related Structures:
9R51, 9R52, 9R5I, 9R6Z

PubMed Abstract:
Hydrogenases catalyze reversible H ₂ production and are potential models for renewable energy catalysts. Here, the full redox landscape of a group 3 [NiFe]-hydrogenase from methanothermococcus thermolithotrophicus is elucidated, resembling group 1 enzymes. Structural and spectroscopic analyses reveal a catalytic-ready state with nickel seesaw coordination, enabling intermediate trapping and advancing mechanistic understanding of oxygen-sensitive [NiFe] enzymes.

Organizational Affiliation

Max Planck Institute for Marine Microbiology, Celsiusstraße 1, 28359, Bremen, Germany.

Macromolecule Content

Total Structure Weight: 214.3 kDa
Atom Count: 14,481
Modeled Residue Count: 1,828
Deposited Residue Count: 1,866
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

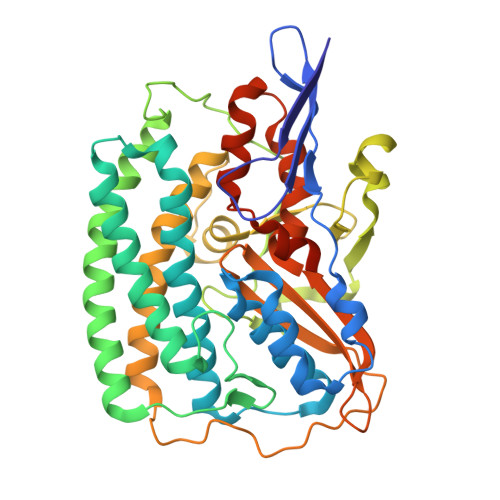

F420-reducing [NiFe]-hydrogenase from Methanothermococcus thermolithotrophicus subunit alpha	A, D	410	Methanothermococcus thermolithotrophicus DSM 2095	Mutation(s): 0 EC: 1.12.98.1
UniProt
Find proteins for Q60338 (Methanocaldococcus jannaschii (strain ATCC 43067 / DSM 2661 / JAL-1 / JCM 10045 / NBRC 100440)) Explore Q60338 Go to UniProtKB: Q60338
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q60338
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

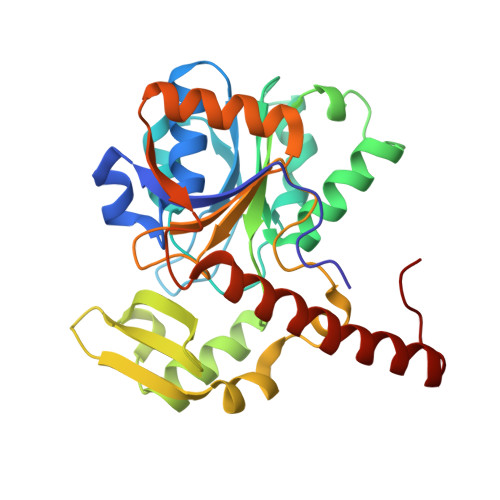

F420-reducing [NiFe]-hydrogenase from Methanothermococcus thermolithotrophicus subunit beta	B, F	282	Methanothermococcus thermolithotrophicus DSM 2095	Mutation(s): 0 EC: 1.12.98.1
UniProt
Find proteins for Q60341 (Methanocaldococcus jannaschii (strain ATCC 43067 / DSM 2661 / JAL-1 / JCM 10045 / NBRC 100440)) Explore Q60341 Go to UniProtKB: Q60341
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q60341
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

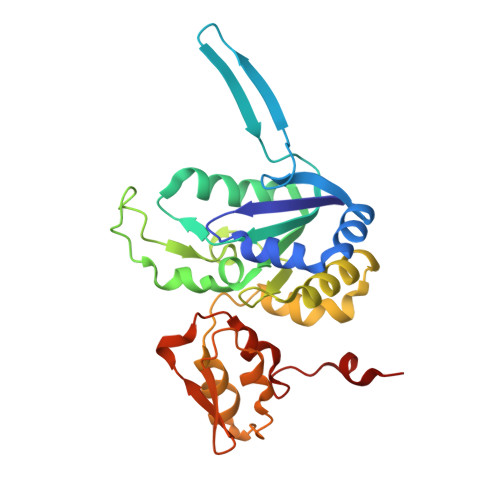

F420-reducing [NiFe]-hydrogenase from Methanothermococcus thermolithotrophicus subunit gamma	C, E	241	Methanothermococcus thermolithotrophicus DSM 2095	Mutation(s): 0 EC: 1.12.98.1
UniProt
Find proteins for Q60340 (Methanocaldococcus jannaschii (strain ATCC 43067 / DSM 2661 / JAL-1 / JCM 10045 / NBRC 100440)) Explore Q60340 Go to UniProtKB: Q60340
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q60340
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 10 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
FAD (Subject of Investigation/LOI) Query on FAD Download Ideal Coordinates CCD File SDF format, chain AB [auth F] SDF format, chain Q [auth B] MOL2 format, chain AB [auth F] MOL2 format, chain Q [auth B] mmCIF format, chain AB [auth F] mmCIF format, chain Q [auth B]	AB [auth F], Q [auth B]	FLAVIN-ADENINE DINUCLEOTIDE C₂₇ H₃₃ N₉ O₁₅ P₂ VWWQXMAJTJZDQX-UYBVJOGSSA-N		Interactions Focus chain AB [auth F] Focus chain Q [auth B] Interactions & Density Focus chain AB [auth F] Focus chain Q [auth B]
PE4 Query on PE4 Download Ideal Coordinates CCD File SDF format, chain Z [auth C] MOL2 format, chain Z [auth C] mmCIF format, chain Z [auth C]	Z [auth C]	2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL C₁₆ H₃₄ O₈ PJWQOENWHPEPKI-UHFFFAOYSA-N		Interactions Focus chain Z [auth C] Interactions & Density Focus chain Z [auth C]
SF4 (Subject of Investigation/LOI) Query on SF4 Download Ideal Coordinates CCD File SDF format, chain DA [auth C] SDF format, chain EA [auth C] SDF format, chain EB [auth F] SDF format, chain FA [auth C] SDF format, chain X [auth B] SDF format, chain XA [auth E] SDF format, chain YA [auth E] SDF format, chain ZA [auth E] MOL2 format, chain DA [auth C] MOL2 format, chain EA [auth C] MOL2 format, chain EB [auth F] MOL2 format, chain FA [auth C] MOL2 format, chain X [auth B] MOL2 format, chain XA [auth E] MOL2 format, chain YA [auth E] MOL2 format, chain ZA [auth E] mmCIF format, chain DA [auth C] mmCIF format, chain EA [auth C] mmCIF format, chain EB [auth F] mmCIF format, chain FA [auth C] mmCIF format, chain X [auth B] mmCIF format, chain XA [auth E] mmCIF format, chain YA [auth E] mmCIF format, chain ZA [auth E]	DA [auth C] EA [auth C] EB [auth F] FA [auth C] X [auth B] DA [auth C], EA [auth C], EB [auth F], FA [auth C], X [auth B], XA [auth E], YA [auth E], ZA [auth E]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain DA [auth C] Focus chain EA [auth C] Focus chain EB [auth F] Focus chain FA [auth C] Focus chain X [auth B] Focus chain XA [auth E] Focus chain YA [auth E] Focus chain ZA [auth E] Interactions & Density Focus chain DA [auth C] Focus chain EA [auth C] Focus chain EB [auth F] Focus chain FA [auth C] Focus chain X [auth B] Focus chain XA [auth E] Focus chain YA [auth E] Focus chain ZA [auth E]
NFU (Subject of Investigation/LOI) Query on NFU Download Ideal Coordinates CCD File SDF format, chain JA [auth D] SDF format, chain K [auth A] MOL2 format, chain JA [auth D] MOL2 format, chain K [auth A] mmCIF format, chain JA [auth D] mmCIF format, chain K [auth A]	JA [auth D], K [auth A]	formyl[bis(hydrocyanato-1kappaC)]ironnickel(Fe-Ni) C₃ H Fe N₂ Ni O QCZROEOIPZWDEO-UHFFFAOYSA-N		Interactions Focus chain JA [auth D] Focus chain K [auth A] Interactions & Density Focus chain JA [auth D] Focus chain K [auth A]
MES Query on MES Download Ideal Coordinates CCD File SDF format, chain H [auth A] MOL2 format, chain H [auth A] mmCIF format, chain H [auth A]	H [auth A]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C₆ H₁₃ N O₄ S SXGZJKUKBWWHRA-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Interactions & Density Focus chain H [auth A]
FES (Subject of Investigation/LOI) Query on FES Download Ideal Coordinates CCD File SDF format, chain TA [auth E] MOL2 format, chain TA [auth E] mmCIF format, chain TA [auth E]	TA [auth E]	FE2/S2 (INORGANIC) CLUSTER Fe₂ S₂ NIXDOXVAJZFRNF-UHFFFAOYSA-N		Interactions Focus chain TA [auth E] Interactions & Density Focus chain TA [auth E]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain AA [auth C] SDF format, chain BB [auth F] SDF format, chain CB [auth F] SDF format, chain DB [auth F] SDF format, chain LA [auth D] SDF format, chain M [auth A] SDF format, chain R [auth B] SDF format, chain S [auth B] SDF format, chain T [auth B] MOL2 format, chain AA [auth C] MOL2 format, chain BB [auth F] MOL2 format, chain CB [auth F] MOL2 format, chain DB [auth F] MOL2 format, chain LA [auth D] MOL2 format, chain M [auth A] MOL2 format, chain R [auth B] MOL2 format, chain S [auth B] MOL2 format, chain T [auth B] mmCIF format, chain AA [auth C] mmCIF format, chain BB [auth F] mmCIF format, chain CB [auth F] mmCIF format, chain DB [auth F] mmCIF format, chain LA [auth D] mmCIF format, chain M [auth A] mmCIF format, chain R [auth B] mmCIF format, chain S [auth B] mmCIF format, chain T [auth B]	AA [auth C] BB [auth F] CB [auth F] DB [auth F] LA [auth D] AA [auth C], BB [auth F], CB [auth F], DB [auth F], LA [auth D], M [auth A], R [auth B], S [auth B], T [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain AA [auth C] Focus chain BB [auth F] Focus chain CB [auth F] Focus chain DB [auth F] Focus chain LA [auth D] Focus chain M [auth A] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Interactions & Density Focus chain AA [auth C] Focus chain BB [auth F] Focus chain CB [auth F] Focus chain DB [auth F] Focus chain LA [auth D] Focus chain M [auth A] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain HA [auth D] SDF format, chain I [auth A] SDF format, chain IA [auth D] SDF format, chain J [auth A] SDF format, chain UA [auth E] SDF format, chain VA [auth E] SDF format, chain WA [auth E] SDF format, chain Y [auth C] MOL2 format, chain G [auth A] MOL2 format, chain HA [auth D] MOL2 format, chain I [auth A] MOL2 format, chain IA [auth D] MOL2 format, chain J [auth A] MOL2 format, chain UA [auth E] MOL2 format, chain VA [auth E] MOL2 format, chain WA [auth E] MOL2 format, chain Y [auth C] mmCIF format, chain G [auth A] mmCIF format, chain HA [auth D] mmCIF format, chain I [auth A] mmCIF format, chain IA [auth D] mmCIF format, chain J [auth A] mmCIF format, chain UA [auth E] mmCIF format, chain VA [auth E] mmCIF format, chain WA [auth E] mmCIF format, chain Y [auth C]	G [auth A] HA [auth D] I [auth A] IA [auth D] J [auth A] G [auth A], HA [auth D], I [auth A], IA [auth D], J [auth A], UA [auth E], VA [auth E], WA [auth E], Y [auth C]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain HA [auth D] Focus chain I [auth A] Focus chain IA [auth D] Focus chain J [auth A] Focus chain UA [auth E] Focus chain VA [auth E] Focus chain WA [auth E] Focus chain Y [auth C] Interactions & Density Focus chain G [auth A] Focus chain HA [auth D] Focus chain I [auth A] Focus chain IA [auth D] Focus chain J [auth A] Focus chain UA [auth E] Focus chain VA [auth E] Focus chain WA [auth E] Focus chain Y [auth C]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain BA [auth C] SDF format, chain CA [auth C] SDF format, chain GA [auth D] SDF format, chain MA [auth D] SDF format, chain N [auth A] SDF format, chain NA [auth D] SDF format, chain O [auth A] SDF format, chain OA [auth D] SDF format, chain P [auth A] SDF format, chain PA [auth D] SDF format, chain QA [auth D] SDF format, chain RA [auth D] SDF format, chain SA [auth D] SDF format, chain U [auth B] SDF format, chain V [auth B] SDF format, chain W [auth B] MOL2 format, chain BA [auth C] MOL2 format, chain CA [auth C] MOL2 format, chain GA [auth D] MOL2 format, chain MA [auth D] MOL2 format, chain N [auth A] MOL2 format, chain NA [auth D] MOL2 format, chain O [auth A] MOL2 format, chain OA [auth D] MOL2 format, chain P [auth A] MOL2 format, chain PA [auth D] MOL2 format, chain QA [auth D] MOL2 format, chain RA [auth D] MOL2 format, chain SA [auth D] MOL2 format, chain U [auth B] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] mmCIF format, chain BA [auth C] mmCIF format, chain CA [auth C] mmCIF format, chain GA [auth D] mmCIF format, chain MA [auth D] mmCIF format, chain N [auth A] mmCIF format, chain NA [auth D] mmCIF format, chain O [auth A] mmCIF format, chain OA [auth D] mmCIF format, chain P [auth A] mmCIF format, chain PA [auth D] mmCIF format, chain QA [auth D] mmCIF format, chain RA [auth D] mmCIF format, chain SA [auth D] mmCIF format, chain U [auth B] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B]	BA [auth C] CA [auth C] GA [auth D] MA [auth D] N [auth A] BA [auth C], CA [auth C], GA [auth D], MA [auth D], N [auth A], NA [auth D], O [auth A], OA [auth D], P [auth A], PA [auth D], QA [auth D], RA [auth D], SA [auth D], U [auth B], V [auth B], W [auth B]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain BA [auth C] Focus chain CA [auth C] Focus chain GA [auth D] Focus chain MA [auth D] Focus chain N [auth A] Focus chain NA [auth D] Focus chain O [auth A] Focus chain OA [auth D] Focus chain P [auth A] Focus chain PA [auth D] Focus chain QA [auth D] Focus chain RA [auth D] Focus chain SA [auth D] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Interactions & Density Focus chain BA [auth C] Focus chain CA [auth C] Focus chain GA [auth D] Focus chain MA [auth D] Focus chain N [auth A] Focus chain NA [auth D] Focus chain O [auth A] Focus chain OA [auth D] Focus chain P [auth A] Focus chain PA [auth D] Focus chain QA [auth D] Focus chain RA [auth D] Focus chain SA [auth D] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B]
FE (Subject of Investigation/LOI) Query on FE Download Ideal Coordinates CCD File SDF format, chain KA [auth D] SDF format, chain L [auth A] MOL2 format, chain KA [auth D] MOL2 format, chain L [auth A] mmCIF format, chain KA [auth D] mmCIF format, chain L [auth A]	KA [auth D], L [auth A]	FE (III) ION Fe VTLYFUHAOXGGBS-UHFFFAOYSA-N		Interactions Focus chain KA [auth D] Focus chain L [auth A] Interactions & Density Focus chain KA [auth D] Focus chain L [auth A]
