9Q7X | pdb_00009q7x

Crystal structure of the MKP5 loop mutant N448A in complex with the allosteric inhibitor

• PDB DOI: https://doi.org/10.2210/pdb9Q7X/pdb

• Classification: HYDROLASE/INHIBITOR
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2025-08-25 Released: 2025-09-10
• Deposition Author(s): Manjula, R., Bennett, A.M., Lolis, E.
• Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.95 Å
• R-Value Free:
  0.241 (Depositor), 0.240 (DCC)
• R-Value Work:
  0.181 (Depositor), 0.184 (DCC)
• R-Value Observed:
  0.184 (Depositor)

Starting Model: experimental

Literature

Crystal structure of the MKP5 loop mutant N448A in complex with the allosteric inhibitor

Manjula, R., Bennett, A.M., Lolis, E.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors.

Biological Assembly 3

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 3 assigned by authors.

Biological Assembly 4

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 4 assigned by authors.

Biological Assembly 5

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 5 assigned by authors.

Biological Assembly 6

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 6 assigned by authors.

Macromolecule Content

• Total Structure Weight: 104.33 kDa
• Atom Count: 7,229
• Modeled Residue Count: 882
• Deposited Residue Count: 888
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

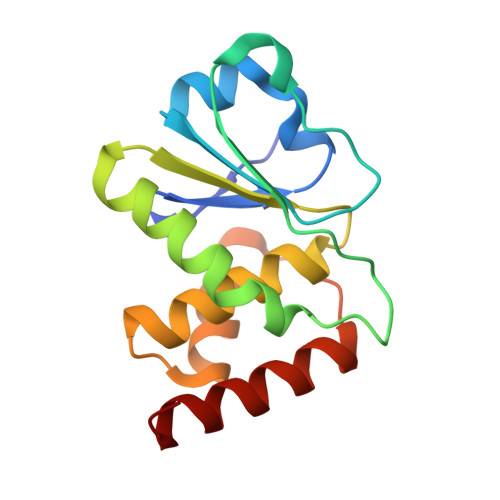

Dual specificity protein phosphatase 10	A, B, C, D, E, F	148	Homo sapiens	Mutation(s): 0  Gene Names: DUSP10, MKP5 EC: 3.1.3.16 (PDB Primary Data), 3.1.3.48 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y6W6 (Homo sapiens) Explore Q9Y6W6  Go to UniProtKB:  Q9Y6W6
PHAROS:  Q9Y6W6 GTEx:  ENSG00000143507

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CJA	G [auth A], H [auth B], I [auth C], J [auth D], K [auth E], L [auth F]	3,3-dimethyl-1-{[9-(methylsulfanyl)-5,6-dihydrothieno[3,4-h]quinazolin-2-yl]sulfanyl}butan-2-one C17 H20 N2 O S3 ZVUPMFXOKKTVQT-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.95 Å
• R-Value Free:  0.241 (Depositor), 0.240 (DCC)
• R-Value Work:  0.181 (Depositor), 0.184 (DCC)
• R-Value Observed: 0.184 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 65.86	α = 90
b = 129.95	β = 91.38
c = 84.01	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
MOSFLM	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-09-10
Deposition Author(s): Manjula, R., Bennett, A.M., Lolis, E.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	RO1 HL158876

Revision History

• Version 1.0: 2025-09-10
  Type: Initial release
