9PV3 | pdb_00009pv3

10E8-GT12 immunogen in complex with mouse Fabs SA2911 and W6-10

• PDB DOI: https://doi.org/10.2210/pdb9PV3/pdb
• EM Map EMD-71881: EMDB EMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): Mus musculus, synthetic construct
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2025-08-01 Released: 2025-12-10
• Deposition Author(s): Huang, J., Ward, A.B.
• Funding Organization(s): Bill & Melinda Gates Foundation, National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.95 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Decipher antibody responses primed with scaffolds harboring the germline-targeting HIV Env MPER epitope by cryoEM

Huang, J., Ward, A.B.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 5-mer - A4B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 72.87 kDa
• Atom Count: 4,862
• Modeled Residue Count: 618
• Deposited Residue Count: 653
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

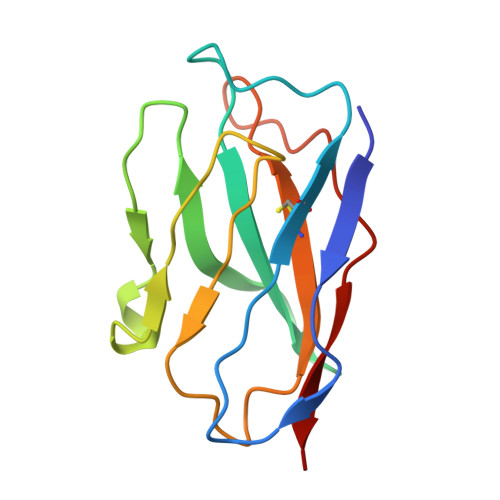

W6-10 mouse Fab heavy chain	A [auth B]	119	Mus musculus	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

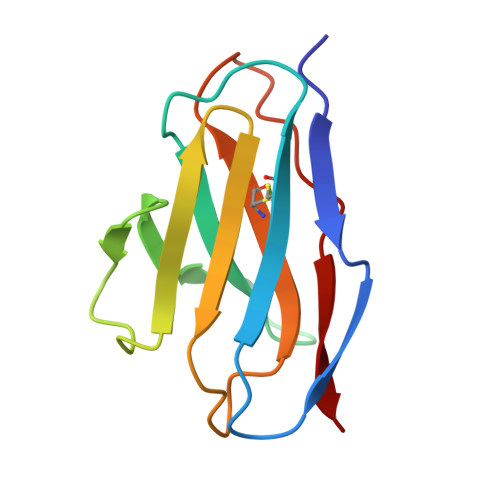

W6-10 mouse Fab light chain	B [auth C]	107	Mus musculus	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

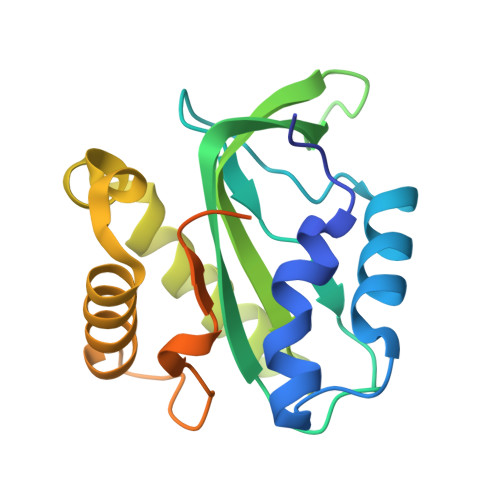

10E8-GT12 immunogen	C [auth D]	188	synthetic construct	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

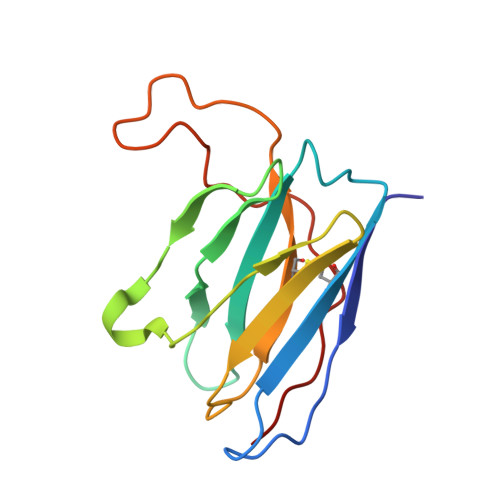

SA2102_10E8-like_2911_H_pFabCW mouse Fab heavy chain	D [auth H]	126	Mus musculus	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

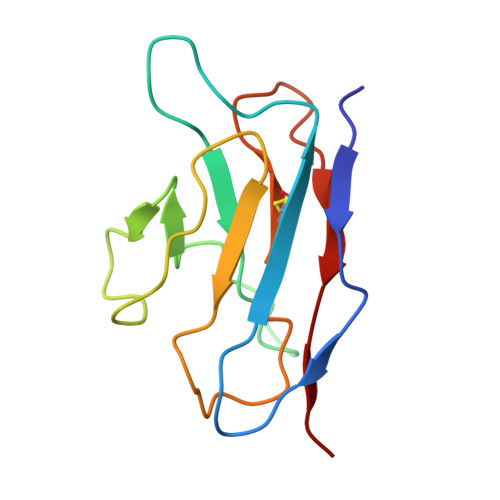

SA2102_Pro2621_10E8like2621_Kap_pCW mouse Fab light chain	E [auth L]	113	Mus musculus	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	F [auth D]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.95 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-12-10
Deposition Author(s): Huang, J., Ward, A.B.

---

Funding Organization	Location	Grant Number
Bill & Melinda Gates Foundation	United States	INV-002916
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	UM1 AI144462

Revision History

• Version 1.0: 2025-12-10
  Type: Initial release
