9PMZ | pdb_00009pmz

Icotinib in complex with wild-type EGFR

PDB DOI: https://doi.org/10.2210/pdb9PMZ/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2025-07-18 Released: 2025-12-10
Deposition Author(s): Lantry, A.M., Abidakun, O.A., Heppner, D.E.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.33 Å
R-Value Free:
0.234 (Depositor), 0.224 (DCC)
R-Value Work:
0.211 (Depositor)
R-Value Observed:
0.212 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9PMZ

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structural and functional studies of EGFR inhibitor

Lantry, A.M., Abidakun, O.A., Heppner, D.E.

To be published.

Macromolecule Content

Total Structure Weight: 37.7 kDa
Atom Count: 2,252
Modeled Residue Count: 275
Deposited Residue Count: 327
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

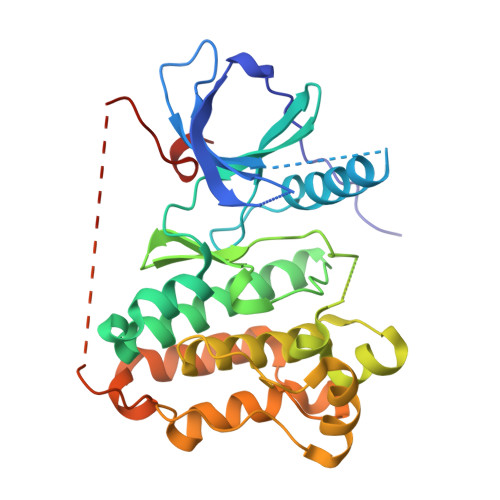

Molecule	Chains	Sequence Length	Organism	Details	Image
Epidermal growth factor receptor	A	327	Homo sapiens	Mutation(s): 0 Gene Names: EGFR, ERBB, ERBB1, HER1 EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for P00533 (Homo sapiens) Explore P00533 Go to UniProtKB: P00533
PHAROS: P00533 GTEx: ENSG00000146648
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P00533
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1CI6 (Subject of Investigation/LOI) Query on A1CI6 Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	Icotinib C₂₂ H₂₁ N₃ O₄ QQLKULDARVNMAL-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.33 Å
R-Value Free: 0.234 (Depositor), 0.224 (DCC)
R-Value Work: 0.211 (Depositor)
R-Value Observed: 0.212 (Depositor)

Space Group: I 2 3

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 144.281	α = 90
b = 144.281	β = 90
c = 144.281	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-10

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM155353

Revision History (Full details and data files)

Version 1.0: 2025-12-10
Type: Initial release
