9PMM | pdb_00009pmm

Crystal structure of C. elegans PUF-3 in complex with RNA I-1

PDB DOI: https://doi.org/10.2210/pdb9PMM/pdb

Classification: RNA BINDING PROTEIN
Organism(s): Caenorhabditis elegans
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-07-18 Released: 2025-12-17
Deposition Author(s): Zhang, Y., Hall, T.M.T.
Funding Organization(s): National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.15 Å
R-Value Free:
0.216 (Depositor), 0.214 (DCC)
R-Value Work:
0.178 (Depositor), 0.179 (DCC)
R-Value Observed:
0.180 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of C. elegans PUF-3 in complex with RNA I-1

Zhang, Y., Hall, T.M.T.

To be published.

Macromolecule Content

Total Structure Weight: 47.26 kDa
Atom Count: 3,403
Modeled Residue Count: 376
Deposited Residue Count: 388
Unique protein chains: 1
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
PUM-HD domain-containing protein	A	379	Caenorhabditis elegans	Mutation(s): 0 Gene Names: puf-3, CELE_Y45F10A.2, Y45F10A.2
UniProt
Find proteins for Q9U2G4 (Caenorhabditis elegans) Explore Q9U2G4 Go to UniProtKB: Q9U2G4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9U2G4
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image

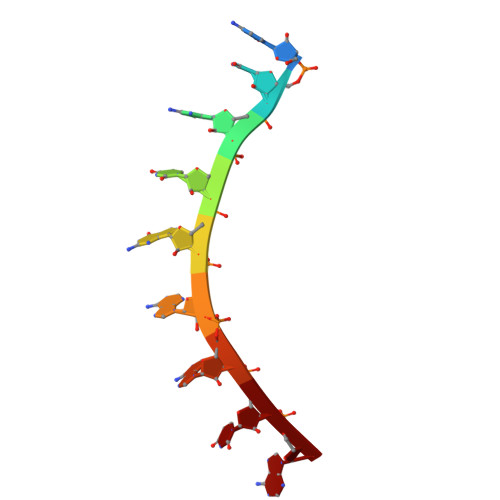

RNA I-1	B	9	Caenorhabditis elegans
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GOL (Subject of Investigation/LOI) Query on GOL Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain H [auth A] SDF format, chain J [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] SDF format, chain I [auth A] SDF format, chain G [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain H [auth A] MOL2 format, chain J [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain I [auth A] MOL2 format, chain G [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain H [auth A] mmCIF format, chain J [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain I [auth A] mmCIF format, chain G [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A]
