9PHS | pdb_00009phs

Crystal structure of the A/Puerto Rico/8/1934 (H1N1) influenza virus hemagglutinin in complex with fusion inhibitor cyclic peptide CP141085 (CP1)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.02 Å
  • R-Value Free:
    0.248 (Depositor), 0.248 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.214 (DCC)
  • R-Value Observed:
    0.217 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

V H H antibody loop guides design of a synthetic macrocyclic peptide that potently blocks influenza virus membrane fusion.

Kadam, R.U.Juraszek, J.Brandenburg, B.Garg, D.Zhu, X.Jongeneelen, M.Schepens, W.B.G.Stoops, B.Vermond, J.Goutier, W.Tang, C.Blokland, S.Vogels, R.Friesen, R.H.E.van Dongen, M.J.P.Wilson, I.A.

(2025) Npj Viruses 3: 83-83

  • DOI: https://doi.org/10.1038/s44298-025-00166-1
  • Primary Citation of Related Structures:
    9PHD, 9PHQ, 9PHS, 9PHT

  • PubMed Abstract:

    Miniaturizing biologically complex structural motifs to produce synthetic functional mimetics holds significant promise for development of new therapeutic modalities. Here, we demonstrate a unique approach using the key binding loop of the single variable domain of a heavy chain (V H H) llama antibody as a starting point for peptide design. V H H antibodies of camelids and sharks generally have longer, but more ligand-efficient complementarity determining region 3 (CDR3) loops and are relatively stable structures. We harnessed these attributes as templates for design of a series of synthetic macrocyclic peptides. The designed peptides exhibit nanomolar binding to influenza hemagglutinin (HA) and heterosubtypic in vitro neutralization breadth against influenza A viruses by inhibiting the low pH mediated HA conformational changes that lead to membrane fusion. X-ray structures of peptide-HA complexes reveal high structural mimicry with the parent V H H antibody. One such macrocycle peptide candidate is promising for further development of broad protection against influenza A group 1 viruses.


  • Organizational Affiliation
    • Department of Integrative Structural and Computational Biology, The Scripps Research Institute, La Jolla, CA, USA. rkadam3@its.jnj.com.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

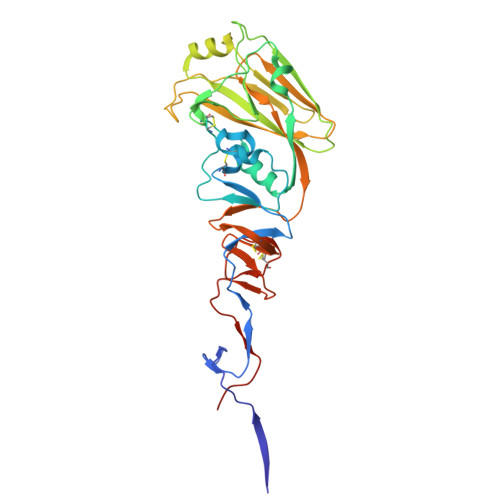

Hemagglutinin
A, C, E
326Influenza A virus (A/Puerto Rico/8/1934(H1N1))Mutation(s): 0
Gene Names: HA
UniProt
Find proteins for P03452 (Influenza A virus (strain A/Puerto Rico/8/1934 H1N1))
Explore P03452
Go to UniProtKB:  P03452
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03452
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

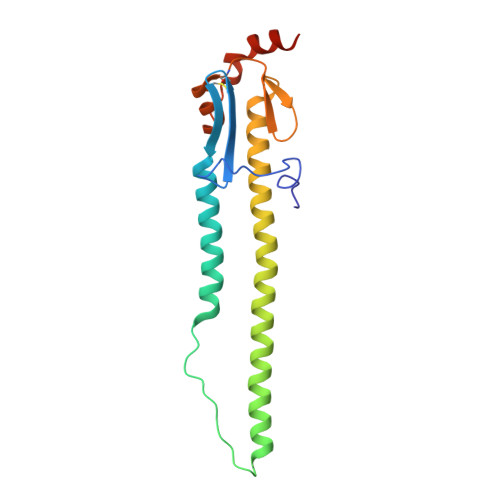

Hemagglutinin HA2 chain
B, D, F
176Influenza A virus (A/Puerto Rico/8/1934(H1N1))Mutation(s): 0
Gene Names: HA
UniProt
Find proteins for P03452 (Influenza A virus (strain A/Puerto Rico/8/1934 H1N1))
Explore P03452
Go to UniProtKB:  P03452
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03452
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

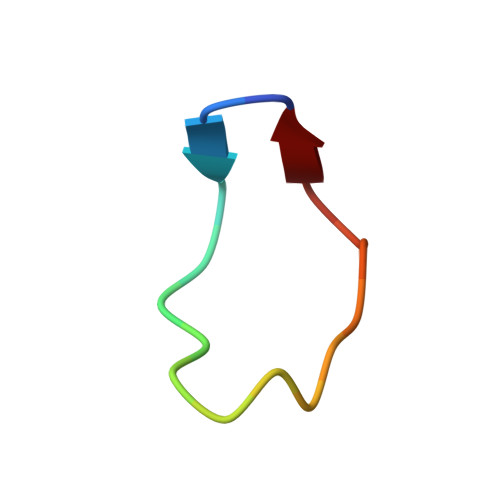

cyclic peptide CP141085G,
H,
I [auth K]
19synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranoseJ [auth L],
K [auth I],
L [auth J]
3N-Glycosylation
Glycosylation Resources
GlyTouCan:  G21290RB
GlyCosmos:  G21290RB
GlyGen:  G21290RB
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAG
Query on NAG

Download Ideal Coordinates CCD File
M [auth A]
P [auth B]
R [auth C]
U [auth D]
W [auth E]
M [auth A],
P [auth B],
R [auth C],
U [auth D],
W [auth E],
X [auth E],
Z [auth F]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
AA [auth F],
O [auth A],
Q [auth B],
T [auth C],
V [auth D]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
N [auth A],
S [auth C],
Y [auth E]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.02 Å
  • R-Value Free:  0.248 (Depositor), 0.248 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.214 (DCC)
  • R-Value Observed: 0.217 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 189.799α = 90
b = 108.825β = 122.374
c = 118.24γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2025-12-31
    Changes: Database references
