9PDI | pdb_00009pdi

Nub1/Fat10-processing human 26S proteasome with Rpt2 at top of spiral staircase and partially unfolded Eos (AAA+ motor locally refined)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.98 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9PDI

This is version 1.1 of the entry. See complete history

Literature

Structural landscape of the degrading 26S proteasome reveals conformation-specific binding of TXNL1.

Arkinson, C.Gee, C.L.Zhang, Z.Dong, K.C.Martin, A.

(2025) Nat Struct Mol Biol 32: 2403-2415

  • DOI: https://doi.org/10.1038/s41594-025-01695-2
  • Primary Citation Related Structures:
    9E8G, 9E8H, 9E8I, 9E8J, 9E8K, 9E8L, 9E8N, 9E8O, 9E8Q, 9PDI, 9PDL, 9PDN, 9PF1

  • PubMed Abstract:

    The 26S proteasome targets many cellular proteins for degradation during homeostasis and quality control. Proteasome-interacting cofactors modulate these functions and aid in substrate degradation. Here we solve high-resolution structures of the redox active cofactor TXNL1 bound to the human 26S proteasome at saturating and substoichiometric concentrations by time-resolved cryo-electron microscopy (cryo-EM). We identify distinct binding modes of TXNL1 that depend on the proteasome conformation and ATPase motor states. Together with biophysical and biochemical experiments, we show that the resting-state proteasome binds TXNL1 with low affinity and in variable positions on top of the Rpn11 deubiquitinase. In contrast, in the actively degrading proteasome, TXNL1 uses additional interactions for high-affinity binding, whereby its C-terminal tail covers the catalytic groove of Rpn11 and coordinates the active-site Zn 2+ . Furthermore, these cryo-EM structures of the degrading proteasome capture the ATPase hexamer in several spiral-staircase arrangements that indicate temporally asymmetric hydrolysis and conformational changes in bursts during mechanical substrate unfolding and translocation. Remarkably, we catch the proteasome in the act of unfolding the β-barrel mEos3.2 substrate while the ATPase hexamer is in a particular staircase register. Our findings advance current models for protein translocation through hexameric AAA+ motors and reveal how the proteasome uses its distinct conformational states to coordinate cofactor binding and substrate processing.


  • Organizational Affiliation
    • California Institute for Quantitative Biosciences, University of California at Berkeley, Berkeley, CA, USA.

Macromolecule Content

  • Total Structure Weight: 531.6 kDa
  • Atom Count: 33,548
  • Modeled Residue Count: 4,263
  • Deposited Residue Count: 4,719
  • Unique protein chains: 15

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

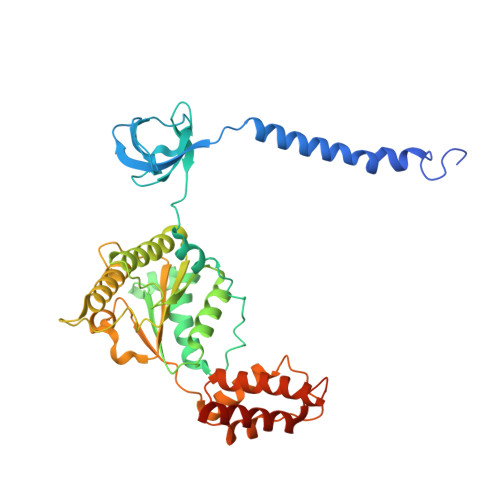

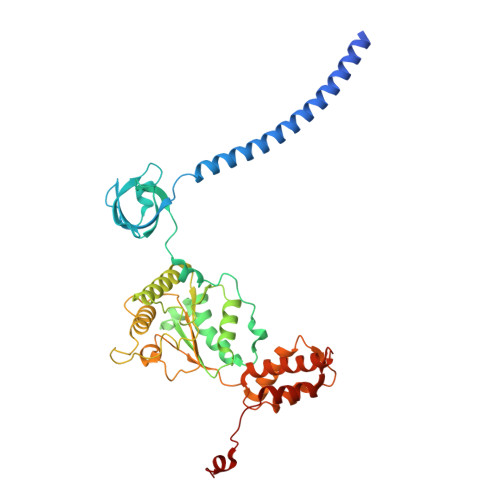

26S protease regulatory subunit 8A [auth C]406Homo sapiensMutation(s): 0
Gene Names: PSMC5SUG1
UniProt & NIH Common Fund Data Resources
Find proteins for P62195 (Homo sapiens)
Explore P62195
Go to UniProtKB:  P62195
PHAROS:  P62195
GTEx:  ENSG00000087191
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62195
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
26S proteasome regulatory subunit 6BB [auth D]418Homo sapiensMutation(s): 0
Gene Names: PSMC4MIP224TBP7
UniProt & NIH Common Fund Data Resources
Find proteins for P43686 (Homo sapiens)
Explore P43686
Go to UniProtKB:  P43686
PHAROS:  P43686
GTEx:  ENSG00000013275
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP43686
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
26S protease regulatory subunit 10BC [auth E]389Homo sapiensMutation(s): 0
Gene Names: PSMC6SUG2
UniProt & NIH Common Fund Data Resources
Find proteins for P62333 (Homo sapiens)
Explore P62333
Go to UniProtKB:  P62333
GTEx:  ENSG00000100519
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62333
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

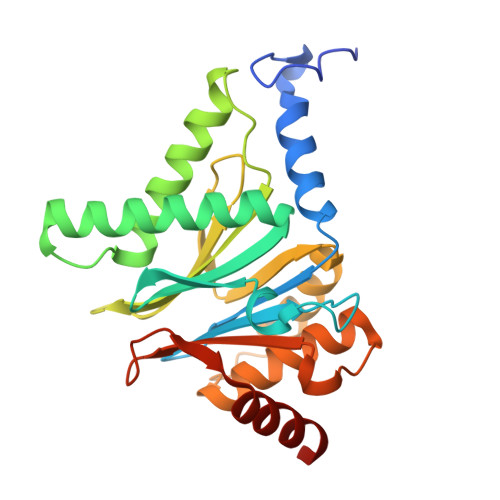

Proteasome subunit alpha type-6D [auth G]246Homo sapiensMutation(s): 0
Gene Names: PSMA6PROS27
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P60900 (Homo sapiens)
Explore P60900
Go to UniProtKB:  P60900
PHAROS:  P60900
GTEx:  ENSG00000100902
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60900
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

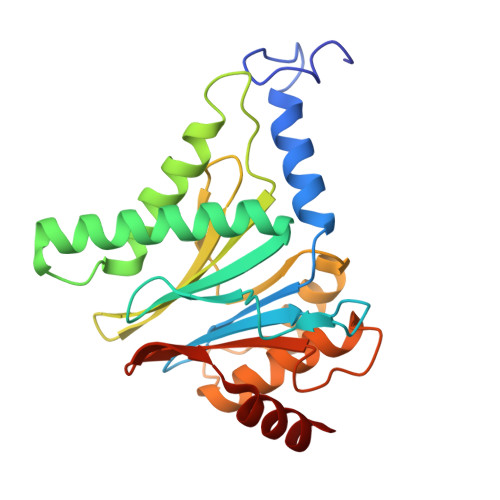

Proteasome subunit alpha type-2E [auth H]234Homo sapiensMutation(s): 0
Gene Names: PSMA2HC3PSC3
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25787 (Homo sapiens)
Explore P25787
Go to UniProtKB:  P25787
PHAROS:  P25787
GTEx:  ENSG00000106588
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25787
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

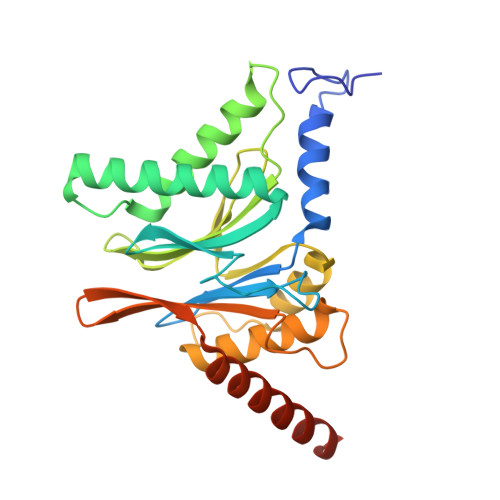

Proteasome subunit alpha type-4F [auth I]261Homo sapiensMutation(s): 0
Gene Names: PSMA4HC9PSC9
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25789 (Homo sapiens)
Explore P25789
Go to UniProtKB:  P25789
PHAROS:  P25789
GTEx:  ENSG00000041357
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25789
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

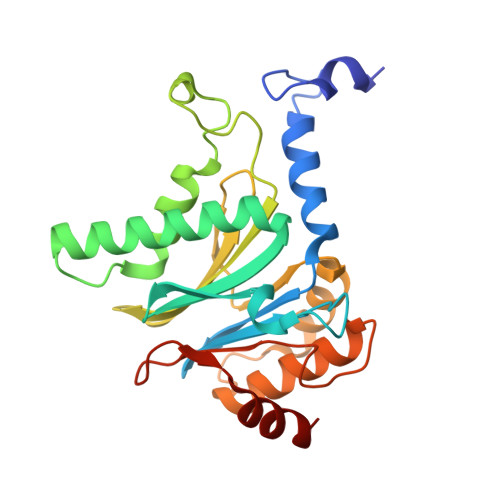

Proteasome subunit alpha type-7G [auth J]248Homo sapiensMutation(s): 0
Gene Names: PSMA7HSPC
UniProt & NIH Common Fund Data Resources
Find proteins for O14818 (Homo sapiens)
Explore O14818
Go to UniProtKB:  O14818
PHAROS:  O14818
GTEx:  ENSG00000101182
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO14818
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

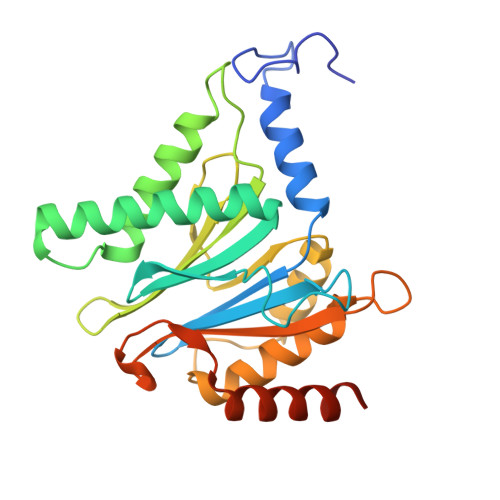

Proteasome subunit alpha type-5H [auth K]241Homo sapiensMutation(s): 0
Gene Names: PSMA5
UniProt & NIH Common Fund Data Resources
Find proteins for P28066 (Homo sapiens)
Explore P28066
Go to UniProtKB:  P28066
PHAROS:  P28066
GTEx:  ENSG00000143106
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28066
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

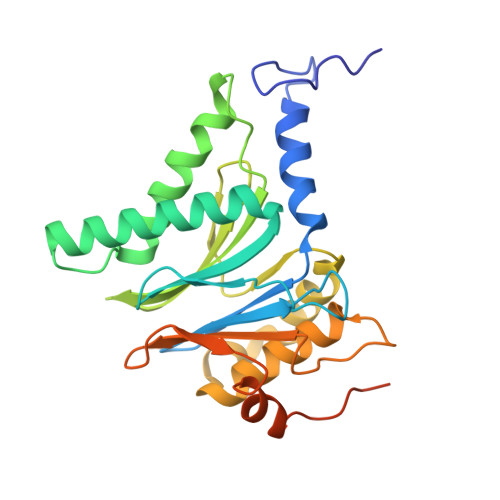

Proteasome subunit alpha type-1I [auth L]263Homo sapiensMutation(s): 0
Gene Names: PSMA1HC2NUPROS30PSC2
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25786 (Homo sapiens)
Explore P25786
Go to UniProtKB:  P25786
PHAROS:  P25786
GTEx:  ENSG00000129084
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25786
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
Proteasome subunit alpha type-3J [auth M]255Homo sapiensMutation(s): 0
Gene Names: PSMA3HC8PSC8
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25788 (Homo sapiens)
Explore P25788
Go to UniProtKB:  P25788
PHAROS:  P25788
GTEx:  ENSG00000100567
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25788
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

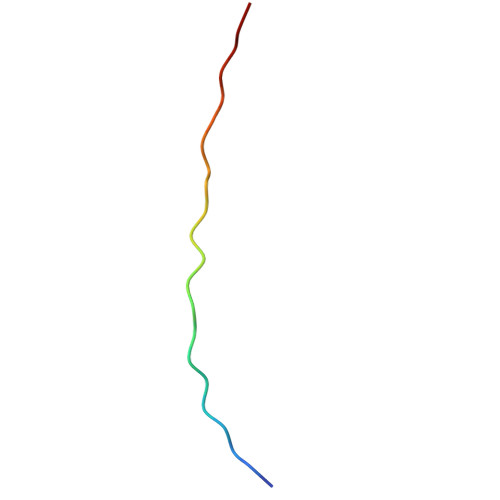

Substrate polypeptideK [auth v]22Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

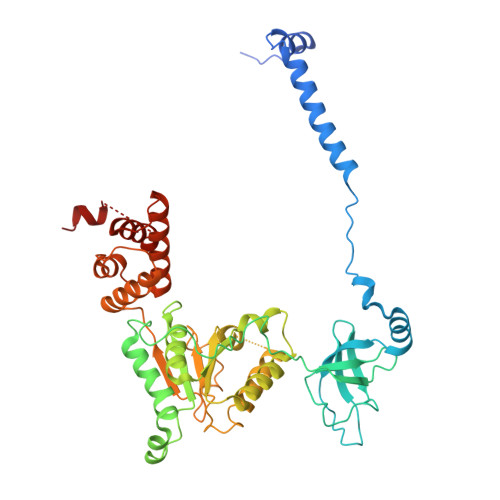

26S proteasome regulatory subunit 7L [auth A]433Homo sapiensMutation(s): 0
Gene Names: PSMC2MSS1
UniProt & NIH Common Fund Data Resources
Find proteins for P35998 (Homo sapiens)
Explore P35998
Go to UniProtKB:  P35998
PHAROS:  P35998
GTEx:  ENSG00000161057
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35998
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage

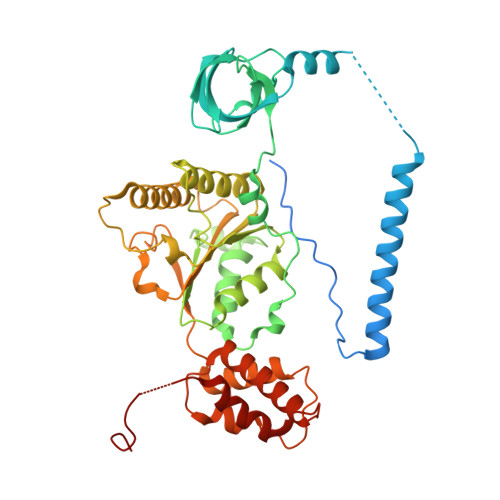

26S proteasome regulatory subunit 4M [auth B]440Homo sapiensMutation(s): 0
Gene Names: PSMC1
UniProt & NIH Common Fund Data Resources
Find proteins for P62191 (Homo sapiens)
Explore P62191
Go to UniProtKB:  P62191
GTEx:  ENSG00000100764
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62191
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

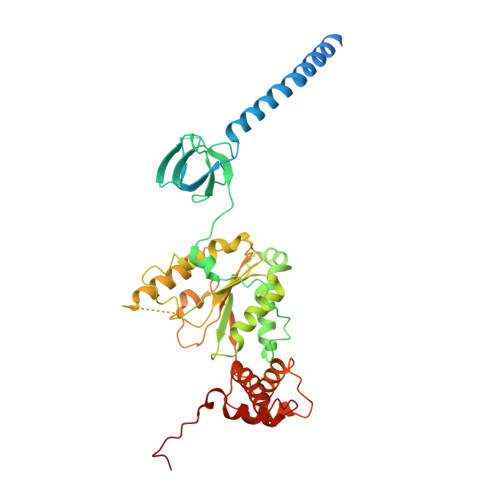

26S proteasome regulatory subunit 6AN [auth F]439Homo sapiensMutation(s): 0
Gene Names: PSMC3TBP1
UniProt & NIH Common Fund Data Resources
Find proteins for P17980 (Homo sapiens)
Explore P17980
Go to UniProtKB:  P17980
PHAROS:  P17980
GTEx:  ENSG00000165916
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP17980
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage

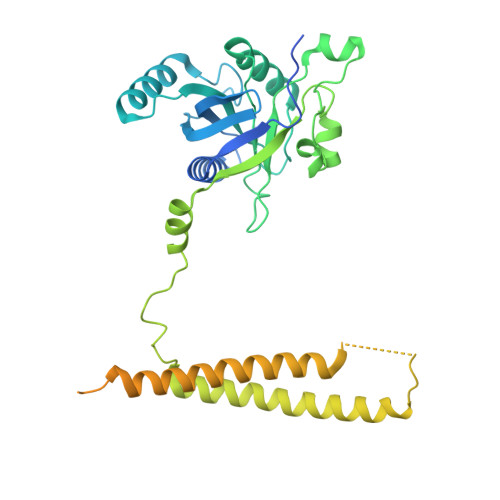

26S proteasome non-ATPase regulatory subunit 14O [auth c]424Homo sapiensMutation(s): 0
Gene Names: PSMD14
EC: 3.4.19.12
UniProt & NIH Common Fund Data Resources
Find proteins for O00487 (Homo sapiens)
Explore O00487
Go to UniProtKB:  O00487
PHAROS:  O00487
GTEx:  ENSG00000115233
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00487
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP
(Subject of Investigation/LOI)

Query on ATP



Download:Ideal Coordinates CCD File
P [auth C],
V [auth B]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
ADP
(Subject of Investigation/LOI)

Query on ADP



Download:Ideal Coordinates CCD File
R [auth D],
T [auth E],
U [auth A],
X [auth F]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
ZN
(Subject of Investigation/LOI)

Query on ZN



Download:Ideal Coordinates CCD File
Y [auth c]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG
(Subject of Investigation/LOI)

Query on MG



Download:Ideal Coordinates CCD File
Q [auth C],
S [auth D],
W [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.98 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.1_5286:
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-19
    Type: Initial release
  • Version 1.1: 2025-12-24
    Changes: Data collection, Database references
