9P8L | pdb_00009p8l

Structure of Lockin in complex with 3'cADPR


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.62 Å
  • R-Value Free:
    0.209 (Depositor), 0.209 (DCC)
  • R-Value Work:
    0.177 (Depositor), 0.176 (DCC)
  • R-Value Observed:
    0.178 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural modeling reveals viral proteins that manipulate host immune signaling.

Tal, N.Hadari, R.Chang, R.B.Osterman, I.Jacobson, R.Yirmiya, E.Bechon, N.Hochhauser, D.Rivera, M.L.Madhala, B.Garb, J.Wein, T.Kranzusch, P.Amitai, G.Sorek, R.

(2025) bioRxiv

  • DOI: https://doi.org/10.1101/2025.07.12.664507
  • Primary Citation of Related Structures:
    9P8L

  • PubMed Abstract:

    Immune pathways that use intracellular nucleotide signaling are common in animals, plants and bacteria. Viruses can inhibit nucleotide immune signaling by producing proteins that sequester or cleave the immune signals. Here we analyzed evolutionarily unrelated signal-sequestering viral proteins, finding that they share structural and biophysical traits in their genetic organization, ternary structures and binding pocket properties. Based on these traits we developed a structure-guided computational pipeline that can sift through large phage genome databases to unbiasedly predict phage proteins that manipulate bacterial immune signaling. Numerous previously uncharacterized proteins, grouped into three families, were verified to inhibit the bacterial Thoeris and CBASS signaling systems. Proteins of the Sequestin and Lockin families bind and sequester the TIR-produced signaling molecules 3'cADPR and His-ADPR, while proteins of the Acb5 family cleave and inactivate 3'3'-cGAMP and related molecules. X-ray crystallography and structural modeling, combined with mutational analyses, explain the structural basis for sequestration or cleavage of the immune signals. Thousands of these signal-manipulating proteins were detected in phage protein databases, with some instances present in well-studied model phages such as T2, T4 and T6. Our study explains how phages commonly evade bacterial immune signaling, and offers a structure-guided analytical approach for discovery of viral immune-manipulating proteins in any database of choice.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

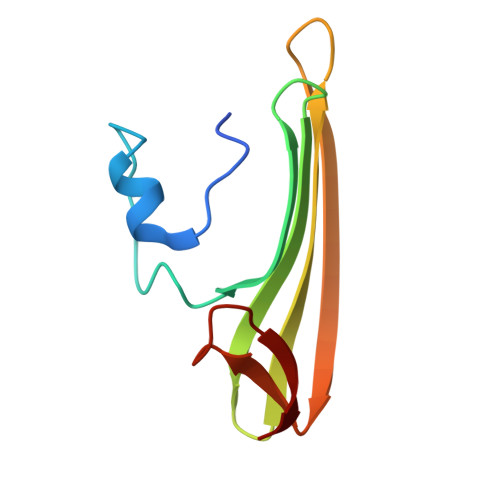

Lockin
A, B, C
98phage metagenomeMutation(s): 0
UniProt
Find proteins for Q81ET1 (Bacillus cereus (strain ATCC 14579 / DSM 31 / CCUG 7414 / JCM 2152 / NBRC 15305 / NCIMB 9373 / NCTC 2599 / NRRL B-3711))
Explore Q81ET1
Go to UniProtKB:  Q81ET1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ81ET1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
OJC (Subject of Investigation/LOI)
Query on OJC

Download Ideal Coordinates CCD File
D [auth A],
E [auth B],
F [auth C]
(2R,3R,3aS,5S,6R,7S,8R,11R,13S,15aR)-2-(6-amino-9H-purin-9-yl)-3,6,7,11,13-pentahydroxyoctahydro-2H,5H,11H,13H-5,8-epoxy-11lambda~5~,13lambda~5~-furo[2,3-g][1,3,5,9,2,4]tetraoxadiphosphacyclotetradecine-11,13-dione
C15 H21 N5 O13 P2
NDSLKXAJVDJCEG-ZQSHOCFMSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.62 Å
  • R-Value Free:  0.209 (Depositor), 0.209 (DCC)
  • R-Value Work:  0.177 (Depositor), 0.176 (DCC)
  • R-Value Observed: 0.178 (Depositor)
Space Group: P 2 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 46.584α = 90
b = 74.424β = 90
c = 80.33γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
RAPDdata reduction
Aimlessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States1DP2 GM146250-01

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-30
    Type: Initial release
