9NI0 | pdb_00009ni0

L54A Mutant of E. coli Dihydrofolate Reductase Complexed with Nicotinamide Adenine Dinucleotide Phosphate (oxidized form)

PDB DOI: https://doi.org/10.2210/pdb9NI0/pdb

Classification: OXIDOREDUCTASE
Organism(s): Escherichia coli
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2025-02-25 Released: 2025-04-23
Deposition Author(s): Fried, S.D.E., Boxer, S.G.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.51 Å
R-Value Free:
0.221 (Depositor), 0.218 (DCC)
R-Value Work:
0.198 (Depositor), 0.200 (DCC)
R-Value Observed:
0.200 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9NI0

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Role of Electrostatics in Hydride Transfer by Dihydrofolate Reductase

Fried, S.D.E., Mukherjee, S., Mao, Y., Boxer, S.G.

To be published.

Macromolecule Content

Total Structure Weight: 37.52 kDa
Atom Count: 3,017
Modeled Residue Count: 312
Deposited Residue Count: 318
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

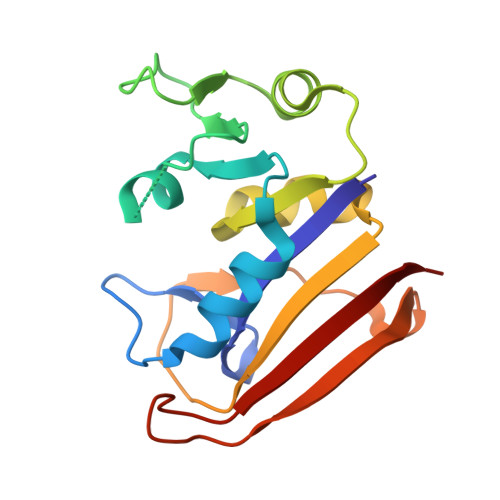

Dihydrofolate reductase	A, B	159	Escherichia coli	Mutation(s): 1 Gene Names: folA, c0058 EC: 1.5.1.3
UniProt
Find proteins for P0ABQ5 (Escherichia coli O6:H1 (strain CFT073 / ATCC 700928 / UPEC)) Explore P0ABQ5 Go to UniProtKB: P0ABQ5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0ABQ5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAP (Subject of Investigation/LOI) Query on NAP Download:Ideal Coordinates CCD File SDF format, chain E [auth B] SDF format, chain C [auth A] MOL2 format, chain E [auth B] MOL2 format, chain C [auth A] mmCIF format, chain E [auth B] mmCIF format, chain C [auth A]	C [auth A], E [auth B]	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE C₂₁ H₂₈ N₇ O₁₇ P₃ XJLXINKUBYWONI-NNYOXOHSSA-N		Interactions Focus chain C [auth A] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth B]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain F [auth B] SDF format, chain D [auth A] MOL2 format, chain F [auth B] MOL2 format, chain D [auth A] mmCIF format, chain F [auth B] mmCIF format, chain D [auth A]	D [auth A], F [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain F [auth B] Interactions & Density Focus chain D [auth A] Focus chain F [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.51 Å
R-Value Free: 0.221 (Depositor), 0.218 (DCC)
R-Value Work: 0.198 (Depositor), 0.200 (DCC)
R-Value Observed: 0.200 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 38.597	α = 90
b = 58.812	β = 102.39
c = 71.276	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-04-23

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM118044

Revision History (Full details and data files)

Version 1.0: 2025-04-23
Type: Initial release
