9N9P | pdb_00009n9p

Cryo-EM structure of the Fta RNAP complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.95 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural basis of RNA-guided transcription by a dCas12f-sigma E -RNAP complex.

Xiao, R.Hoffmann, F.T.Xie, D.Wiegand, T.Palmieri, A.I.Sternberg, S.H.Chang, L.

(2026) Nature

  • DOI: https://doi.org/10.1038/s41586-026-10178-3
  • Primary Citation Related Structures:
    9N9C, 9N9M, 9N9O, 9N9P, 9N9Q

  • PubMed Abstract:

    In both natural and engineered biological systems, RNA-guided proteins have emerged as critical transcriptional regulators by modulating RNA polymerase (RNAP) and its associated factors 1-3 . In bacteria, diverse clades of repurposed TnpB and CRISPR-associated proteins repress gene expression by blocking transcription initiation or elongation, enabling non-canonical modes of regulatory control and adaptive immunity 1,4,5 . A distinct class of nuclease-dead Cas12f homologues (dCas12f) instead activates gene expression through its association with unique extracytoplasmic function sigma factors (σ E ) 6 , although the molecular basis has remained elusive. Here we reveal a new mode of RNA-guided transcription initiation by determining the cryo-electron microscopy structures of the dCas12f-σ E system from Flagellimonas taeanensis. We captured multiple conformational and compositional states, including the DNA-bound dCas12f-σ E -RNAP holoenzyme complex, revealing how RNA-guided DNA binding leads to σ E -RNAP recruitment and nascent mRNA synthesis at a precisely defined distance downstream of the R-loop. Rather than following the classical paradigm of σ E -dependent promoter recognition, these studies show that recognition of the -35 element is largely supplanted by CRISPR-Cas targeting, whereas the melted -10 element is stabilized through unusual stacking interactions rather than insertion into the typical recognition pocket. Collectively, this work provides high-resolution insights into an unexpected mechanism of RNA-guided transcription, expanding our understanding of bacterial gene regulation and opening new avenues for programmable transcriptional control.


  • Organizational Affiliation
    • Department of Biological Sciences, Purdue University, West Lafayette, IN, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

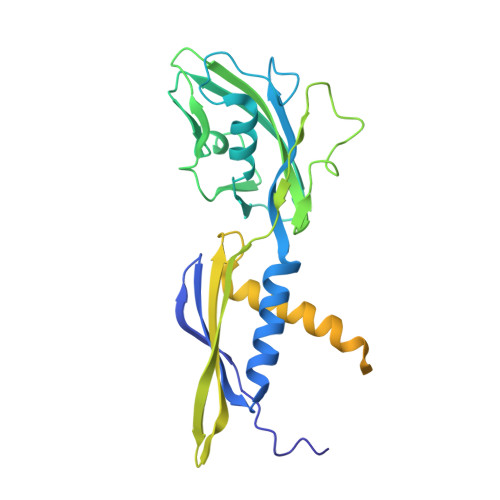

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit alpha
A, B
330Flagellimonas taeanensisMutation(s): 0
Gene Names: rpoASAMN05216293_2985
EC: 2.7.7.6
UniProt
Find proteins for A0A1M6YWR9 (Flagellimonas taeanensis)
Explore A0A1M6YWR9
Go to UniProtKB:  A0A1M6YWR9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A1M6YWR9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

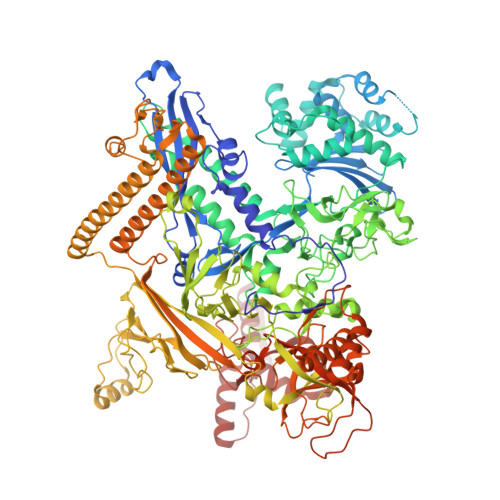

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta1,269Flagellimonas taeanensisMutation(s): 0
Gene Names: rpoBSAMN05216293_2127
EC: 2.7.7.6
UniProt
Find proteins for A0A3A1NXR2 (Flagellimonas taeanensis)
Explore A0A3A1NXR2
Go to UniProtKB:  A0A3A1NXR2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A3A1NXR2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

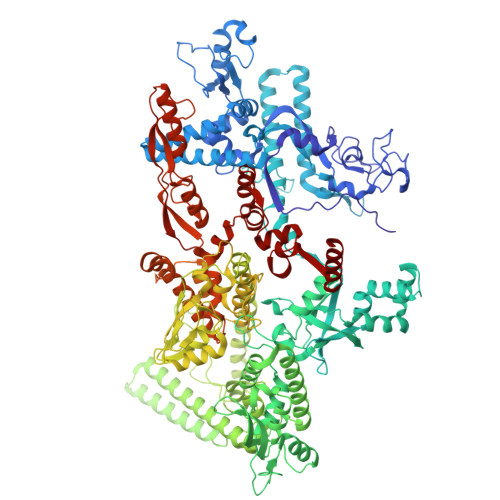

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta'1,432Flagellimonas taeanensisMutation(s): 0
Gene Names: rpoCSAMN05216293_2128
EC: 2.7.7.6
UniProt
Find proteins for A0A3A1NXQ1 (Flagellimonas taeanensis)
Explore A0A3A1NXQ1
Go to UniProtKB:  A0A3A1NXQ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A3A1NXQ1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

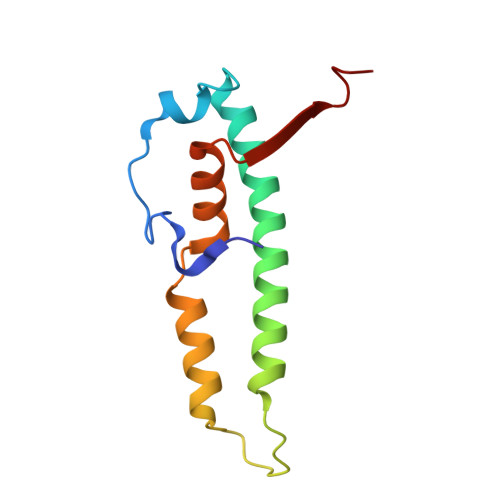

Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
RNA polymerase Rpb6108Flagellimonas taeanensisMutation(s): 0
Gene Names: SAMN05216293_3853
UniProt
Find proteins for A0A1M7BX03 (Flagellimonas taeanensis)
Explore A0A1M7BX03
Go to UniProtKB:  A0A1M7BX03
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A1M7BX03
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.95 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.1_5286

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM138675
National Science Foundation (NSF, United States)United States2339799
National Science Foundation (NSF, United States)United States2239685
The Pew Charitable TrustsUnited States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2026-03-04
    Changes: Data collection, Database references
  • Version 1.2: 2026-03-18
    Changes: Data collection, Database references
