9N86 | pdb_00009n86

Cryo-EM structure of human importin beta:importin alpha (IBB) complex

PDB DOI: https://doi.org/10.2210/pdb9N86/pdb
EM Map EMD-49116: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-02-07 Released: 2025-12-10
Deposition Author(s): Ko, Y., Cingolani, G., Suinn, S.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9N86

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of human importin beta-Ran-GTP heterodimer

Ko, Y., Cingolani, G.

To be published.

Macromolecule Content

Total Structure Weight: 103.61 kDa
Atom Count: 7,173
Modeled Residue Count: 919
Deposited Residue Count: 929
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Importin subunit beta-1	A	876	Homo sapiens	Mutation(s): 0 Gene Names: KPNB1, NTF97
UniProt & NIH Common Fund Data Resources
Find proteins for Q14974 (Homo sapiens) Explore Q14974 Go to UniProtKB: Q14974
PHAROS: Q14974 GTEx: ENSG00000108424
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q14974
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

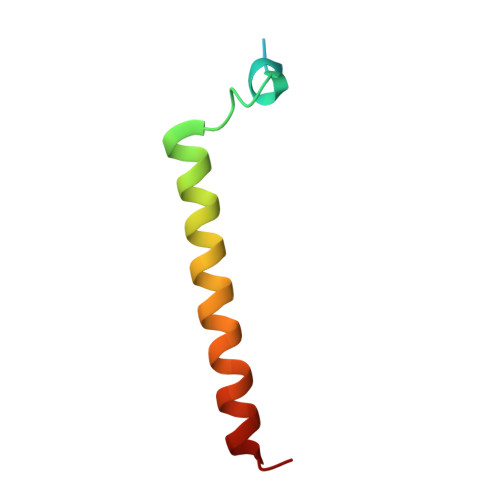

Importin subunit alpha-1	B	53	Homo sapiens	Mutation(s): 0 Gene Names: KPNA2, RCH1, SRP1
UniProt & NIH Common Fund Data Resources
Find proteins for P52292 (Homo sapiens) Explore P52292 Go to UniProtKB: P52292
PHAROS: P52292 GTEx: ENSG00000182481
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P52292
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-10

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-12-10
Type: Initial release
