9MU2 | pdb_00009mu2

SaPI1 neck structure with DNA, tail completion protein, and tape measure protein


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.54 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure of the Staphylococcus aureus bacteriophage 80 alpha neck shows details of the DNA, tail completion protein, and tape measure protein.

Kizziah, J.L.Mukherjee, A.Parker, L.K.Dokland, T.

(2025) Structure 33: 1063-1073.e2

  • DOI: https://doi.org/10.1016/j.str.2025.03.007
  • Primary Citation of Related Structures:
    9MU2, 9MU3

  • PubMed Abstract:

    The Staphylococcus aureus pathogenicity islands (SaPIs), including SaPI1, are a type of mobile genetic elements (MGEs) that are mobilized at high frequency by "helper" bacteriophages, such as 80α, leading to packaging of the SaPI genomes into virions made from helper-encoded structural proteins. 80α and SaPI1 virions consist of an icosahedral head connected via a portal vertex to a long, non-contractile tail. A connector or "neck" forms the interface between the tail and the head. Here, we have determined the high-resolution structure of the neck section of SaPI1 virions, including the dodecameric portal and head-tail-connector proteins, and the hexameric head-tail joining, tail terminator and major tail proteins. We also resolved the DNA, the tail completion protein (TCP), and the tape measure protein (TMP) inside the tail, features that have not previously been observed at high resolution. Our study provides insights into the assembly and infection process in this important group of MGEs.


  • Organizational Affiliation
    • Department of Microbiology, University of Alabama at Birmingham, Birmingham, AL 35294, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Head-tail connector protein110Staphylococcus phage 80alphaMutation(s): 0
UniProt
Find proteins for A4ZFB5 (Staphylococcus phage 80alpha)
Explore A4ZFB5
Go to UniProtKB:  A4ZFB5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4ZFB5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
adaptor100Staphylococcus phage 80alphaMutation(s): 0
UniProt
Find proteins for A4ZFB6 (Staphylococcus phage 80alpha)
Explore A4ZFB6
Go to UniProtKB:  A4ZFB6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4ZFB6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DUF3168 domain-containing protein127Staphylococcus phage 80alphaMutation(s): 0
UniProt
Find proteins for A4ZFB8 (Staphylococcus phage 80alpha)
Explore A4ZFB8
Go to UniProtKB:  A4ZFB8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4ZFB8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Major tail protein193Staphylococcus phage 80alphaMutation(s): 0
UniProt
Find proteins for A4ZFB9 (Staphylococcus phage 80alpha)
Explore A4ZFB9
Go to UniProtKB:  A4ZFB9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4ZFB9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

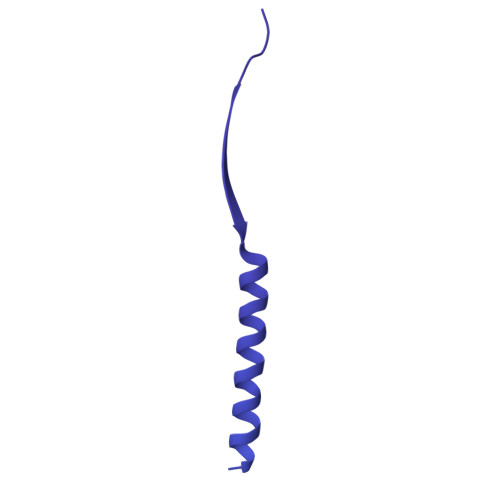

Tape measure protein
M, N, O
1,154Staphylococcus phage 80alphaMutation(s): 0
UniProt
Find proteins for A4ZFC2 (Staphylococcus phage 80alpha)
Explore A4ZFC2
Go to UniProtKB:  A4ZFC2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4ZFC2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
HK97 gp10 family phage protein115Staphylococcus phage 80alphaMutation(s): 0
UniProt
Find proteins for A4ZFB7 (Staphylococcus phage 80alpha)
Explore A4ZFB7
Go to UniProtKB:  A4ZFB7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4ZFB7
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains LengthOrganismImage

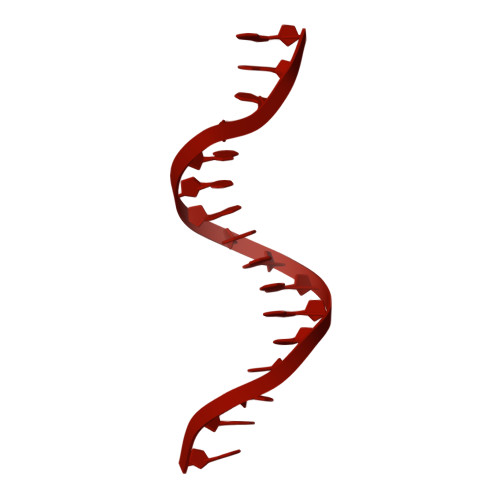

DNA, 5'-3'43,864Staphylococcus phage 80alpha
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains LengthOrganismImage

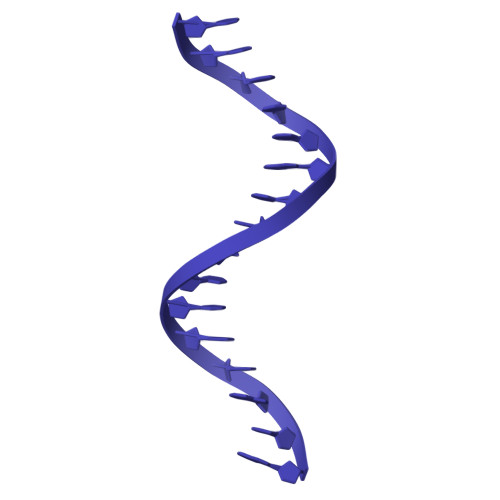

DNA, 3'-5'43,864Staphylococcus phage 80alpha
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.54 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesAI083255

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-11
    Type: Initial release
  • Version 1.1: 2025-06-18
    Changes: Data collection, Database references
