9ML2 | pdb_00009ml2

A7M08 Fab bound to HPV16 L1 pentamer


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Human monoclonal antibodies to HPV16 show evidence for common developmental pathways and public epitopes.

Carter, J.J.Hurlburt, N.K.Scherer, E.M.Singh, S.Rodarte, J.V.Smith, R.A.Lewis, P.Kinzelman, R.Kieltyka, J.Caban, M.E.Wipf, G.C.Pancera, M.Galloway, D.A.

(2025) PLoS Pathog 21: e1013086-e1013086

  • DOI: https://doi.org/10.1371/journal.ppat.1013086
  • Primary Citation of Related Structures:
    9ML1, 9ML2, 9ML3

  • PubMed Abstract:

    Antibodies to human papillomavirus (HPV) primarily recognize surface exposed residues on five loops of the major capsid protein (L1) that vary significantly among HPV types. We determined which loops were required for neutralization for 68 HPV16 specific human monoclonal antibodies (mAbs) cloned from participants who received an HPV vaccine and describe molecular features of those antibodies. Chimeric HPV16 pseudovirus (cpsV), each having one surface loop bearing multiple amino acid substitutions, were used to determine neutralization specificity. The HPV16-FG-loop was the loop most frequently required for neutralization (42 of 68, 61.8%), however, all surface loops were required for neutralization by multiple mAbs: HI (13, 19.1%), DE (15, 22.1%), EF (five, 7.4%), BC (four, 5.9%). Antibodies that required multiple loops were common (17, 25.0%). Three mAbs (4.4%) required sequences on the c-terminus of L1 and for another three mAbs the neutralization specificity could not be determined. Two types of mAbs appeared to be overrepresented: ten mAbs used immunoglobin heavy chain variable region 2-70 (IGHV2-70) with immunoglobin light chain variable region 1-40 (IGLV1-40), having characteristic mutations in complementarity determining region two (CDRL2) of the light chain. Cryogenic electron microscopy (Cryo-EM) revealed that two of these antibodies bound five Fabs per capsomer interacting with all five L1-surface loops. The other type of mAbs that appeared to be overrepresented were nine mAbs using IGHV4-34, six of which also used DH3-16*02 with conserved CDRH3 sequences. Cryo-EM for one of these mAbs, that required the FG-loop for neutralization, was shown to bind one Fab per capsomer at the apex, interacting with the DE- and FG-loops, with sequences of the Fab CDRH3 inserted between the DE- and FG-loops from two L1 proteins. These two types of mAbs were found in the four participants suggesting that these antibodies shared developmental pathways and bound to similar immunodominant epitopes on the virus.


  • Organizational Affiliation
    • Fred Hutchinson Cancer Center, Seattle, Washington, United States of America.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

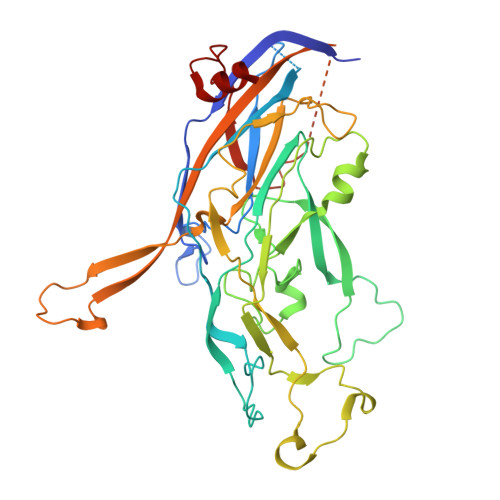

Major capsid protein L1
A, B, C, D, E
426Human papillomavirus 16Mutation(s): 0
Gene Names: L1
UniProt
Find proteins for J3SRV0 (Human papillomavirus type 16)
Explore J3SRV0
Go to UniProtKB:  J3SRV0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupJ3SRV0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

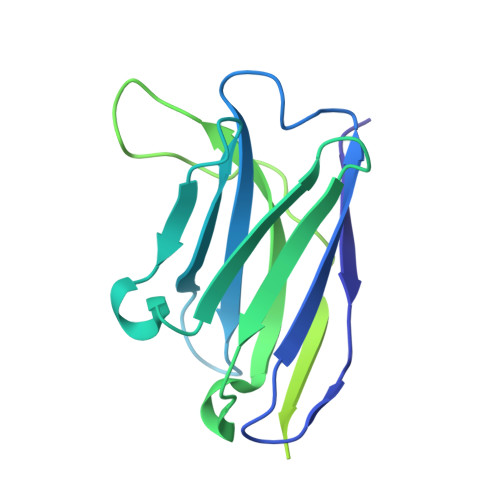

A7M08 Heavy ChainF,
H,
I,
L [auth M],
N [auth O]
235Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

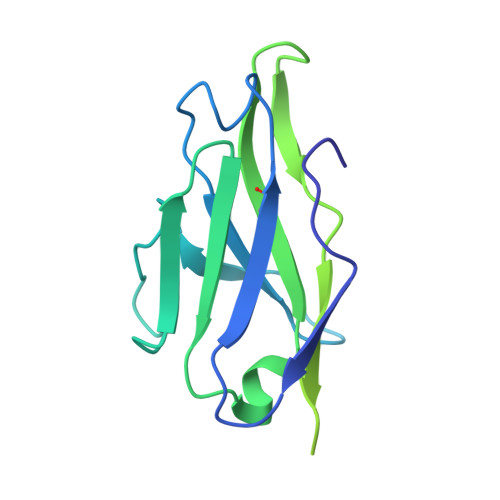

A7M08 Light ChainG,
J,
K [auth L],
M [auth N],
O [auth P]
217Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other privateUnited States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-20
    Type: Initial release
  • Version 1.1: 2025-11-12
    Changes: Data collection, Database references
