9M86 | pdb_00009m86

Crystal structure of SpMETTL16 kinase associated 1 domain in complex with U6 snRNA internal stem loop


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.79 Å
  • R-Value Free:
    0.260 (Depositor), 0.256 (DCC)
  • R-Value Work:
    0.206 (Depositor), 0.207 (DCC)
  • R-Value Observed:
    0.209 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9M86

This is version 1.1 of the entry. See complete history

Literature

Structures and mechanisms of U6 snRNA m 6 A modification by METTL16.

Ju, J.Tomita, K.

(2025) Nat Commun 16: 7708-7708

  • DOI: https://doi.org/10.1038/s41467-025-63021-0
  • Primary Citation Related Structures:
    9M86, 9U47, 9U48

  • PubMed Abstract:

    The N 6 -methyladenosine (m 6 A) modification in U6 snRNA, catalyzed by METTL16 using S-adenosylmethionine (SAM) as the methyl donor, is required for efficient and accurate pre-mRNA splicing. However, the mechanism by which METTL16 modifies U6 snRNA with m 6 A remains elusive. Here, we present cryo-EM structures of METTL16 in complex with U6 snRNA, providing insights into the METTL16-mediated modification of U6 snRNA with m 6 A. The structures reveal that U6 snRNA is recruited to METTL16 through specific interactions between the C-terminal kinase-associated 1 (KA-1) domain of METTL16 and the internal stem-loop (ISL) of U6 snRNA. Upon SAM binding to the catalytic pocket within the N-terminal methyltransferase domain (MTD), U6 snRNA undergoes a structural rearrangement that positions the target adenine-containing motif at the catalytic site. This conformational change is followed by an additional structural adjustment of U6 snRNA into a productive conformation, bringing the target adenosine closer to SAM within the catalytic pocket and thereby ensuring efficient m 6 A modification. The KA-1 domain functions as a scaffold for initial substrate recognition and facilitates the subsequent dynamic methylation process within the MTD, highlighting the cooperative roles of METTL16 domains for U6 snRNA modification.


  • Organizational Affiliation
    • Department of Computational Biology and Medical Sciences, Graduate School of Frontier Sciences, The University of Tokyo Kashiwa, Chiba, Japan.

Macromolecule Content

  • Total Structure Weight: 50.14 kDa
  • Atom Count: 3,238
  • Modeled Residue Count: 298
  • Deposited Residue Count: 320
  • Unique protein chains: 1
  • Unique nucleic acid chains: 1

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
U6 small nuclear RNA (adenine-(43)-N(6))-methyltransferase
A, C
129Schizosaccharomyces pombeMutation(s): 0
Gene Names: SPAC27D7.08c
EC: 2.1.1.346
UniProt
Find proteins for O42662 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O42662
Go to UniProtKB:  O42662
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO42662
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 2
MoleculeChains LengthOrganismImage

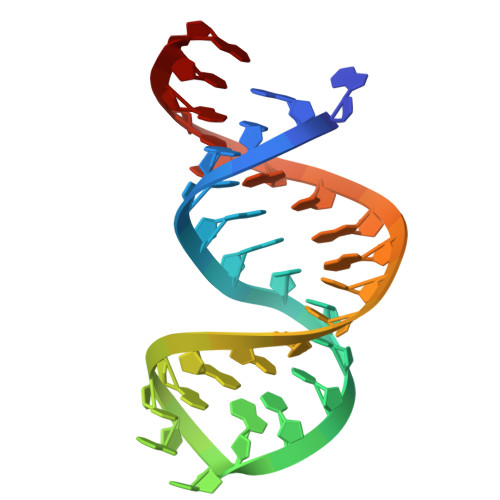

RNA (31-MER)
B, D
31Schizosaccharomyces pombe
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
A, C
L-PEPTIDE LINKINGC5 H11 N O2 SeMET

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.79 Å
  • R-Value Free:  0.260 (Depositor), 0.256 (DCC)
  • R-Value Work:  0.206 (Depositor), 0.207 (DCC)
  • R-Value Observed: 0.209 (Depositor)
Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 44.135α = 87.53
b = 47.136β = 88.35
c = 61.831γ = 62.87
Software Package:
Software NamePurpose
PHENIXrefinement
XSCALEdata scaling
XDSdata reduction
PHASERphasing
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan23H00368

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-06
    Type: Initial release
  • Version 1.1: 2025-09-24
    Changes: Database references
