9M64 | pdb_00009m64

Structure of SPIN90 dimer-Arp2/3 complexes-nucleated actin filaments (Doublet Complex)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Activation of Arp2/3 complex by a SPIN90 dimer in linear actin-filament nucleation.

Francis, J.Pathri, A.K.Shyam, K.T.Sripada, S.Mitra, R.Narvaez-Ortiz, H.Y.Eliyan, K.V.Nolen, B.J.Chowdhury, S.

(2025) Nat Struct Mol Biol 32: 2272-2284

  • DOI: https://doi.org/10.1038/s41594-025-01673-8
  • Primary Citation of Related Structures:
    9M5E, 9M64

  • PubMed Abstract:

    Arp2/3 complex is a key nucleator of actin filaments. It requires activation by nucleation-promoting factors (NPFs). WISH/DIP1/SPIN90 (WDS) proteins represent a unique class of NPFs that activate the Arp2/3 complex independently of preexisting filaments, promoting linear actin-filament nucleation. In fission yeast, Dip1 binds to the clamp subunits in Arp2/3 complex to induce the short-pitch conformation, where Arp2 moves closer to Arp3 to mimic a filamentous actin dimer. However, how WDS proteins stimulate subunit flattening in Arp subunits, a 'scissor-like' conformational change akin to what is observed in an actin monomer during filament formation, remained unclear. Here we present cryo-electron microscopy structures of human SPIN90 bound to activated bovine Arp2/3 complex on an actin filament pointed end. The structures show that SPIN90 dimerizes through a metazoan-specific domain in the middle segment, engaging both the clamp and the Arp3/ARPC3 interface, to drive the activating conformational changes in Arp2/3 complex. Remarkably, a single SPIN90 dimer can also bridge two Arp2/3 complexes, enabling bidirectional actin nucleation and suggesting a mechanism for rapidly assembling complex actin network architectures.


  • Organizational Affiliation
    • CSIR-Centre for Cellular and Molecular Biology, Hyderabad, India.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

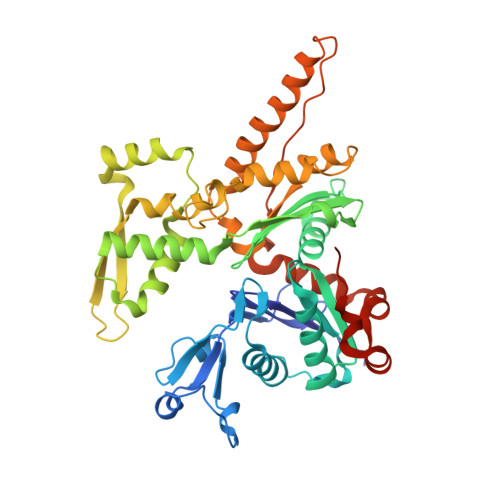

Actin-related protein 3A,
M [auth a]
418Bos taurusMutation(s): 0
UniProt
Find proteins for P61157 (Bos taurus)
Explore P61157
Go to UniProtKB:  P61157
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61157
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2B,
N [auth b]
394Bos taurusMutation(s): 0
UniProt
Find proteins for A7MB62 (Bos taurus)
Explore A7MB62
Go to UniProtKB:  A7MB62
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7MB62
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

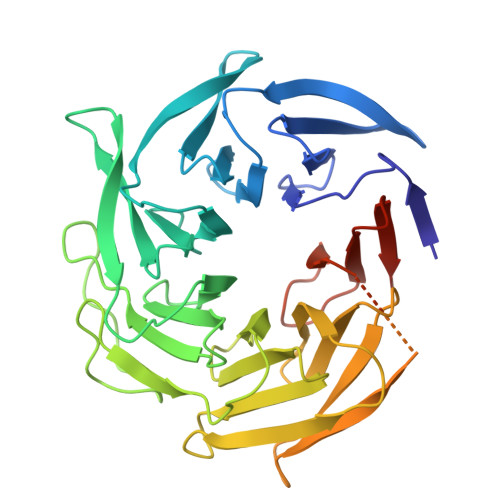

Actin-related protein 2/3 complex subunit 1BC,
O [auth c]
372Bos taurusMutation(s): 0
UniProt
Find proteins for Q58CQ2 (Bos taurus)
Explore Q58CQ2
Go to UniProtKB:  Q58CQ2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ58CQ2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 2D,
P [auth d]
300Bos taurusMutation(s): 0
UniProt
Find proteins for Q3MHR7 (Bos taurus)
Explore Q3MHR7
Go to UniProtKB:  Q3MHR7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3MHR7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

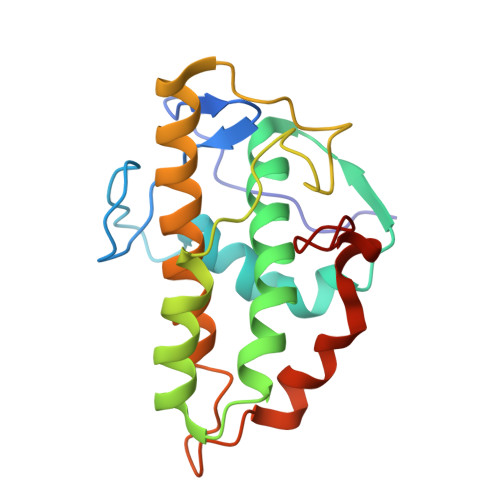

Actin-related protein 2/3 complex subunit 3E,
Q [auth e]
178Bos taurusMutation(s): 0
UniProt
Find proteins for Q3T035 (Bos taurus)
Explore Q3T035
Go to UniProtKB:  Q3T035
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3T035
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

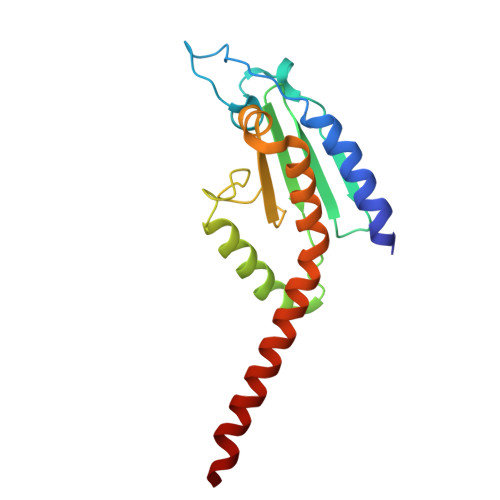

Actin-related protein 2/3 complex subunit 4F,
R [auth f]
168Bos taurusMutation(s): 0
UniProt
Find proteins for Q148J6 (Bos taurus)
Explore Q148J6
Go to UniProtKB:  Q148J6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ148J6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 5G,
S [auth g]
151Bos taurusMutation(s): 0
UniProt
Find proteins for Q3SYX9 (Bos taurus)
Explore Q3SYX9
Go to UniProtKB:  Q3SYX9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3SYX9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

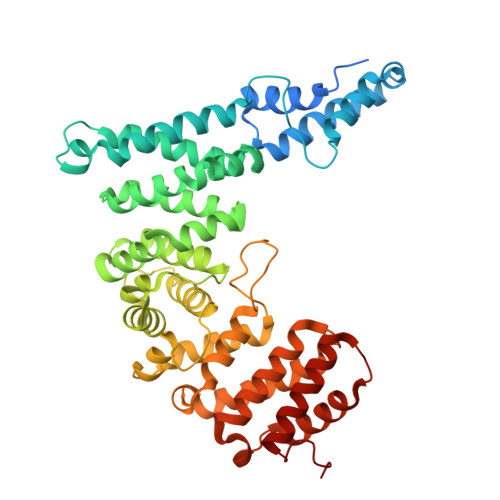

NCK-interacting protein with SH3 domainH,
T [auth h]
454Homo sapiensMutation(s): 0
Gene Names: NCKIPSDAF3P21SPIN90
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NZQ3 (Homo sapiens)
Explore Q9NZQ3
Go to UniProtKB:  Q9NZQ3
PHAROS:  Q9NZQ3
GTEx:  ENSG00000213672
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NZQ3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

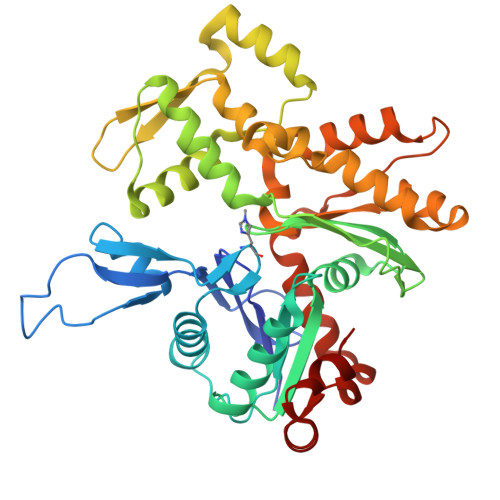

Actin, alpha skeletal muscle377Gallus gallusMutation(s): 0
EC: 3.6.4
UniProt
Find proteins for P68139 (Gallus gallus)
Explore P68139
Go to UniProtKB:  P68139
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68139
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ADP
Query on ADP

Download Ideal Coordinates CCD File
AA [auth B]
CA [auth I]
DA [auth J]
GA [auth K]
HA [auth L]
AA [auth B],
CA [auth I],
DA [auth J],
GA [auth K],
HA [auth L],
JA [auth a],
LA [auth b],
MA [auth i],
PA [auth j],
QA [auth k],
SA [auth l],
Y [auth A]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
BA [auth I]
EA [auth J]
FA [auth K]
IA [auth a]
KA [auth b]
BA [auth I],
EA [auth J],
FA [auth K],
IA [auth a],
KA [auth b],
NA [auth i],
OA [auth j],
RA [auth k],
TA [auth l],
Z [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
HIC
Query on HIC
I
J
K
L
U [auth i]
I,
J,
K,
L,
U [auth i],
V [auth j],
W [auth k],
X [auth l]
L-PEPTIDE LINKINGC7 H11 N3 O2HIS
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC4.6.2

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Council of Scientific & Industrial Research (CSIR)IndiaFBR070301
Council of Scientific & Industrial Research (CSIR)IndiaOLP0028

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-10
    Type: Initial release
  • Version 1.1: 2025-10-01
    Changes: Data collection, Database references
  • Version 1.2: 2025-11-26
    Changes: Data collection, Database references
