9LXR | pdb_00009lxr

A Cryo-EM structure of LA-PTH-PTH1R-Beta-arrestin1 complex (state 1 conformation)

• PDB DOI: https://doi.org/10.2210/pdb9LXR/pdb
• EM Map EMD-63489: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Homo sapiens
• Expression System: Spodoptera frugiperda
• Mutation(s): No


• Deposited: 2025-02-19 Released: 2025-09-10
• Deposition Author(s): Zhao, L., Yuan, Q.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.07 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

A Cryo-EM structure of LA-PTH-PTH1R-B-arrestin1 complex (state 1 conformation)

Zhao, L., Yuan, Q.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 5-mer - A2B1C1D1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 149.77 kDa
• Atom Count: 8,572
• Modeled Residue Count: 1,092
• Deposited Residue Count: 1,337
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Beta-arrestin-1	A [auth B]	374	Homo sapiens	Mutation(s): 0  Gene Names: ARRB1, ARR1
UniProt & NIH Common Fund Data Resources
Find proteins for P49407 (Homo sapiens) Explore P49407  Go to UniProtKB:  P49407
PHAROS:  P49407 GTEx:  ENSG00000137486

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

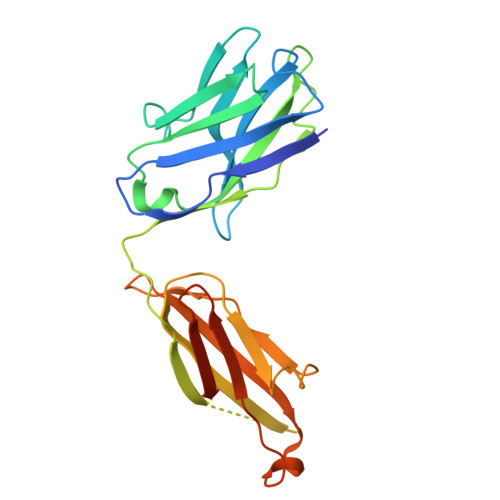

Fab30H	B [auth C]	230	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

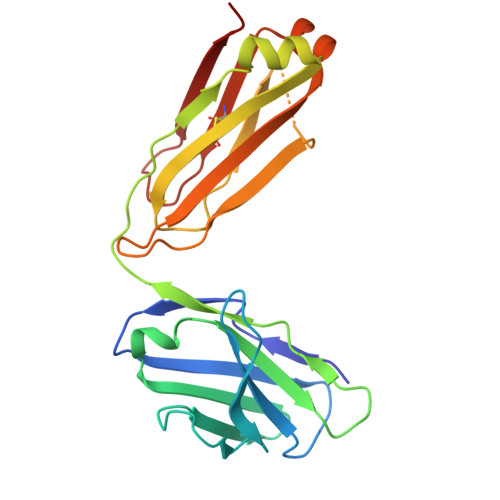

Fab30L	C [auth E]	215	Homo sapiens	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

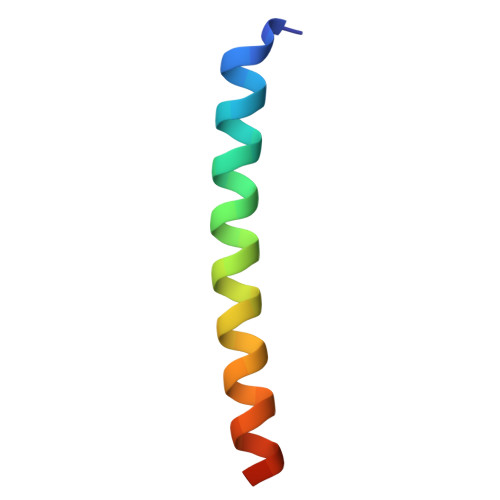

LA-PTH	D [auth L]	36	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for F5GZD9 (Homo sapiens) Explore F5GZD9  Go to UniProtKB:  F5GZD9
GTEx:  ENSG00000087494

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

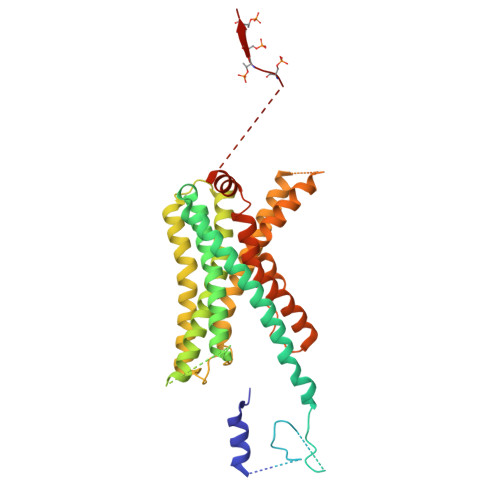

Parathyroid hormone/parathyroid hormone-related peptide receptor	E [auth R]	482	Homo sapiens	Mutation(s): 0  Gene Names: PTH1R, PTHR, PTHR1
UniProt & NIH Common Fund Data Resources
Find proteins for Q03431 (Homo sapiens) Explore Q03431  Go to UniProtKB:  Q03431
PHAROS:  Q03431 GTEx:  ENSG00000160801

Small Molecules

Modified Residues  2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
SEP	E [auth R]	L-PEPTIDE LINKING	C3 H8 N O6 P		SER
TPO	E [auth R]	L-PEPTIDE LINKING	C4 H10 N O6 P		THR

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.07 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-09-10
Deposition Author(s): Zhao, L., Yuan, Q.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-09-10
  Type: Initial release
