9LT6 | pdb_00009lt6

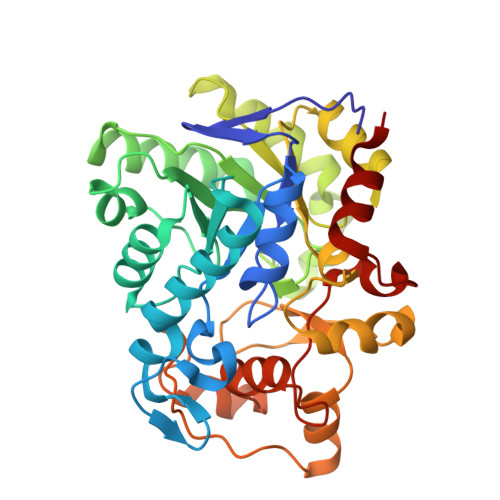

Crystal structure of dehydrogenase/isomerase FabX from Helicobacter pylori in complex with inhibitor 21


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.254 (Depositor), 0.256 (DCC)
  • R-Value Work:
    0.220 (Depositor), 0.221 (DCC)
  • R-Value Observed:
    0.222 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Discovery of 1,3,4-Thiadiazole Sulfonamide-Based Potent Inhibitors against the Unsaturated Fatty Acid Synthase FabX of Helicobacter pylori.

Ruan, X.Zhang, L.Dong, L.Wang, Y.Zeng, L.Yang, M.Bi, H.Feng, M.Zhang, L.Zhou, L.

(2025) J Med Chem 68: 17175-17188

  • DOI: https://doi.org/10.1021/acs.jmedchem.5c00654
  • Primary Citation of Related Structures:
    9LT5, 9LT6, 9LT7, 9LT8, 9LWW

  • PubMed Abstract:

    Unsaturated fatty acids (UFAs) are essential for the membrane function in most bacteria. In Helicobacter pylori ( H. pylori ), a gastric pathogen, UFA biosynthesis depends on the bifunctional dehydrogenase/isomerase FabX, a promising target against H. pylori . Herein, we report the first FabX inhibitor, P61G11 (compound 1 , IC 50 = 3.7 ± 0.2 μM), identified via high-throughput screening and featuring a 1,3,4-thiadiazole sulfonamide scaffold. The costructure of FabX- 1 reveals occupancy of the L-shaped substrate-binding tunnel via hydrophobic interactions and hydrogen bonds. Structure-based optimization led to more potent derivatives, among which compound 47 showed potent inhibition (IC 50 = 0.128 ± 0.002 μM), representing a 29-fold improvement. Compound 47 also demonstrated strong in vitro antibacterial activity (MIC = 0.5-1 μg/mL), when combined with membrane permeabilizers, efflux pump inhibitors, and clarithromycin, and exhibited narrow-spectrum efficacy against H. pylori , providing a novel strategy for anti- H. pylori therapy.


  • Organizational Affiliation
    • School of Pharmacy, Fudan University, Shanghai 201203, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
2-nitropropane dioxygenase363Helicobacter pyloriMutation(s): 0
Gene Names: BB393_03935C2840_03950C2842_03950DD776_04195ECC12_03705SE88_03940
UniProt
Find proteins for A0A0B2E3F3 (Helicobacter pylori)
Explore A0A0B2E3F3
Go to UniProtKB:  A0A0B2E3F3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0B2E3F3
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.254 (Depositor), 0.256 (DCC)
  • R-Value Work:  0.220 (Depositor), 0.221 (DCC)
  • R-Value Observed: 0.222 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 46.88α = 90
b = 48.41β = 93.15
c = 75.433γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-3000data scaling
HKL-3000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China22477077

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
