9LGD | pdb_00009lgd

wild-type bovine ABCC1 under an active turnover conformation with unhydrolyzed ATP bound and hydrolyzed ADP released

• PDB DOI: https://doi.org/10.2210/pdb9LGD/pdb
• EM Map EMD-63062: EMDB EMDataResource

• Classification: PROTEIN TRANSPORT
• Organism(s): Bos taurus
• Expression System: Spodoptera frugiperda
• Mutation(s): No
• Membrane Protein: Yes  MemProtMD


• Deposited: 2025-01-10 Released: 2025-10-01
• Deposition Author(s): Sun, P.P., Liu, K.X., Gao, P.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.29 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

wild-type bovine ABCC1 under an active turnover conformation with unhydrolyzed ATP bound and hydrolyzed ADP released

Sun, P.P., Liu, K.X., Gao, P.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 175.54 kDa
• Atom Count: 10,856
• Modeled Residue Count: 1,362
• Deposited Residue Count: 1,558
• Unique protein chains: 1

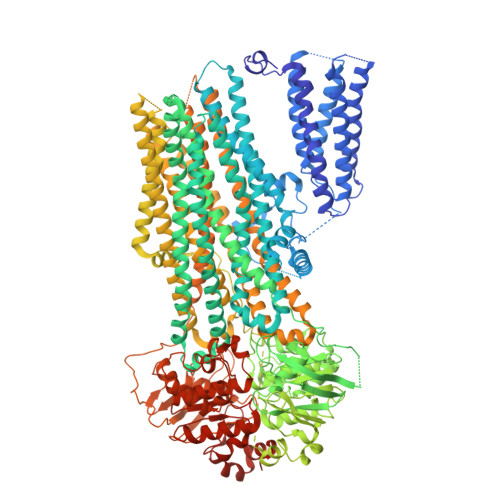

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Multidrug resistance-associated protein 1	A	1,558	Bos taurus	Mutation(s): 0  Gene Names: ABCC1, MRP1 EC: 7.6.2.2 (PDB Primary Data), 7.6.2.3 (PDB Primary Data) Membrane Entity: Yes
UniProt
Find proteins for Q8HXQ5 (Bos taurus) Explore Q8HXQ5  Go to UniProtKB:  Q8HXQ5

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ATP (Subject of Investigation/LOI)	B [auth A]	ADENOSINE-5'-TRIPHOSPHATE C10 H16 N5 O13 P3 ZKHQWZAMYRWXGA-KQYNXXCUSA-N
MG (Subject of Investigation/LOI)	C [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.29 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-01
Deposition Author(s): Sun, P.P., Liu, K.X., Gao, P.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-10-01
  Type: Initial release
