9LCX | pdb_00009lcx

Inactive TOD6 with AC DNA substrate


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.18 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Computational design of a high-precision mitochondrial DNA cytosine base editor.

Mi, L.Li, Y.X.Lv, X.Wan, Z.L.Liu, X.Zhang, K.Li, H.Yao, Y.Zhang, L.Xu, Z.Zhuang, X.Ji, K.Jiang, M.Wang, Y.Lu, P.

(2025) Nat Struct Mol Biol 32: 2575-2586

  • DOI: https://doi.org/10.1038/s41594-025-01714-2
  • Primary Citation of Related Structures:
    9LCX, 9LCY, 9LCZ, 9LD0, 9LD1

  • PubMed Abstract:

    Bystander editing remains a major limitation of current base editors, hindering their precision and therapeutic potential. Here, we present a de novo protein design strategy that creates a structurally rigid interface between a DNA-binding TALE domain and a cytosine deaminase, forming a unified editing module termed TALE-oriented deaminase (TOD). Cryo-EM analysis of TOD-DNA complexes confirms that this precise spatial architecture tightly restricts the deaminase activity window, thereby minimizing unwanted deamination. To further enhance editing specificity, we develop a split version, termed DdCBE-TOD, which virtually eliminates off-target editing. As a proof of concept, we apply DdCBE-TOD to generate a mitochondrial disease mouse model and to correct a pathogenic mutation associated with MERRF syndrome in patient-derived cells, achieving single-nucleotide precision. This work introduces a generalizable and computationally guided approach for ultra-precise base editing, offering a promising platform for both mechanistic studies and therapeutic correction of single-nucleotide mutations.


  • Organizational Affiliation
    • State Key Laboratory of Gene Expression, Research Center for Industries of the Future, School of Life Sciences, Westlake University, Hangzhou, China.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

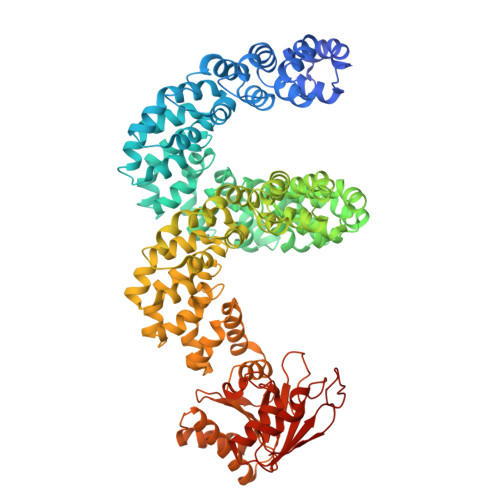

Inactivate TOD6886Burkholderia cenocepaciaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains LengthOrganismImage

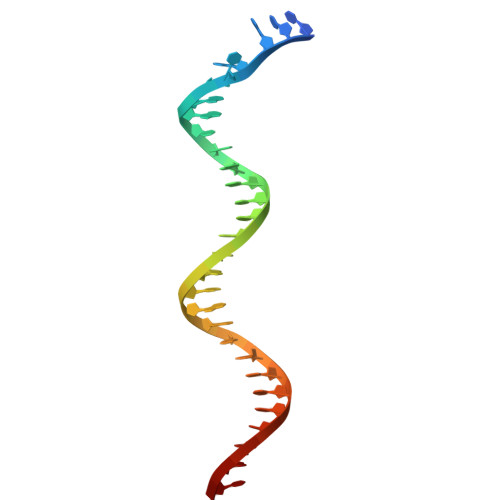

AC DNA substrate reverse strandB [auth C]31synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains LengthOrganismImage

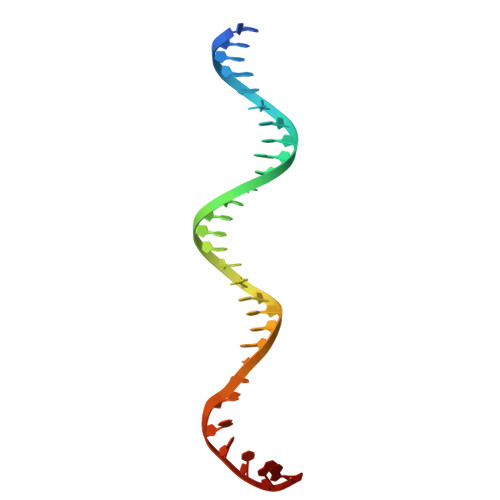

AC DNA substrate forward strandC [auth B]31synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.18 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2-5419

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2020YFA0909200
Ministry of Education (MoE, China)China2024M762947

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-19
    Type: Initial release
  • Version 1.1: 2025-11-26
    Changes: Data collection, Database references
  • Version 1.2: 2025-12-03
    Changes: Data collection, Database references
  • Version 1.3: 2025-12-31
    Changes: Data collection, Database references
