9KVA | pdb_00009kva

ECR CK PROTEIN

PDB DOI: https://doi.org/10.2210/pdb9KVA/pdb

Classification: OXIDOREDUCTASE
Organism(s): Mesorhizobium metallidurans
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-12-04 Released: 2025-12-10
Deposition Author(s): Kulakman, C., DeMirci, H., Wakatsuki, S., Mathews, I.
Funding Organization(s): Department of Energy (DOE, United States), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.40 Å
R-Value Free:
0.185 (Depositor), 0.185 (DCC)
R-Value Work:
0.148 (Depositor), 0.147 (DCC)
R-Value Observed:
0.150 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

ECR CK PROTEIN

Kulakman, C., DeMirci, H., Wakatsuki, S., Mathews, I.

To be published.

Macromolecule Content

Total Structure Weight: 89.54 kDa
Atom Count: 6,775
Modeled Residue Count: 820
Deposited Residue Count: 820
Unique protein chains: 1

Macromolecules

Find similar proteins by:

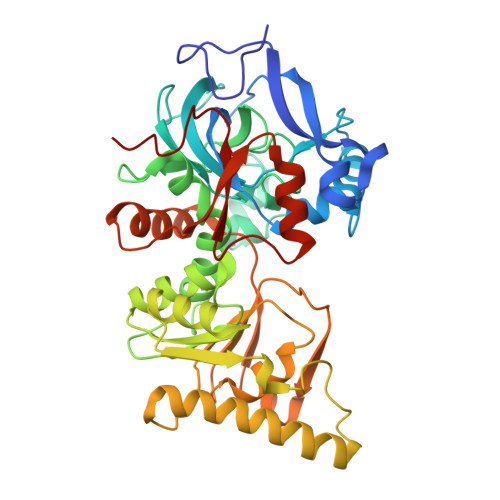

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative crotonyl-CoA reductase	A, B	410	Mesorhizobium metallidurans	Mutation(s): 0 Gene Names: MESS2_300088
UniProt
Find proteins for M5EQJ7 (Mesorhizobium metallidurans STM 2683) Explore M5EQJ7 Go to UniProtKB: M5EQJ7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	M5EQJ7
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
P6G Query on P6G Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	HEXAETHYLENE GLYCOL C₁₂ H₂₆ O₇ IIRDTKBZINWQAW-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
EPE Query on EPE Download:Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain E [auth A] MOL2 format, chain H [auth B] MOL2 format, chain E [auth A] mmCIF format, chain H [auth B] mmCIF format, chain E [auth A]	E [auth A], H [auth B]	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID C₈ H₁₈ N₂ O₄ S JKMHFZQWWAIEOD-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain H [auth B] Interactions & Density Focus chain E [auth A] Focus chain H [auth B]
TRS (Subject of Investigation/LOI) Query on TRS Download:Ideal Coordinates CCD File SDF format, chain G [auth B] MOL2 format, chain G [auth B] mmCIF format, chain G [auth B]	G [auth B]	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL C₄ H₁₂ N O₃ LENZDBCJOHFCAS-UHFFFAOYSA-O		Interactions Focus chain G [auth B] Interactions & Density Focus chain G [auth B]
PEG (Subject of Investigation/LOI) Query on PEG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.40 Å
R-Value Free: 0.185 (Depositor), 0.185 (DCC)
R-Value Work: 0.148 (Depositor), 0.147 (DCC)
R-Value Observed: 0.150 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 187.99	α = 90
b = 104.31	β = 91.59
c = 44.81	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
XSCALE	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-10

Deposition Author(s):

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	DE-AC02-76SF00515
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	P30GM133894
