9KUZ | pdb_00009kuz

Crystal Structure of the Kv7.1 C-terminal Domain in Complex with Calmodulin disease mutation D134H

• PDB DOI: https://doi.org/10.2210/pdb9KUZ/pdb

• Classification: METAL BINDING PROTEIN
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2024-12-04 Released: 2025-12-10
• Deposition Author(s): Liu, C.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.07 Å
• R-Value Free:
  0.268 (Depositor), 0.270 (DCC)
• R-Value Work:
  0.215 (Depositor), 0.216 (DCC)
• R-Value Observed:
  0.219 (Depositor)

Starting Model: experimental

Literature

Crystal Structure of the Kv7.1 C-terminal Domain in Complex with Calmodulin disease mutation D134H

Liu, C.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 49.79 kDa
• Atom Count: 3,151
• Modeled Residue Count: 408
• Deposited Residue Count: 430
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

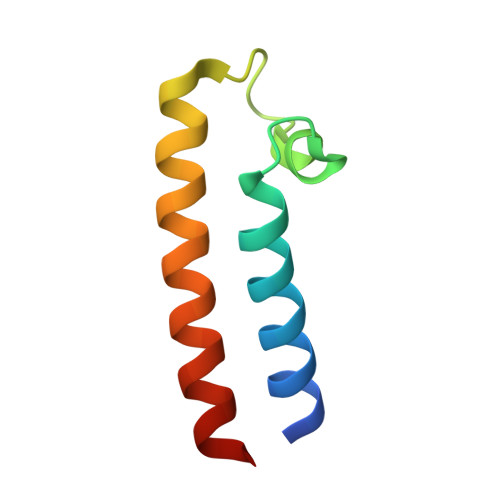

KCNQ1 helixAB	A, C [auth E]	66	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

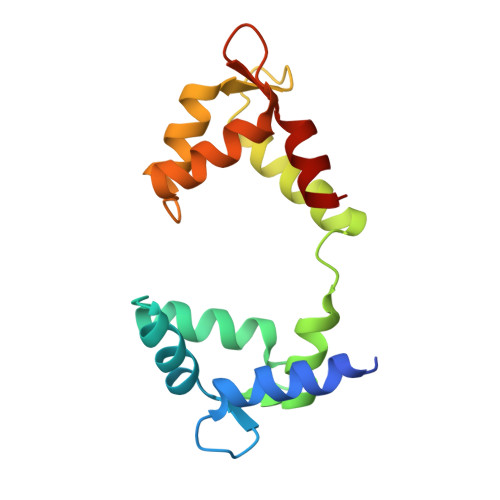

Calmodulin-1	B [auth C], D [auth F]	149	Homo sapiens	Mutation(s): 1  Gene Names: CALM1, CALM, CAM, CAM1
UniProt & NIH Common Fund Data Resources
Find proteins for P0DP23 (Homo sapiens) Explore P0DP23  Go to UniProtKB:  P0DP23
PHAROS:  P0DP23 GTEx:  ENSG00000198668

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CA	E [auth C], F [auth C], G [auth F], H [auth F]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.07 Å
• R-Value Free:  0.268 (Depositor), 0.270 (DCC)
• R-Value Work:  0.215 (Depositor), 0.216 (DCC)
• R-Value Observed: 0.219 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 39.87	α = 90
b = 84.73	β = 90
c = 125.13	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PHENIX	refinement
HKL-3000	data reduction
HKL-3000	data scaling
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-12-10
Deposition Author(s): Liu, C.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-12-10
  Type: Initial release
