9KRU | pdb_00009kru

B. bacteriovorus MaeB holo form


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.59 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Divergent acetyl-CoA binding modes mediate allosteric inhibition of bacterial hybrid-type malic enzymes.

Sassa, M.Yamato, H.Tanino, H.Fukuda, Y.Inoue, T.

(2025) J Biological Chem 301: 110887-110887

  • DOI: https://doi.org/10.1016/j.jbc.2025.110887
  • Primary Citation of Related Structures:
    9KRT, 9KRU, 9KRV, 9KRW, 9L4N, 9M2I, 9M35

  • PubMed Abstract:

    Malic enzymes (MEs) function as the bypass enzyme in the Krebs cycle and have attracted attention in a wide range of scientific and industrial fields. In contrast to eukaryotic MEs, there is currently a lack of understanding of the structure-function relationships of prokaryotic MEs. Especially, little is known about an allosteric inhibition mechanism by an effector ligand in multi-domain MEs called hybrid-type MEs. Many bacterial hybrid-type MEs are inhibited by acetyl-CoA; however, the proposed acetyl-CoA binding site is not conserved. Here, we determined crystal and cryo-EM structures of hybrid-type MEs from Escherichia coli (EcMaeB) and Bdellovibrio bacteriovorus including complexes with acetyl-CoA. They reveal that these MaeBs have totally different acetyl-CoA binding sites and show different overall structural changes. However, the binding acetyl-CoA molecules induce identical movements of several α helices near the ligand both in EcMaeB and BbMaeB. Enzymatic assays proved that residues at the acetyl-CoA binding site are needed for inhibition. Phylogenetic analysis uncovered that EcMaeB and BbMaeB are classified into different clades of hybrid-type MEs and that the amino acid residues at the acetyl-CoA binding sites in different clades have evolved exclusively from each other. These results not only provide insights into bacterial MEs but also expand our knowledge about allosteric regulation in enzymes.


  • Organizational Affiliation
    • Graduate School of Pharmaceutical Sciences, The University of Osaka, Suita, Japan.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

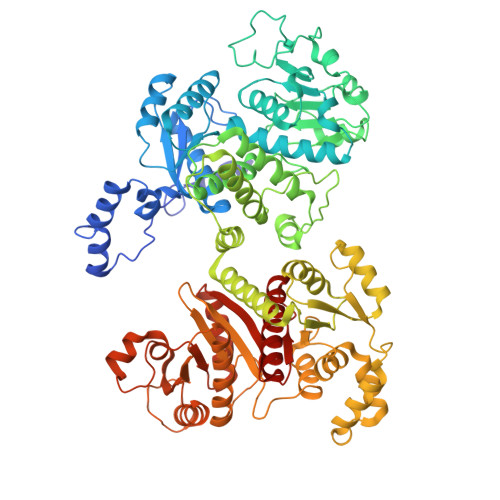

NADP-dependent malic enzyme776Bdellovibrio bacteriovorusMutation(s): 0
Gene Names: B9G79_09885
UniProt
Find proteins for A0A1Z3N8R4 (Bdellovibrio bacteriovorus)
Explore A0A1Z3N8R4
Go to UniProtKB:  A0A1Z3N8R4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A1Z3N8R4
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAP (Subject of Investigation/LOI)
Query on NAP

Download Ideal Coordinates CCD File
B [auth A]NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
C21 H28 N7 O17 P3
XJLXINKUBYWONI-NNYOXOHSSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.59 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-03
    Type: Initial release
  • Version 1.1: 2025-12-10
    Changes: Data collection, Database references
