9KLW | pdb_00009klw

Crystal structure of EGFR T790M, L858R mutant complexed with N-[4-[4-amino-6-ethynyl-5-(3-quinolyl)pyrrolo[2,3-d]pyrimidin-7-yl]norbornan-1-yl]pyrimidine-5-carboxamide

PDB DOI: https://doi.org/10.2210/pdb9KLW/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Spodoptera frugiperda
Mutation(s): Yes

Deposited: 2024-11-15 Released: 2025-09-24
Deposition Author(s): Suzuki, T., Kasuga, H., Yamamoto, F.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.67 Å
R-Value Free:
0.257 (Depositor), 0.255 (DCC)
R-Value Work:
0.197 (Depositor), 0.199 (DCC)
R-Value Observed:
0.200 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Discovery of TAS3351, a brain-penetrable 4th generation EGFR-TKI overcoming T790M and C797S resistant mutations.

Kasuga, H., Kataoka, Y., Yamamoto, F., Tsuji, S., Miyamoto, R., Suzuki, T., Mizuarai, S.

(2025) Res Sq

DOI: https://doi.org/10.21203/rs.3.rs-6573462/v1

Macromolecule Content

Total Structure Weight: 38.23 kDa
Atom Count: 2,458
Modeled Residue Count: 299
Deposited Residue Count: 330
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

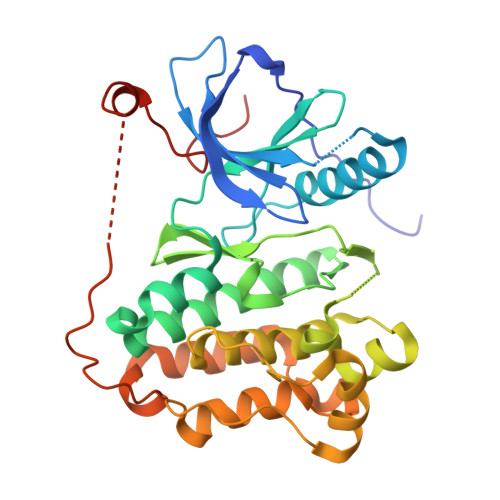

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Epidermal growth factor receptor	A	330	Homo sapiens	Mutation(s): 2 Gene Names: EGFR, ERBB, ERBB1, HER1 EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for P00533 (Homo sapiens) Explore P00533 Go to UniProtKB: P00533
PHAROS: P00533 GTEx: ENSG00000146648
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P00533
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1L53 (Subject of Investigation/LOI) Query on A1L53 Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	N-[4-[4-amino-6-ethynyl-5-(3-quinolyl)pyrrolo[2,3-d]pyrimidin-7-yl]norbornan-1-yl]pyrimidine-5-carboxamide C₂₉ H₂₄ N₈ O JTIOULFGKCXQAT-ISILISOKSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
DMS Query on DMS Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.67 Å
R-Value Free: 0.257 (Depositor), 0.255 (DCC)
R-Value Work: 0.197 (Depositor), 0.199 (DCC)
R-Value Observed: 0.200 (Depositor)

Space Group: I 2 3

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 145.989	α = 90
b = 145.989	β = 90
c = 145.989	γ = 90

Software Package:

Software Name	Purpose
autoPROC	data reduction
XDS	data reduction
autoPROC	data scaling
Aimless	data scaling
REFMAC	refinement

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-09-24

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-09-24
Type: Initial release
