9KHU | pdb_00009khu

O-glycosyltransferase from Schisandra chinensis

PDB DOI: https://doi.org/10.2210/pdb9KHU/pdb

Classification: PLANT PROTEIN
Organism(s): Schisandra chinensis
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-11-11 Released: 2025-11-19
Deposition Author(s): Bin, L., Bin, L.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free:
0.248 (Depositor), 0.250 (DCC)
R-Value Work:
0.184 (Depositor), 0.188 (DCC)
R-Value Observed:
0.190 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9KHU

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

O-glycosyltransferase from Schisandra chinensis

Bin, L.

To be published.

Macromolecule Content

Total Structure Weight: 51.71 kDa
Atom Count: 3,650
Modeled Residue Count: 434
Deposited Residue Count: 461
Unique protein chains: 1

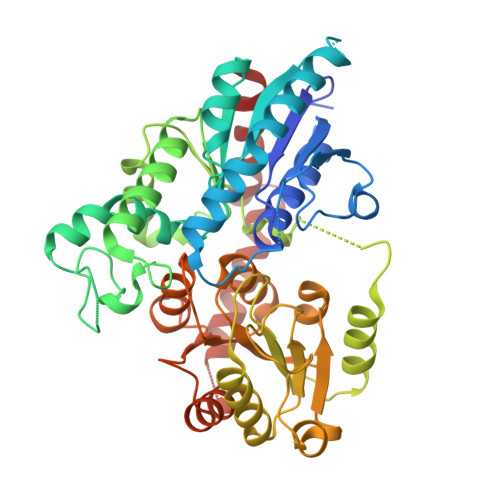

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
GT	A	461	Schisandra chinensis	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
UDP (Subject of Investigation/LOI) Query on UDP Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	URIDINE-5'-DIPHOSPHATE C₉ H₁₄ N₂ O₁₂ P₂ XCCTYIAWTASOJW-XVFCMESISA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.20 Å
R-Value Free: 0.248 (Depositor), 0.250 (DCC)
R-Value Work: 0.184 (Depositor), 0.188 (DCC)
R-Value Observed: 0.190 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 54.366	α = 90
b = 83.422	β = 90
c = 93.028	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-19

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-11-19
Type: Initial release
