9KFF | pdb_00009kff

Truncated Fzo1 with modified LB, transition-like state


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.12 Å
  • R-Value Free:
    0.243 (Depositor), 0.241 (DCC)
  • R-Value Work:
    0.201 (Depositor), 0.200 (DCC)
  • R-Value Observed:
    0.204 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

A special latch in yeast mitofusin guarantees mitochondrial fusion by stabilizing self-assembly.

Huang, S.J.Ma, D.F.Yu, C.Li, J.Tu, X.Huang, Z.Qi, Y.Ou, J.Y.Feng, J.X.Yu, B.Cao, Y.L.Yue, J.X.Hu, J.Li, M.Lu, Y.Yan, L.Gao, S.

(2025) Nat Commun 16: 9644-9644

  • DOI: https://doi.org/10.1038/s41467-025-64646-x
  • Primary Citation of Related Structures:
    9KFD, 9KFE, 9KFF

  • PubMed Abstract:

    The mitochondrion is a highly dynamic organelle, constantly undergoing fusion and fission, which are critical processes for the health of cells. Fusion of the outer mitochondrial membrane (OMM) is mediated by the mitofusins belonging to the dynamin superfamily of GTPases. Most eukaryotic organisms possess two cooperatively functioning mitofusins, but yeast has only one mitofusin (Fzo1). How Fzo1 solely catalyzes OMM fusion is unclear. Here, we present crystal structures of truncated Fzo1 (Fzo1 IM ) in different nucleotide-loading states and report a special mechanistic feature of Fzo1 through systematic functional studies. Differing from mammalian mitofusins, Fzo1 contains an extra latch bulge (LB) that is essential for the viability of yeast. Upon GTP loading, Fzo1 IM dimerizes via the GTPase domain and prefers the closed conformation. This state is then locked by the subsequent trans interaction mediated by the LB of each protomer, so that Fzo1 IM remains dimerized in the closed conformation even after GTP hydrolysis. This special mechanistic feature may be relevant to the previous observation that degradation of Fzo1 by the ubiquitin-proteasome system is required for mitochondrial fusion. Our study reveals how mitochondrial fusion in yeast is efficiently ensured with limited GTP consumption, which broadens current understanding of this fundamental biological process.


  • Organizational Affiliation
    • State Key Laboratory of Oncology in South China, Collaborative Innovation Center for Cancer Medicine, Sun Yat-sen University Cancer Center, Guangzhou, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

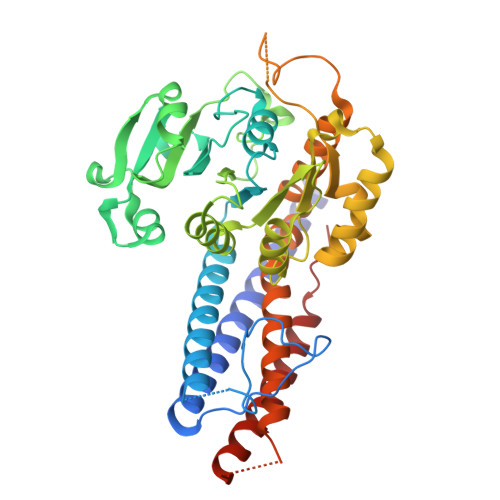

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Mitofusin FZO1457Saccharomyces cerevisiaeMutation(s): 0
Gene Names: FZO1YBR179CYBR1241
EC: 3.6.5
UniProt
Find proteins for P38297 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38297
Go to UniProtKB:  P38297
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38297
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GDP (Subject of Investigation/LOI)
Query on GDP

Download Ideal Coordinates CCD File
B [auth A]GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
MES
Query on MES

Download Ideal Coordinates CCD File
F [auth A]2-(N-MORPHOLINO)-ETHANESULFONIC ACID
C6 H13 N O4 S
SXGZJKUKBWWHRA-UHFFFAOYSA-N
BEF (Subject of Investigation/LOI)
Query on BEF

Download Ideal Coordinates CCD File
C [auth A]BERYLLIUM TRIFLUORIDE ION
Be F3
OGIAHMCCNXDTIE-UHFFFAOYSA-K
K (Subject of Investigation/LOI)
Query on K

Download Ideal Coordinates CCD File
E [auth A]POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
D [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.12 Å
  • R-Value Free:  0.243 (Depositor), 0.241 (DCC)
  • R-Value Work:  0.201 (Depositor), 0.200 (DCC)
  • R-Value Observed: 0.204 (Depositor)
Space Group: P 65 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 77.115α = 90
b = 77.115β = 90
c = 283.551γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China2320103002
National Natural Science Foundation of China (NSFC)China82173098

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-27
    Type: Initial release
  • Version 1.1: 2025-09-03
    Changes: Structure summary
  • Version 1.2: 2025-11-26
    Changes: Database references
